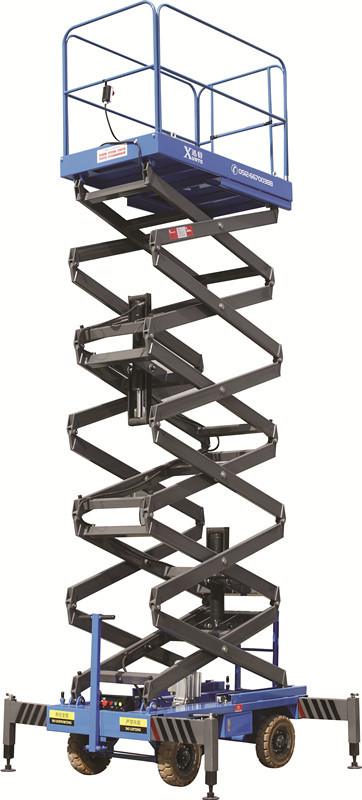

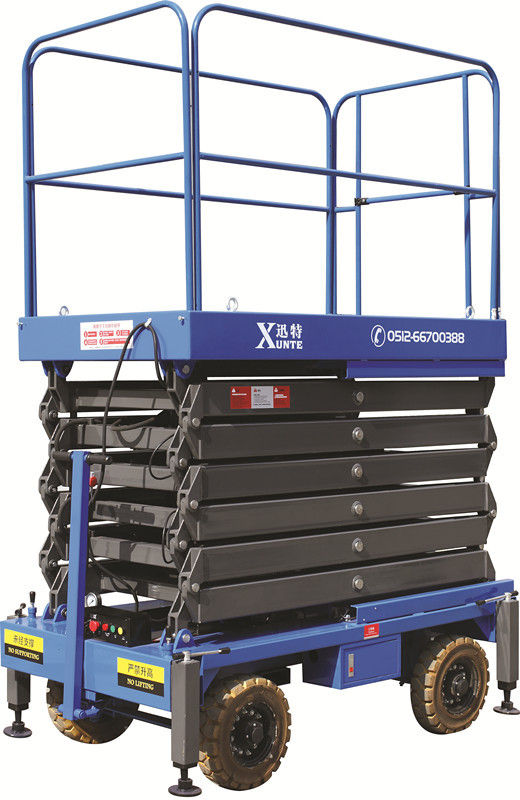

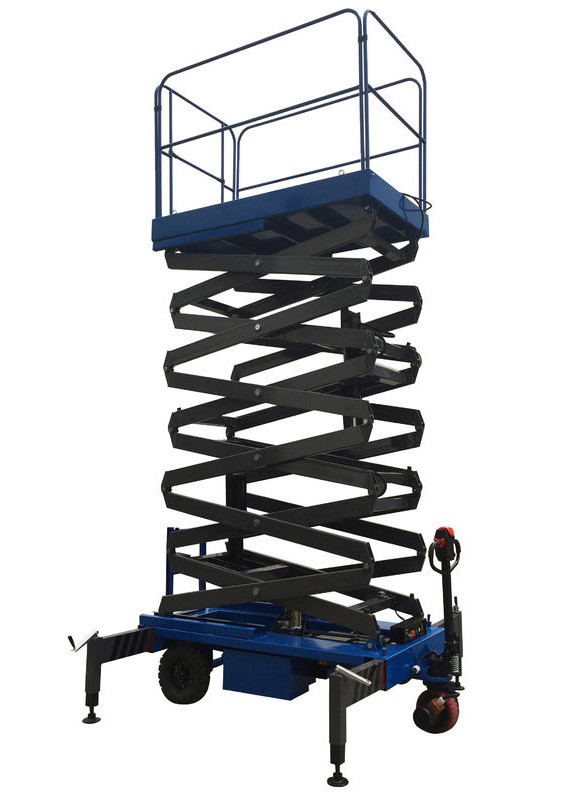

Working Height 14m Mobile Scissor Lift 450Kg Loading Capacity of Manual Pushing and Rain-proof Control Cabinet

Working Height 14m Mobile Scissor Lift 450Kg Loading Capacity of Manual Pushing and Rain-proof Control Cabinet

    • Working Height 14m Mobile Scissor Lift 450Kg Loading Capacity of Manual Pushing and Rain-proof Control Cabinet
    • Working Height 14m Mobile Scissor Lift 450Kg Loading Capacity of Manual Pushing and Rain-proof Control Cabinet
    • Working Height 14m Mobile Scissor Lift 450Kg Loading Capacity of Manual Pushing and Rain-proof Control Cabinet
  • Working Height 14m Mobile Scissor Lift 450Kg Loading Capacity of Manual Pushing and Rain-proof Control Cabinet

    Product Details:

    Place of Origin: CHINA
    Brand Name: XUNTE
    Certification: CE
    Model Number: SJY0.5-12

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wrapped in pallets/ wooden case
    Delivery Time: 30 days after receipt of deposit
    Supply Ability: 100 sets per month
    Contact Now
    Detailed Product Description
    Working Height: 14m Platform Height: 12m
    Loading Capacity: 500Kg Platform Size: 2450*1350mm
    Power Source: 220V 50Hz Or 380V 50 Hz Color: Customizable
    Motor Power: 3Kw Lifting Time: 90s
    Weight: 1850kg



    Working Height 14m Mobile Scissor Lift 450Kg Loading Capacity of Manual Pushing and Rain-proof Control Cabinet​





    Description:



    Mobile Scissor Lift is an access platform which enables people to work in the height. For this machine,the maximum working height is14m. The platform size of this model is 2.45*1.35 and the rated load is 500Kg, so that it can allow at least four persons to work on the platform at the same time, and they can bring working tools along with them.If needed, the platform can have AC power supply.



    Applications:



    Mobile Scissor Lift is commonly seen in the workshop or railway station or the shopping mall or the lobby of the hotel, it can be used to clean walls and windows, change lights, maintenance facilities or transport goods to a high place.



    Main Features:



    1. Pointing control of lifting up and down, when you move your hands the machine will stop lift or descend which enables you can stop at any height between its maximum platform height and closed height.

    2. The scissor arm we use is made up of high strength manganese rectangular steel

    3. Platform surface is made up of anti-skid checkered steel plate

    4. Both platform control panels and ground control panels are available in the machine to meet different using purposes.

    5. Fine grinding cylinder in good sealing performance is used in the machine, as the lifting and descending of the machines are based on the cylinder piston motion.

    6. Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas.



    Safety Precaution:



    1. The operation voltage on the platform is 24V which will not bring danger to the worker

    2. Emergency stop button on the platform and ground control panels.

    3. We provide with Auxiliary platform lowering system to let worker lower the machine when power falls

    4. Telescopic legs on the chassis to adjust the horizontal level before using.

    5. Hose burst valve safety

    6. Rain-proof designs electric cabinet can allow this machine to be used outdoors.

    7. Handrail on the platform to guarantee the worker will not fall down.



    Parameters:



    Loading Capacity 500kg
    Maximum Height 12000mm
    Minimum Height 1850mm
    Platform Size 2300*1300mm
    Lifting Power 3kw
    Power Voltage 1phase/220V/50HZ or 3phases/380V/50HZ
    Lifting Time 90s
    Cylinder Ф100(3Pcs)
    Gear Pump 6ml/r
    Total Weight 1850kg
    Measurement 2150*1590*1850mm



    Configurations:





    • Electric system: Schneider contactor, SANLICO button, CHNT electrical

    • Hydraulic System: Hycman brand power pack ,NOK sealing

    • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B

    • Platform Surface : Antiskid checkered plate

    • Tire: Ø500-8 Inflated tires

    • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose

     Optional Configuration:

    • Optional Power: AC220V, DC24/48V, Manual Hydraulic Pump
    • Oversea Brand Hydraulic System
    • Explosion-proof Electronic Control System
    • Solod Rubber Tire
    • Extended Working Platform
