Home ProductsMobile Scissor Lift

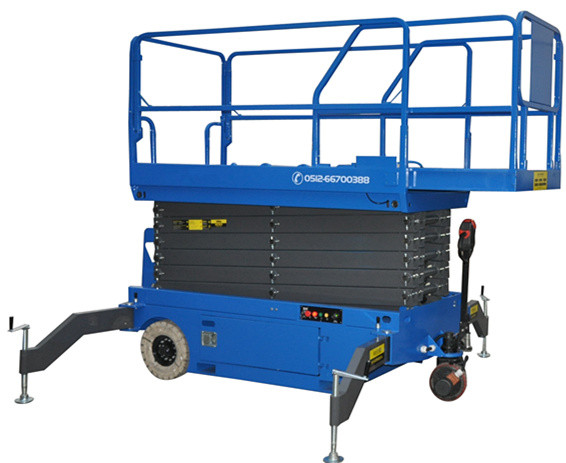

Man Lifting Use Mobile Scissor Lift 4.5m Max Heiht, Safe And Reliable

Man Lifting Use Mobile Scissor Lift 4.5m Max Heiht, Safe And Reliable

    • Man Lifting Use Mobile Scissor Lift 4.5m Max Heiht, Safe And Reliable
    • Man Lifting Use Mobile Scissor Lift 4.5m Max Heiht, Safe And Reliable
    • Man Lifting Use Mobile Scissor Lift 4.5m Max Heiht, Safe And Reliable
    • Man Lifting Use Mobile Scissor Lift 4.5m Max Heiht, Safe And Reliable
    • Man Lifting Use Mobile Scissor Lift 4.5m Max Heiht, Safe And Reliable
  • Man Lifting Use Mobile Scissor Lift 4.5m Max Heiht, Safe And Reliable

    Product Details:

    Place of Origin: China
    Brand Name: Xunte
    Model Number: XE45R

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wrapped in pallet
    Delivery Time: 30 days
    Supply Ability: 80 set per month
    Contact Now
    Detailed Product Description
    Color: Yellow Or Blue Material: High Strength Magnese Steel
    Name: Mobile Scissor Lift AC Voltage: As Per Customer Local Standard
    Warranty: 1 Year Voltage: 110v 220v 240v 380v Optional

    Man Lifting Use Mobile Scissor Lift 4.5m Max Heiht, Safe And Reliable







    Description:



    Advantages
    1. Our Mobile Scissor Lift is mainly used to lift workers to high place for repairs, maintenance,
    cleaning or installation and so on.
    2. You can move it easily to the right working area.
    3. The Mobile Scissor Lift can be also equipped with battery. With the battery, you don’t need
    to connect AC power.
    4. You can let the mobile scissor lift at some work areas without power.
    5. This type of mobile scissor lift can be installed with the driven wheel to move it by hands without any hardness.

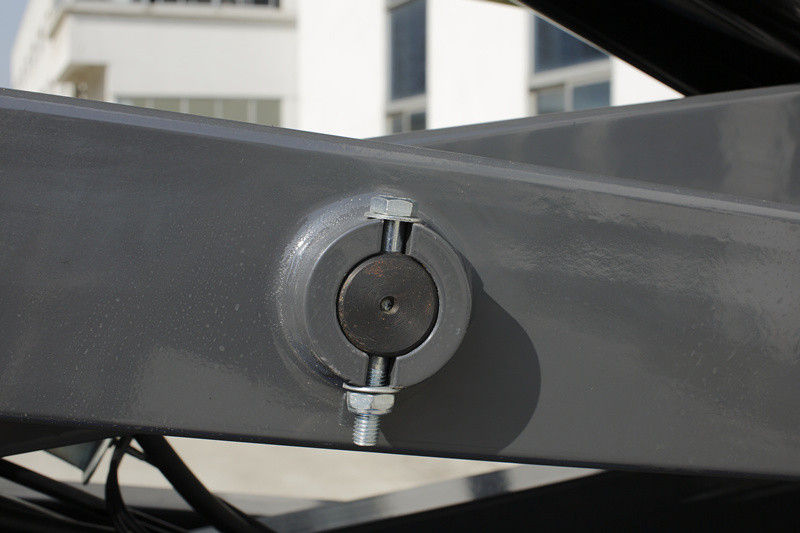

    It has scissor arm connection bar which increase the stability of the machine, and the width of the arm support has been risen from 4cm to 8cm, and it minimize the orbit of the machine at the max height, now thw orbit of the machine is 5cm which is much smaller than the standard 20cm.



    Quick Detail:



    Name Mobile Scissor Lift Brand Name Xunte
    Loading Capacity 300Kg Platform Height 4.5m
    Platform Size 1.65*0.75 Color Blue
    Lifting Power 1.5Kw Power Supply DC
    Driving Power 0.75Kw







    Optional Features:



    Extension Platfrom

    Loading Capacity: 150Kg

    Platform Size: 700*600mm





    Safety Precaution:



    1.The operation voltage on the platform is 24V

    2.Emergency stop button on the paltform and ground

    3.Auxiliary platform lowering

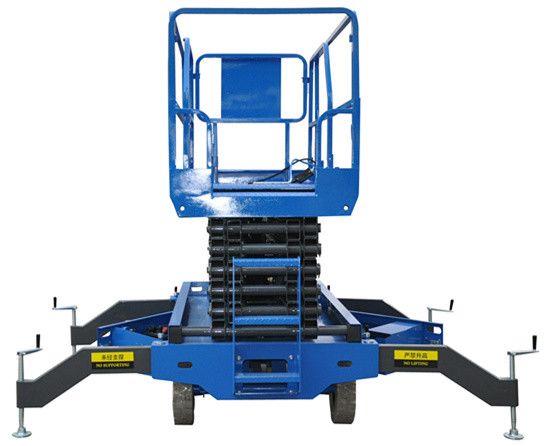

    4.Telescopic legs on the chassis

    5.Explosion-proof device for oil tube

    6.Low battery protector

    7. Charging Protection system





    Major Parameters

    • Model: XE45R
    • Loading Capacity     300kg
    • Maximum Height     4500mm
    • Minimum Height       1150mm
    • Platform Size            1650*750mm
    • Lifting Power             1.5kw
    • Power Voltage          1phase/220V/50HZ
    • Lifting Time               40s
    • Cylinder                    Ф80(1Pcs)
    • Gear Pump                6ml/r
    • Total Weight              450kg
    • Measurement            2050*950*1150mm







    Applications:



    1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

    2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.





    Why to choose Xunte Mobile Scissor Lift?

    · High Quality

    · Reasonable Price

    · Good after Service

    · 1 Year Warranty

    · More Than 10 Years Experience





    Communication with Customers



    A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

    B: The main difference is from the structure and the material

    The scissor lift is in scissor structure with steel material

    The aerial work platform is in mast structure with aluminum material



    A: How is that for quality control in your factory?

    B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

    1.Strict quality control system on the whole process of production

    2.Imported key arts to ensure the high quality of our products

    3.Advanced equipment and tools for examination and quality control

    4.100% strict examining products before shipment

    5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



    A: What is the delivery time for your goods?

    B: it is 30days after order confirmation



    A: What spare parts that you can offer?

    B: We provide following spare parts freely for your maintenance of the machine:

    Item Quantity
    Fuse 3
    "O" Rubber Seals Φ11 3
    Wrench 1
    Pressure Oiler 1
    Cross Screwdriver 1
    Straight Screwdrive 1



    A: How long is your quality guarantee period?

    B: We have one year warranty.
