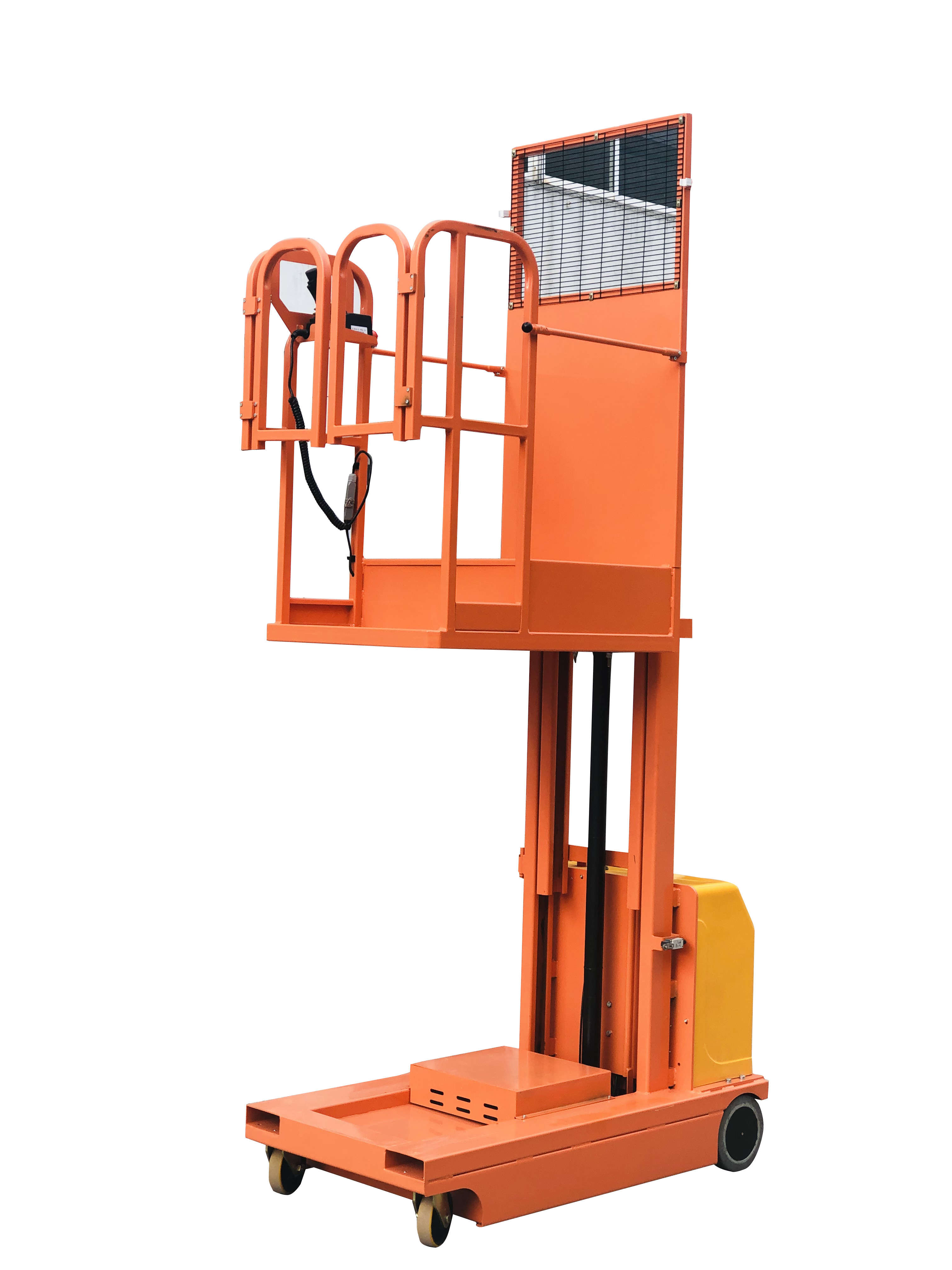

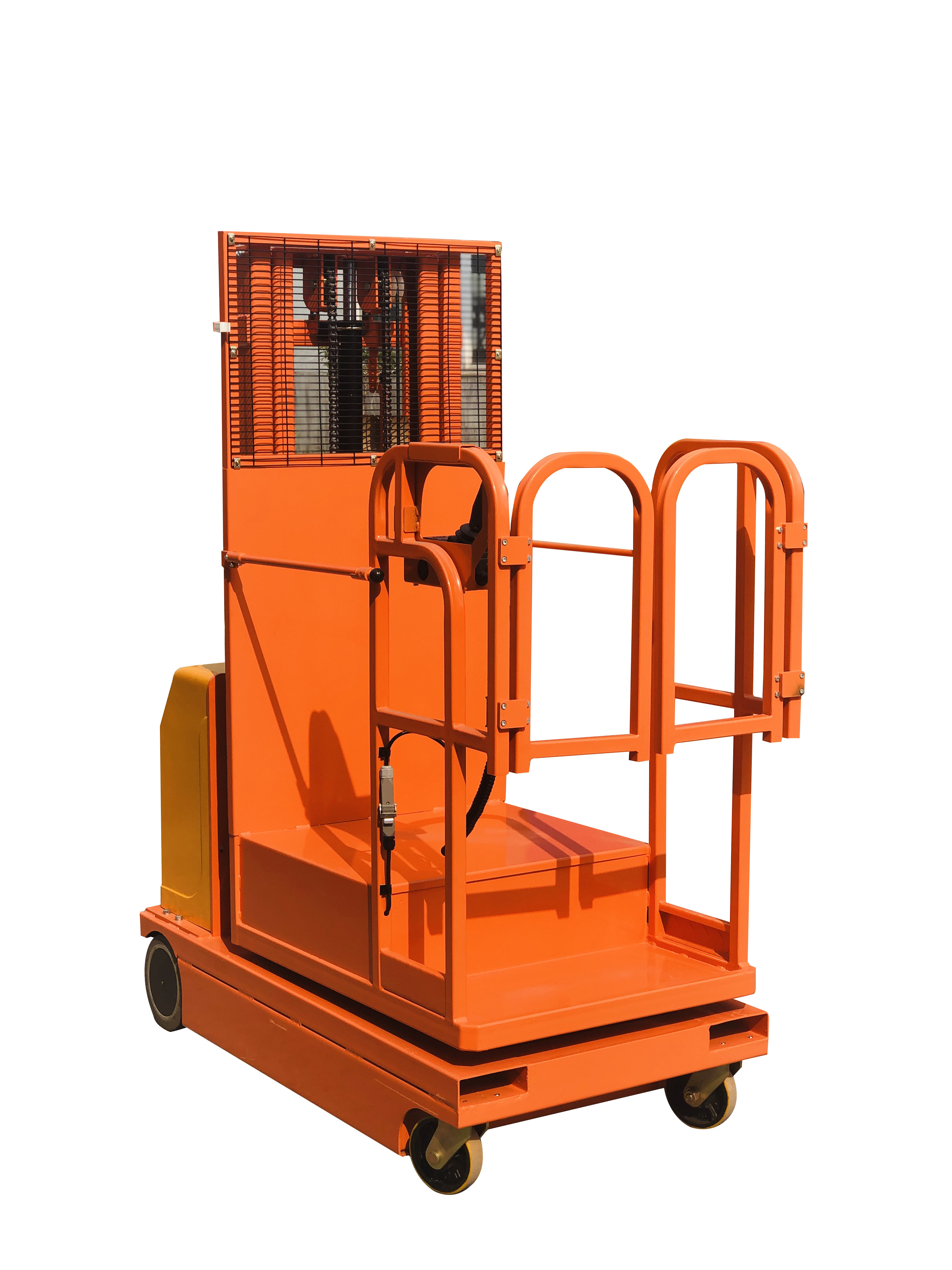

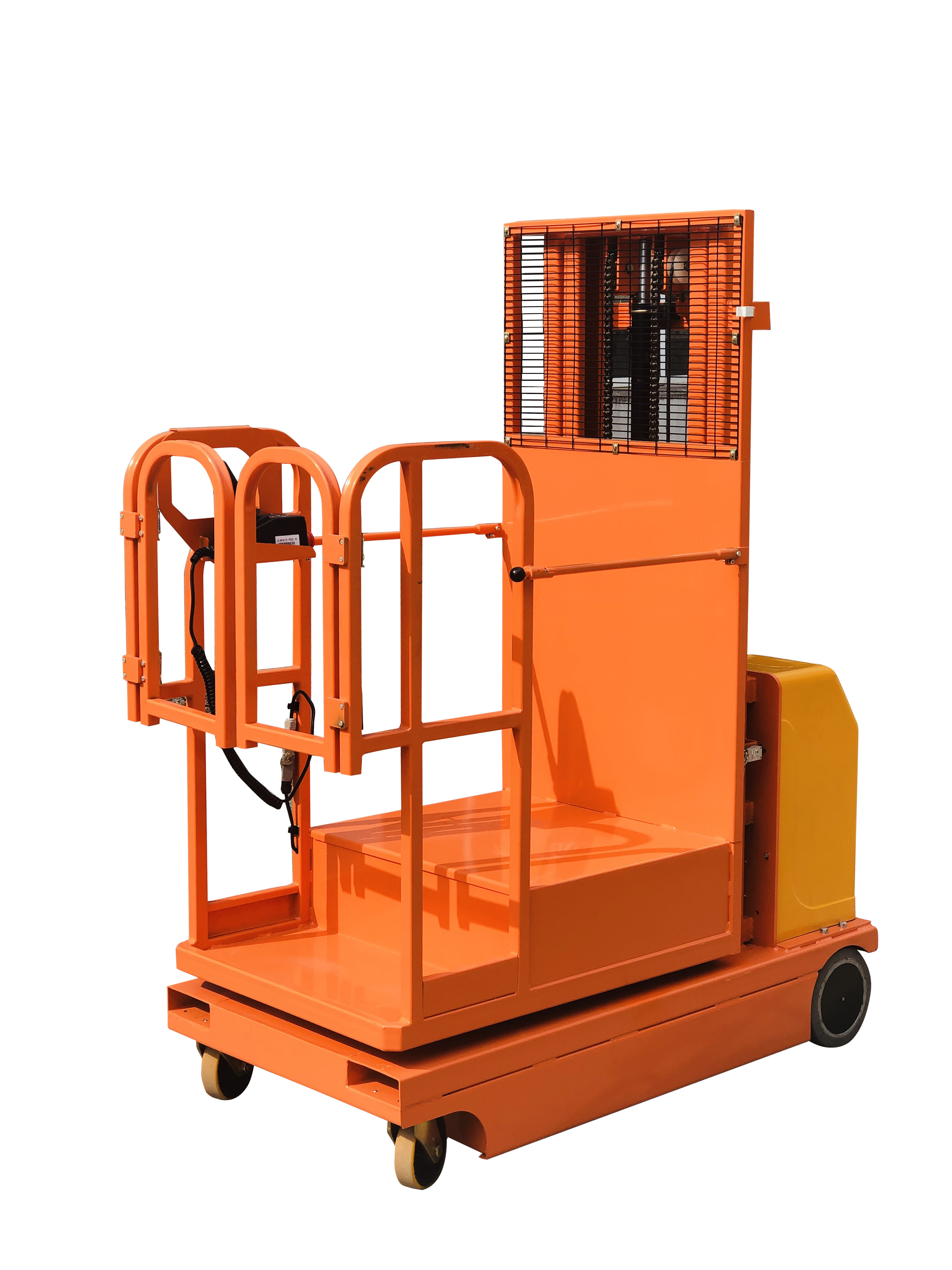

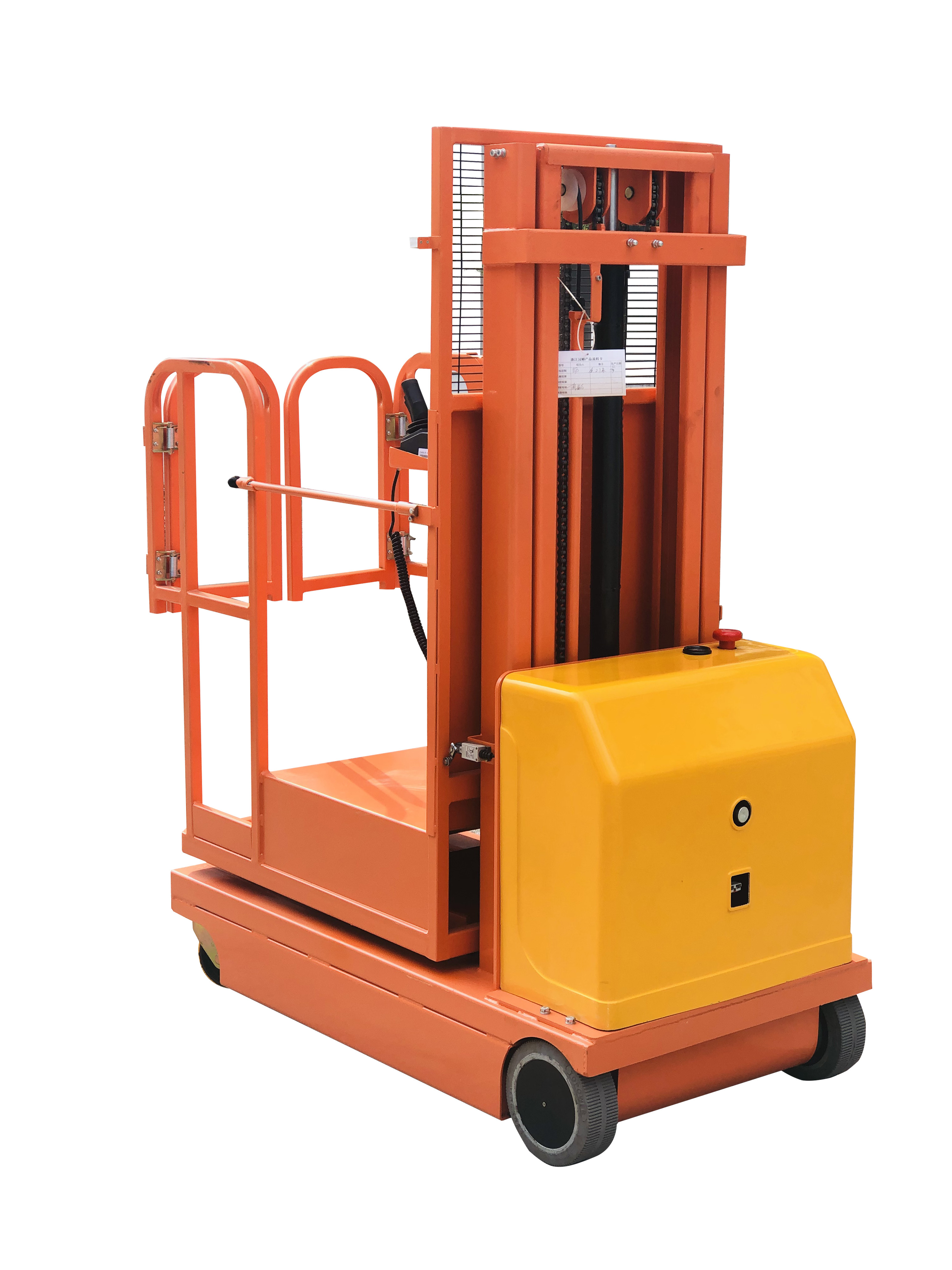

Electric Aerial Order Picker 300kg 3300mm Self - Propelled Powered In Orange

Electric Aerial Order Picker 300kg 3300mm Self - Propelled Powered In Orange

    • Electric Aerial Order Picker 300kg 3300mm Self - Propelled Powered In Orange
    • Electric Aerial Order Picker 300kg 3300mm Self - Propelled Powered In Orange
    • Electric Aerial Order Picker 300kg 3300mm Self - Propelled Powered In Orange
    • Electric Aerial Order Picker 300kg 3300mm Self - Propelled Powered In Orange
    • Electric Aerial Order Picker 300kg 3300mm Self - Propelled Powered In Orange
  • Electric Aerial Order Picker 300kg 3300mm Self - Propelled Powered In Orange

    Product Details:

    Place of Origin: China
    Brand Name: BestmaxLift
    Certification: CE ISO9001:2008 IPAF member
    Model Number: FSEP3-3.3

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: PVC Film Wrapped in Pallets or in wooden Case
    Delivery Time: 30 days after order confirmed
    Payment Terms: T/T or L/C
    Supply Ability: 100 sets/month
    Contact Now
    Detailed Product Description
    Max. Platform Height: 3.3m Max. Machine Height: 5m
    Loading Capacity: 300kg Platform Size: 600*640 Mm
    Lifting Motor: 24V/1.6kw Overall Weight: 450kg



    300kg 3300mm Self-Propelled Powered Electric Aerial Order Picker


    Product Description
    Self propelled aerial order picker is one kind of material handling equipment, it is mainly used to pick up cargo from rack. Operator can control moving, lifting and turning when stand on the platform, which highly improved the working efficiency.


    Application
    Self propelled Aerial Order Picker is widely used in the fields of hotel, building, warehouse, library, supermarket rack, workshop, elevator portal, supermarket, subway station, and other office building high altitude maintenance.


    Major Parameter

    Model FSEP3-2.7 FSEP3-3.3 FSEP3-4.0 FSEP3-4.5
    Loading Capacity 300Kg 300Kg 300Kg 300Kg
    Max. Platform Height 2.70m 3.30m 4.00m 4.50m
    Max. Machine Height 4.12m 5.00m 5.40m 6.00m
    Platform Size 600*640mm 600*640mm 600*640mm 600*640mm
    Stowed Length 1.53m 1.53m 1.62m 1.62m
    Stowed Width 0.70m 0.70m 0.70m 0.70m
    Stowed Height 1.83m 2.13m 1.84m 2.00m
    Min. Turning Radius 1600mm 1600mm 1600mm 1600mm
    Max. Climbing Capacity 15%-20% 15%-20% 15%-20% 15%-20%
    Ground Clearance 40mm 40mm 40mm 40mm
    Driving Motor 2*24V/0.4Kw 2*24V/0.4Kw 2*24V/0.4Kw 2*24V/0.4Kw
    Lift Motor 24V/1.6Kw 24V/1.6Kw 24V/1.6Kw 24V/1.6Kw
    Battery 2*12V/150Ah 2*12V/150Ah 2*12V/150Ah 2*12V/150Ah
    Charger 24V/15A 24V/15A 24V/15A 24V/15A
    Overall Weight 430Kg 450Kg 660Kg 680Kg


    Features:
    It moves and lifts all by battery power.
    Operator can control moving, lifting, turning and all other operations when stand on the platform.
    The light weight and maneuverability make it convenient to use in supermarket and warehouse.
    Intelligent self propelled control system.
    Zero-turn radius and compact design provide access in and around confined work areas.
    Low gravity center provides good stability.


    Configuration:
    Proportional controls
    Self-closing gate on platform
    Drivable at full height
    Non-marking tyre
    Automatic brake system
    Emergency lowering system
    Emergency stop button
    Cylinder holding valve
    Forklift pockets
    Charger protection
    Flashing beacon


    Structure Principle & Instruction
    1. Charging the battery before you use it. After charging up the battery, please cut off the power, then unplug it.
    2. Lift the platform to its top position to check that there is enough hydraulic oil in the system. Refill if necessary with YA-N32 or a similar oil.
    3. Turn the key and switch on, the display indicator shows. Choose the mode of rising, control the height by Joy-stick.
    4. Change the mode to walk. Also can be controlled by Joy-stick, the "rabbit" pattern indicates speed up, the "tortoise" pattern indicates speed down.


    Product Details
    Electric Aerial Order Picker 300kg 3300mm Self - Propelled Powered In Orange
    Handling & Storage
    The Self-propelled Aerial Order Picker must be stored in a horizontal position, in order to prevent the oil and the electrolyte will overflow, when transporting and storing.
    When stores it, it must be kept clean and keep far away from the damp and bad climate. The temperature of environment should not be more than 40ºC.
    If the battery isn't worked for a long time, it should be recharged timely.


    Company Introduction
    As a subsidiary company of Bestmax Heavy Industry Company Limited, Chenlift (Suzhou) Machinery Co Ltd. Is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.
    Electric Aerial Order Picker 300kg 3300mm Self - Propelled Powered In Orange
    Certificates
    Electric Aerial Order Picker 300kg 3300mm Self - Propelled Powered In Orange
    Customer Visiting
    Electric Aerial Order Picker 300kg 3300mm Self - Propelled Powered In Orange
    Other Related Products
    Electric Aerial Order Picker 300kg 3300mm Self - Propelled Powered In Orange

    A: How is that for quality control in your factory?
    B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
    1. Strict quality control system on the whole process of production
    2. Imported key arts to ensure the high quality of our products
    3. Advanced equipment and tools for examination and quality control
    4. 100% strict examining products before shipment
    5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.
