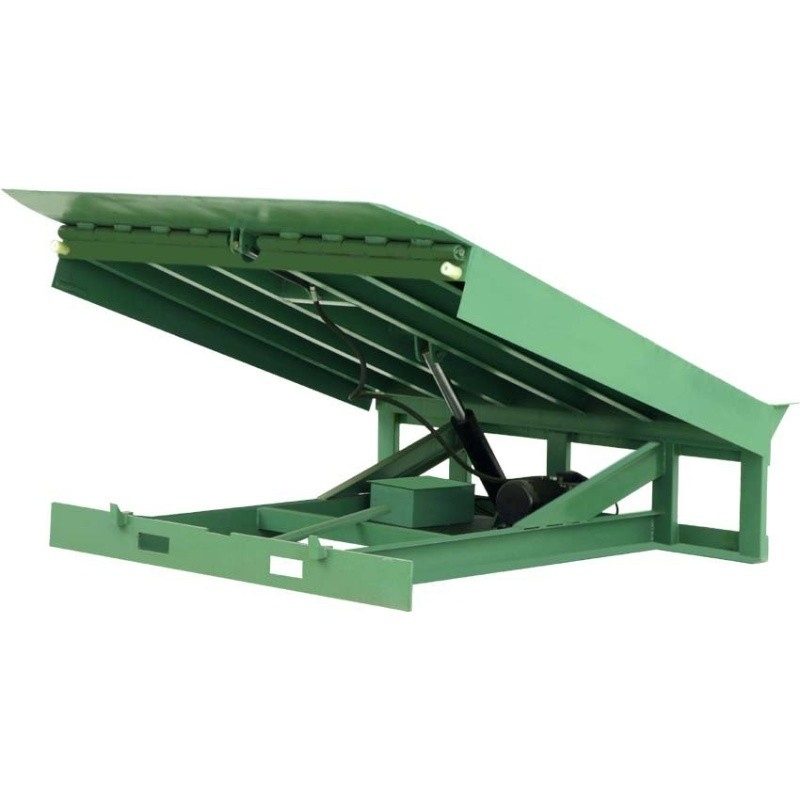

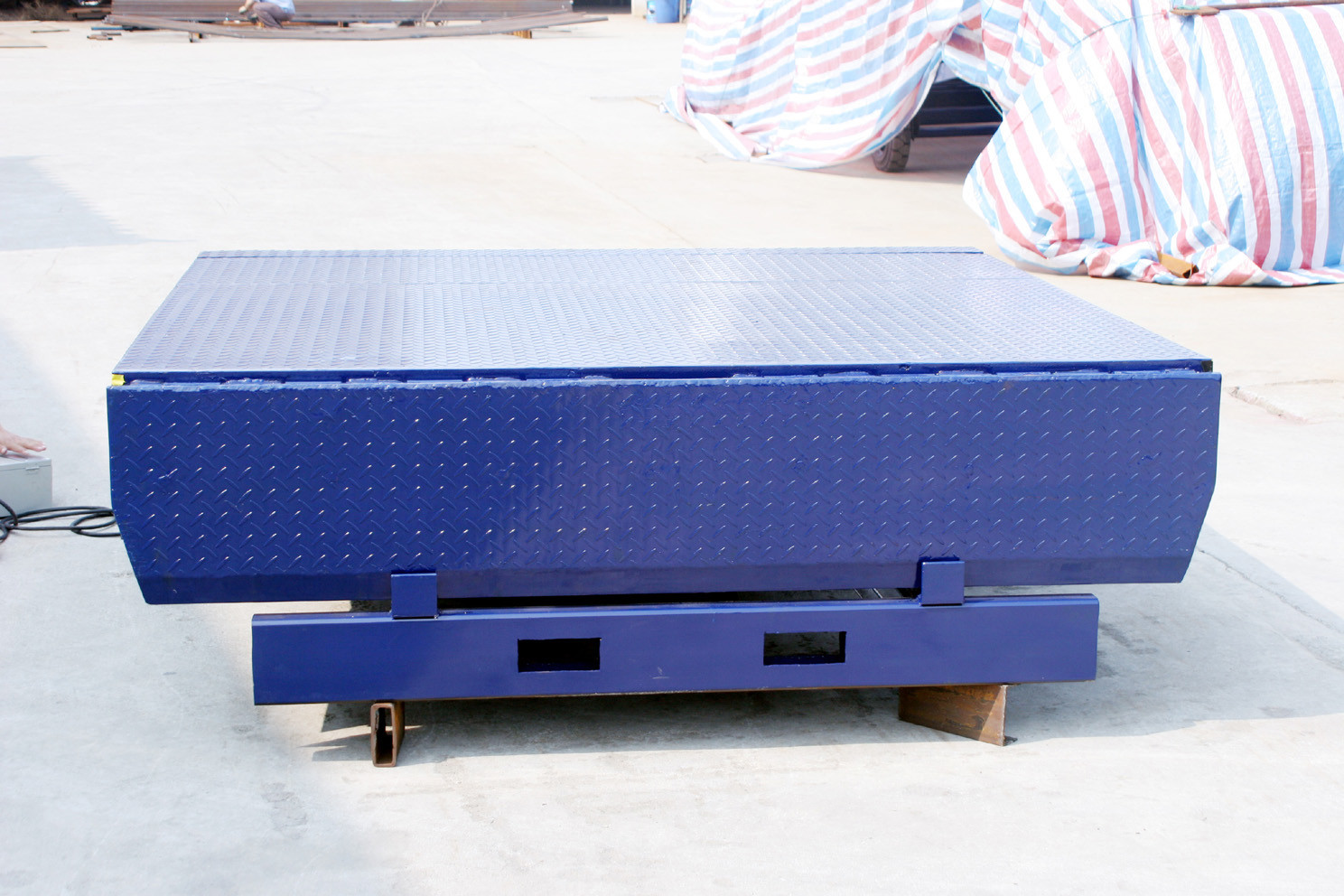

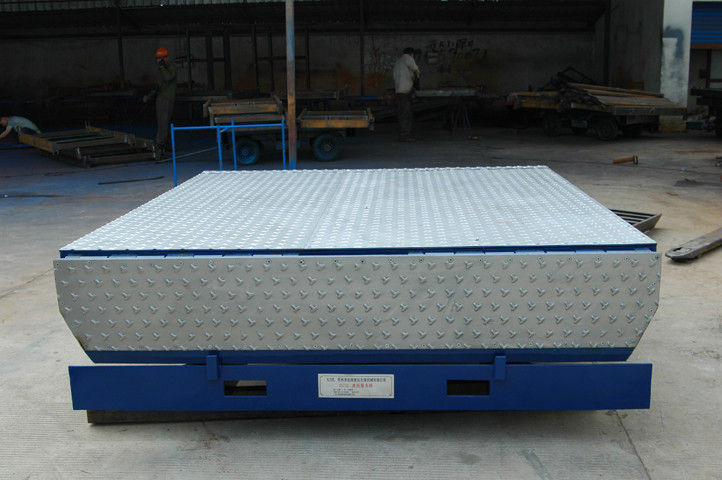

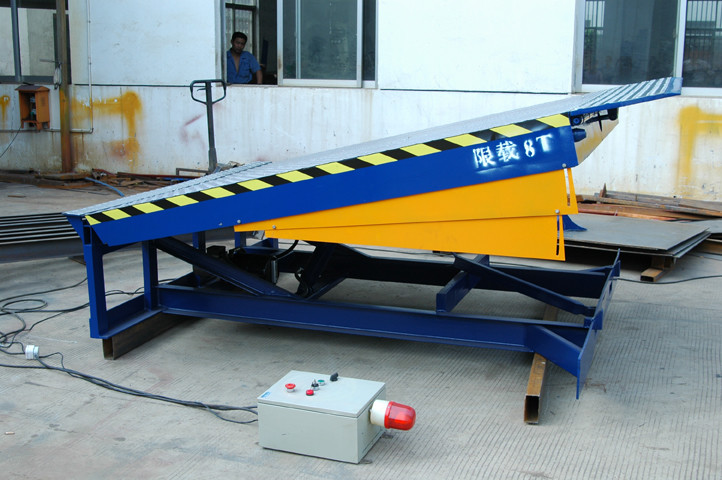

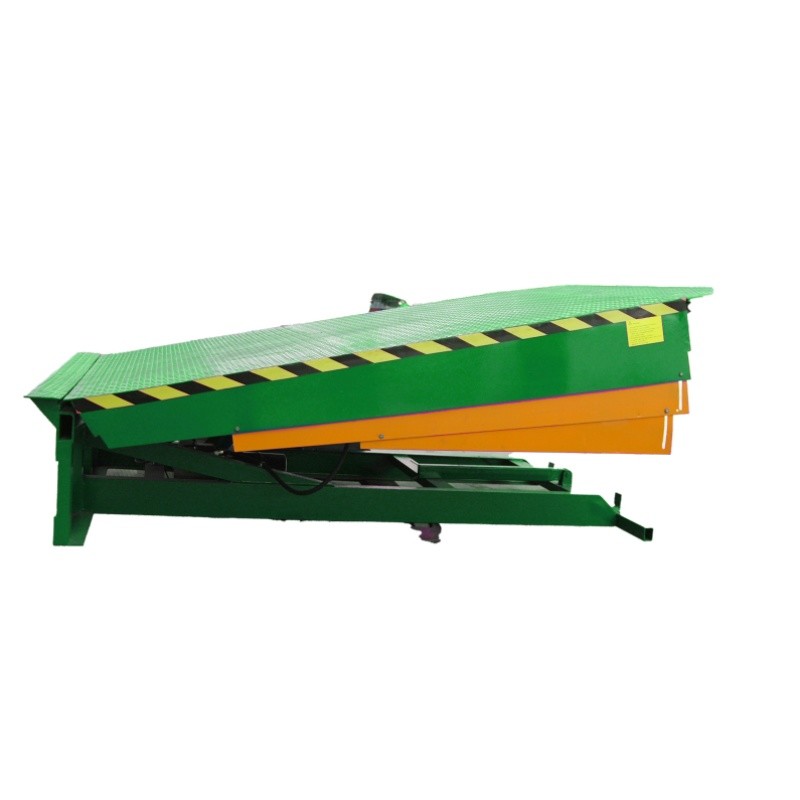

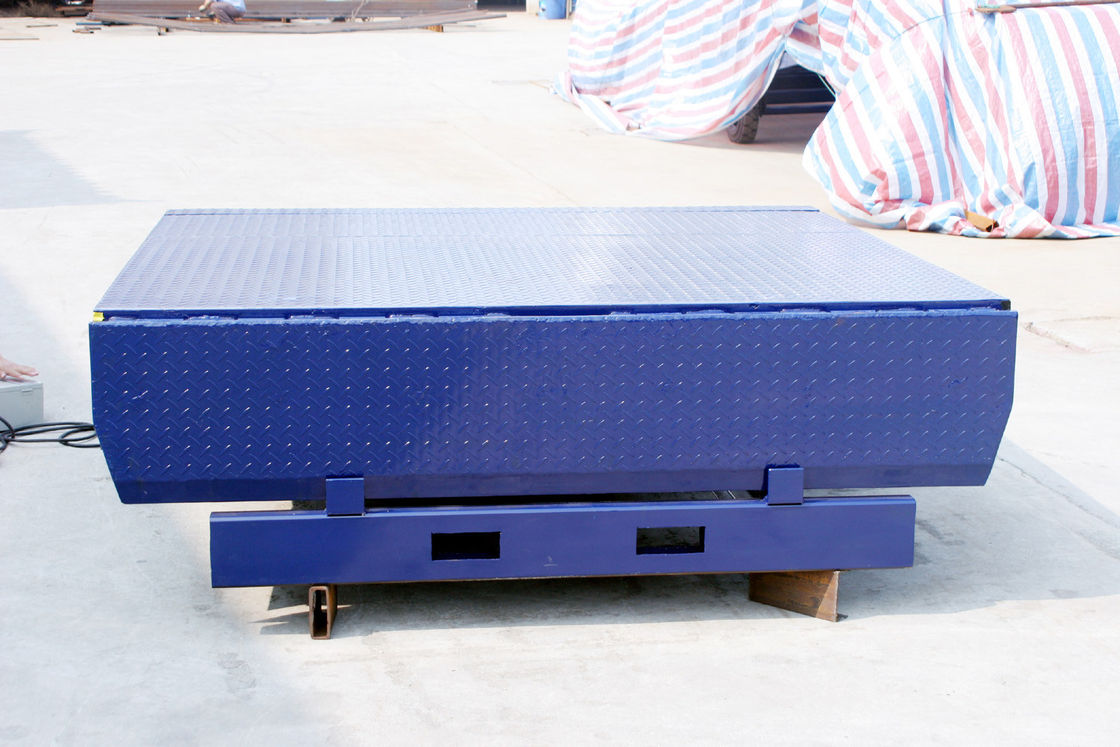

1500Kg Electric Mechanical Container Loading Dock Ramp for Truck

1500Kg Electric Mechanical Container Loading Dock Ramp for Truck

    • 1500Kg Electric Mechanical Container Loading Dock Ramp for Truck
    • 1500Kg Electric Mechanical Container Loading Dock Ramp for Truck
    • 1500Kg Electric Mechanical Container Loading Dock Ramp for Truck
  • 1500Kg Electric Mechanical Container Loading Dock Ramp for Truck

    Product Details:

    Place of Origin: China
    Brand Name: Xunte
    Certification: CE
    Model Number: DCQ15-0.5

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wrapped in pallets
    Delivery Time: 30 days
    Payment Terms: L/C, T/T, Western Union, MoneyGram
    Supply Ability: 100 sets/month
    Contact Now
    Detailed Product Description
    Loading Capacity: 15000kg Platform Size: 2.0*2.0m
    Lip Length: 400mm Working Range: ±250mm
    Motor Power: 0.75kw Weight: 1050kg
    Power Voltage: AC380V



    1500Kg Electric Mechanical Container Loading Dock Ramp for Truck





    Quick Detail:



    Name Stationary Dock Ramp Brand Name Xunte
    Loading Capacity 15000Kg Working Range ±250mm
    Platform Size 2.0*2.0m Color Blue Color or Optional
    Voltage 380V/50Hz Power Supply AC
    Motor Power 0.75Kw





    Description:

    • Stationary Dock Ramp is a fixed loading equipment and widely used as a bridge between platform and the truck. It allows the forklift to move conveniently. One side of this equipment has the same height with platform, and the other side connecting with the truck and it can adjust height according to different truck and different carriage in the process of loading .Its size and loading ability can be designed according to customer's requirements.



    Main Features:

    • 1. Reinforced gusseted lip
    • 2. Heavay duty deck construction
    • 3. Anti-skid high-strength chequered platform and lip.
    • 4. Full width one -piece lip hinges pin and tube
    • 5.Heavy duty high pressure cylinders
    • 6.First class hydraulic power unit, good seal capacity and long life
    • 7. Rubber Bumpes
    • 8. Full range toe guard



    Major Parameters

    • Loading Capacity 15000kg

    • Working Range    ±250mm

    • Platform Size       2000*2000mm

    • Lifting Power        0.75kw

    • Power Voltage     380V/50HZ

    • Pit Measurement 2020*2030*600mm
    • Weight 1050kg



    Configurations:

    • Electric system: Schneider contactor, SANLICO button, CHNT electrical
    • Hydraulic System: Hycman brand power pack ,Xunte made cylinder, Trellebogr sealing
    • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
    • Platform Surface : Antiskid checkered plate
    • Main Support: 10# I beam
    • Labial Plat: 14mm plate and 3mm checkered plate
    • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose

    Optional Configuration:

    • Hydraulic Power Pack: Italy brand:Microhy



    Applications:



    1. Site: Work Shop, logistic center etc.

    2. Dock Leveler Purpose: Loading Cargo etc.





    Why to choose Xunte Stationary Dock Ramp?



    · High Quality

    · Reasonable Price

    · Good after Service

    · 1 Year Warranty

    · More Than 10 Years Experience
