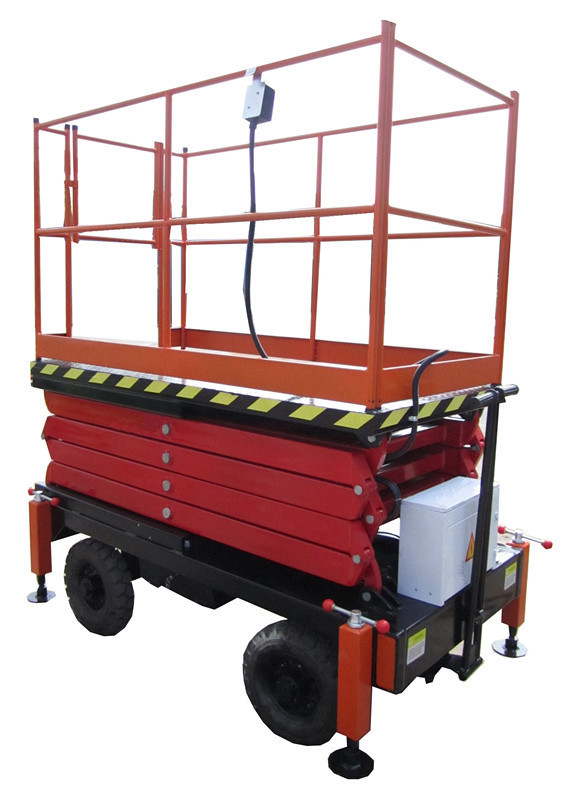

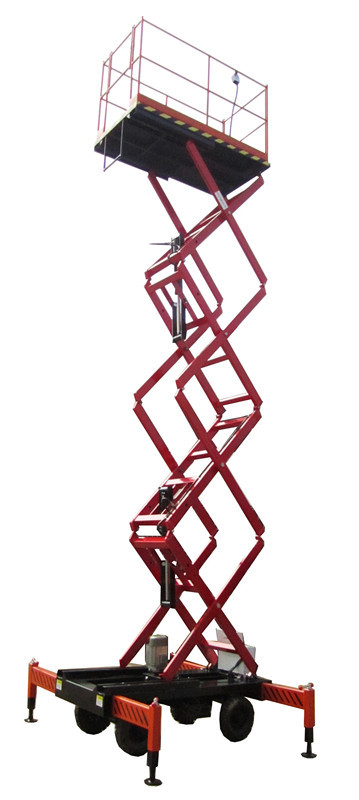

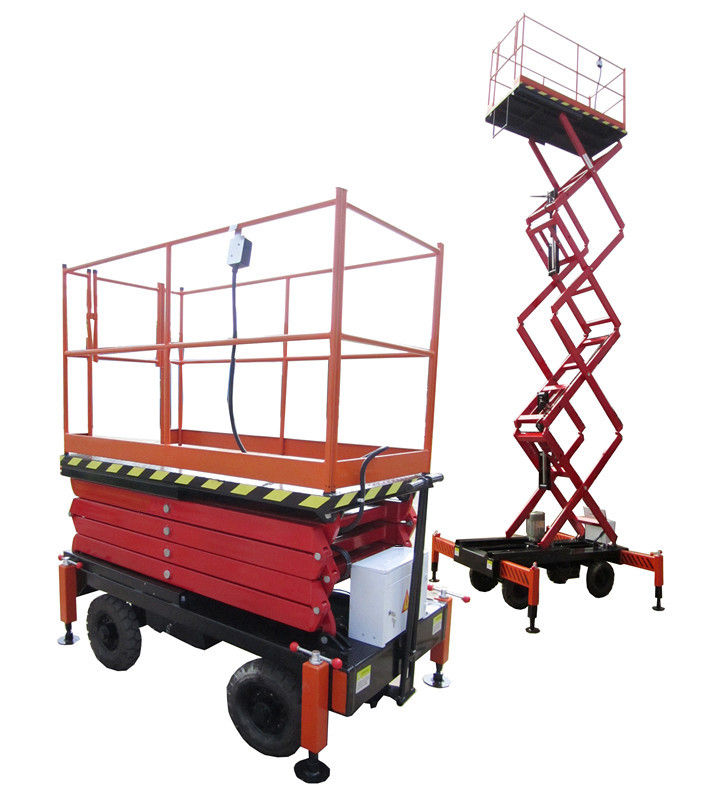

11M Electrical Mobile Scissor Lift , 300Kg Scissor Lift Platform

11M Electrical Mobile Scissor Lift , 300Kg Scissor Lift Platform

    • 11M Electrical Mobile Scissor Lift , 300Kg Scissor Lift Platform
    • 11M Electrical Mobile Scissor Lift , 300Kg Scissor Lift Platform
    • 11M Electrical Mobile Scissor Lift , 300Kg Scissor Lift Platform
  • 11M Electrical Mobile Scissor Lift , 300Kg Scissor Lift Platform

    Product Details:

    Place of Origin: China
    Brand Name: Xunte
    Certification: CE
    Model Number: SJZ0.3-11

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: PVC Film Wrapped in Pallets or in Wooden Case
    Delivery Time: 30 days after order confirmed
    Payment Terms: T/T or L/C
    Supply Ability: 100 sets/month
    Contact Now
    Detailed Product Description
    Name: Mobile Scissor Lift Loading Capacity: 300Kg
    Platform Height: 11m Platform Size: 2100mm*1150mm
    Color: Blue Color Or Optional Power Supply: AC&DC / DC
    Application: Aerial Installation Work Platform: Anti Skid



    11M Electrical Mobile Scissor Lift , 300Kg Scissor Lift Platform









    Product Uses



    1. To provide good support for the four legs of the platform before using.

    2. Power-on, operating the elevator button above the electric control box to make the platform up and down

    3. Operating the up button to raise the lift platform. (the motor rotation is reversed when the platform is not raised, just swap the connection sequence of power cable, the motor can forward.)

    4. It has a remote control button above the platform, standing on the platform also can make it up and down.

    5.The platform is equipped with an emergency lowering valve, which is used for emergency lowering operation with power failure. The platform can be down slowly when loose the drop handles by hand counterclockwise. The platform will stop declining after tighten clockwise the drop handles.



    Quick Detail:



    Name Mobile Scissor Lift Brand Name Xunte
    Loading Capacity 300Kg Platform Height 11m
    Platform Size 2100mm*1150mm Color Blue Color or Optional
    Lifting Power 3Kw Power Supply AC&DC / DC
    Motorized Power 0.75 Kw



    Major Parameters

    • Model:                          SJZ0.3-11
    • Loading Capacity         300kg
    • Maximum Height         11000mm
    • Minimum Height           1700mm
    • Platform Size               2100*1150mm
    • Lifting Power                3kw
    • Motorized Power:         0.75Kw
    • Power Voltage              DC24V
    • Lifting Time                  90s
    • Cylinder                       Ф80 (3PCS)
    • Gear Pump                  6ml/r
    • Total Weight                1380kg
    • Measurement              2500*1350*1700MM



    Configurations:

    • Electric system: Schneider contactor, SANLICO button, CHNT electrical
    • Hydraulic System: Hycman brand power pack ,NOK sealing
    • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
    • Platform Surface : Antiskid checkered plate
    • Tire: Ø600-9 Inflated tires
    • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose :
    • Battery: (DC12V,150AH)*4 with charger



    Optional Configuration:

    • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
    • Extension Platform
    • Rubber Solid Tire
    • Flame Proof Control Cabine



    Communication with Customers



    A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

    B: The main difference is from the structure and the material

    The scissor lift is in scissor structure with steel material

    The aerial work platform is in mast structure with aluminum material



    A: How is that for quality control in your factory?

    B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

    1.Strict quality control system on the whole process of production

    2.Imported key arts to ensure the high quality of our products

    3.Advanced equipment and tools for examination and quality control

    4.100% strict examining products before shipment

    5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



    A: What is the delivery time for your goods?

    B: it is 30days after order confirmation



    A: What spare parts that you can offer?

    B: We provide following spare parts freely for your maintenance of the machine:

    Item Quantity
    Fuse 3
    "O" Rubber Seals Φ11 3
    Wrench 1
    Pressure Oiler 1
    Cross Screwdriver 1
    Straight Screwdrive 1



    A: How long is your quality guarantee period?

    B: We have one year warranty.
