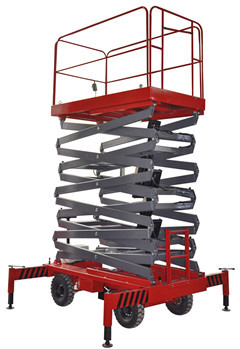

12 Meters industrial Hydraulic Lift Platform with 500Kg Loading Capacity

12 Meters industrial Hydraulic Lift Platform with 500Kg Loading Capacity

    • 12 Meters industrial Hydraulic Lift Platform with 500Kg Loading Capacity
    • 12 Meters industrial Hydraulic Lift Platform with 500Kg Loading Capacity
    • 12 Meters industrial Hydraulic Lift Platform with 500Kg Loading Capacity
    • 12 Meters industrial Hydraulic Lift Platform with 500Kg Loading Capacity
  • 12 Meters industrial Hydraulic Lift Platform with 500Kg Loading Capacity

    Product Details:

    Place of Origin: China
    Brand Name: Xunte
    Model Number: SJY0.5-12

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: PVC Film Wrapped in Pallets or in wooden Case
    Delivery Time: 30 days after order confirmed
    Payment Terms: T/T or L/C
    Supply Ability: 100 sets/month
    Contact Now
    Detailed Product Description
    Name: Mobile Scissor Lift Material: High Strength Steel
    Usage: Lift Workers Feature: Easy Operation Safety Convenience
    Load Capacity: 500kg Total Weight: 2250kg



    12 Meters industrial Hydraulic Lift Platform with 500Kg Loading Capacity







     Application


    Mobile scissor aerial work platform is an equipment used widely in aerial work. Its scissor structure makes the lifting station have high stability, large platform and a strong carrying capacity. Therefore, it has a greater range of operations at high-altitude, and suitable for many people simultaneously. It enables high-altitude operations more efficient, safer and protected.


    Feature

    A. Stability structure, carrying capacity, stable lifting, easy maintenance.
    B. Adaptability, it can be used in harsh environments and general explosion proof place.
    C. Widely applicable, it is suitable for factory shop, square, lobby, airport, park and other high-attitude operations place.
    D. High safety, it is equipping the up-down double control button with low voltage and one-touch emergency stop and lowering device, to improve the safety of equipment.



    Quick Detail:



    Name Mobile Scissor Lift Brand Name Xunte
    Loading Capacity 500Kg Platform Height 12m
    Platform Size 2.450*1.35m Color Red Color or Optional
    Lifting Power 3Kw Power Supply AC/DC





    Major Parameters

    • Model: SJY0.5-12
    • Loading Capacity 500kg
    • Maximum Height 12000mm
    • Minimum Height 1850mm
    • Platform Size 2450*1350mm
    • Lifting Power 3kw
    • Power Voltage 1phase/220V/50HZ
    • Lifting Time 100s
    • Cylinder Ф100(3Pcs)
    • Gear Pump 6ml/r
    • Total Weight 2250kg
    • Measurement 2600*1590*1850mm



    Configurations:

    • Electric system: Schneider contactor, SANLICO button, CHNT electrical
    • Hydraulic System: Hycman brand power pack ,NOK sealing
    • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
    • Platform Surface : Antiskid checkered plate
    • Tire: Ø500-8 Inflated tires
    • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose



    Optional Configuration:

    • Power Supply: 3phases/380V/50HZ; DC 24V ; manual pump
    • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
    • Extension Platform
    • Rubber Solid Tire
    • Flame Proof Control Cabinet





    Why to choose Xunte Mobile Scissor Lift?

    · High Quality

    · Reasonable Price

    · Good after Service

    · 1 Year Warranty

    · More Than 10 Years Experience





    Communication with Customers



    A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

    B: The main difference is from the structure and the material

    The scissor lift is in scissor structure with steel material

    The aerial work platform is in mast structure with aluminum material



    A: How is that for quality control in your factory?

    B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

    1.Strict quality control system on the whole process of production

    2.Imported key arts to ensure the high quality of our products

    3.Advanced equipment and tools for examination and quality control

    4.100% strict examining products before shipment

    5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



    A: What is the delivery time for your goods?

    B: it is 30days after order confirmation



    A: What spare parts that you can offer?

    B: We provide following spare parts freely for your maintenance of the machine:

    Item Quantity
    Fuse 3
    "O" Rubber Seals Φ11 3
    Wrench 1
    Pressure Oiler 1
    Cross Screwdriver 1
    Straight Screwdrive 1



    A: How long is your quality guarantee period?

    B: We have one year warranty.
