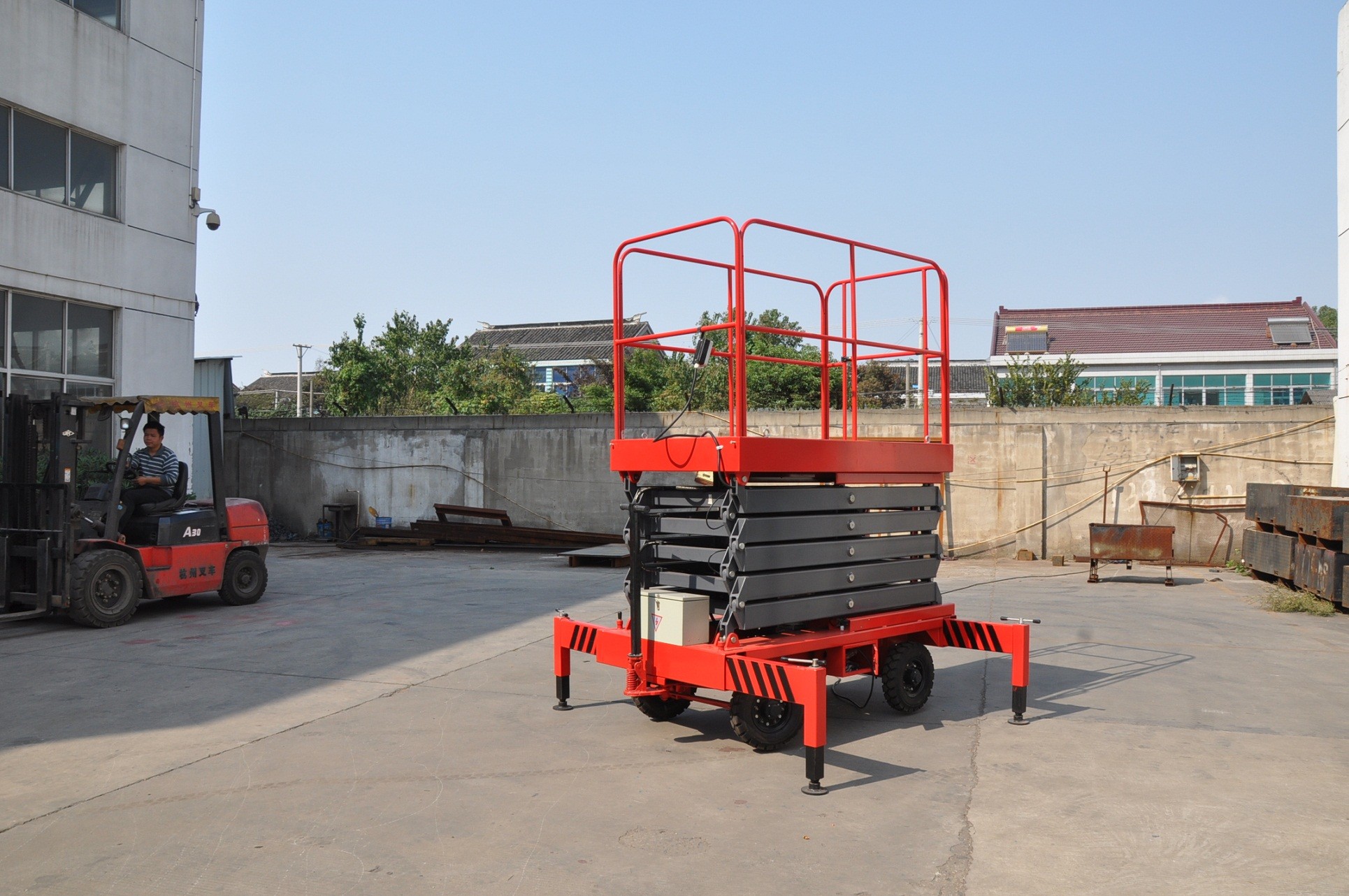

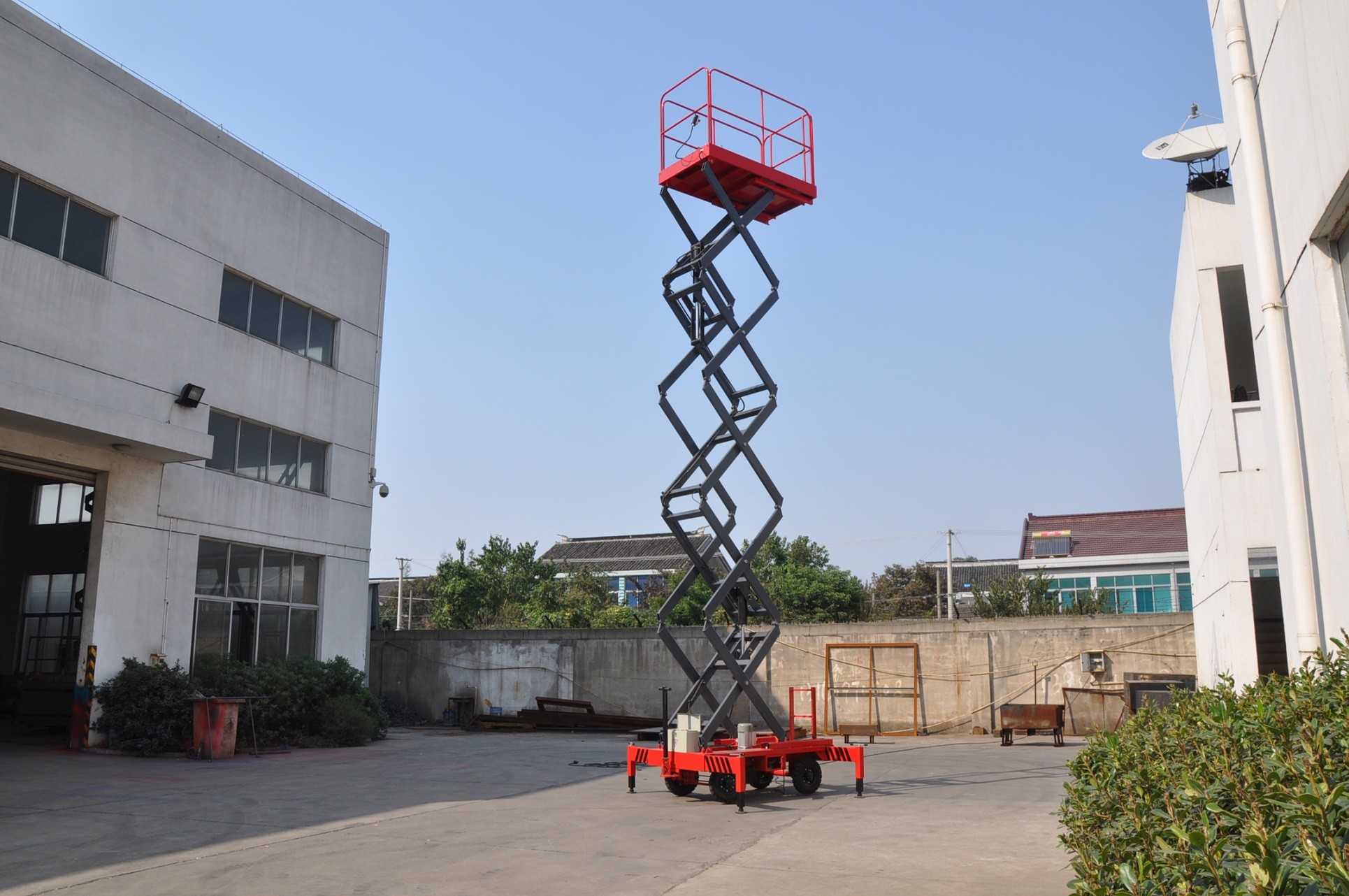

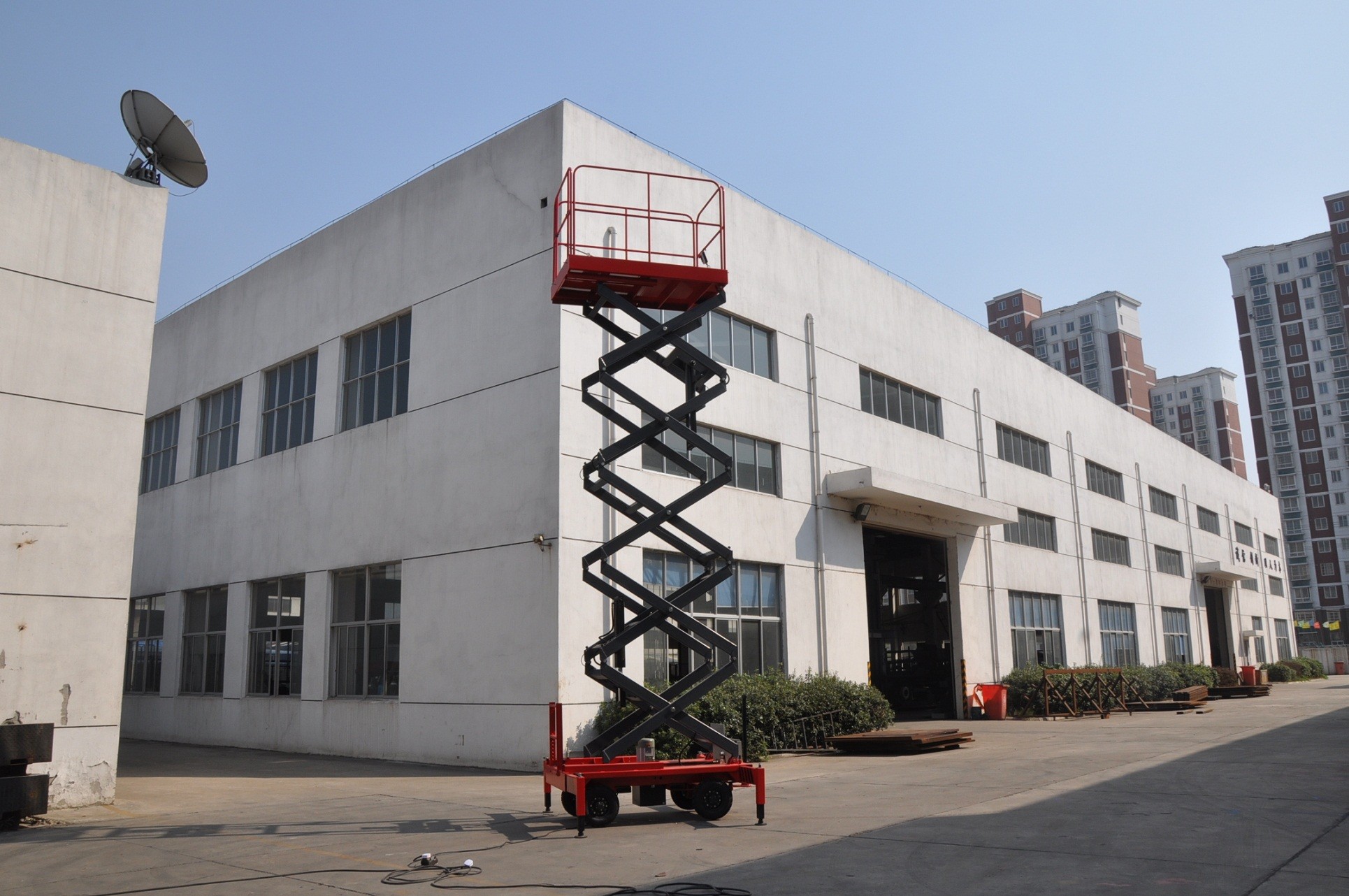

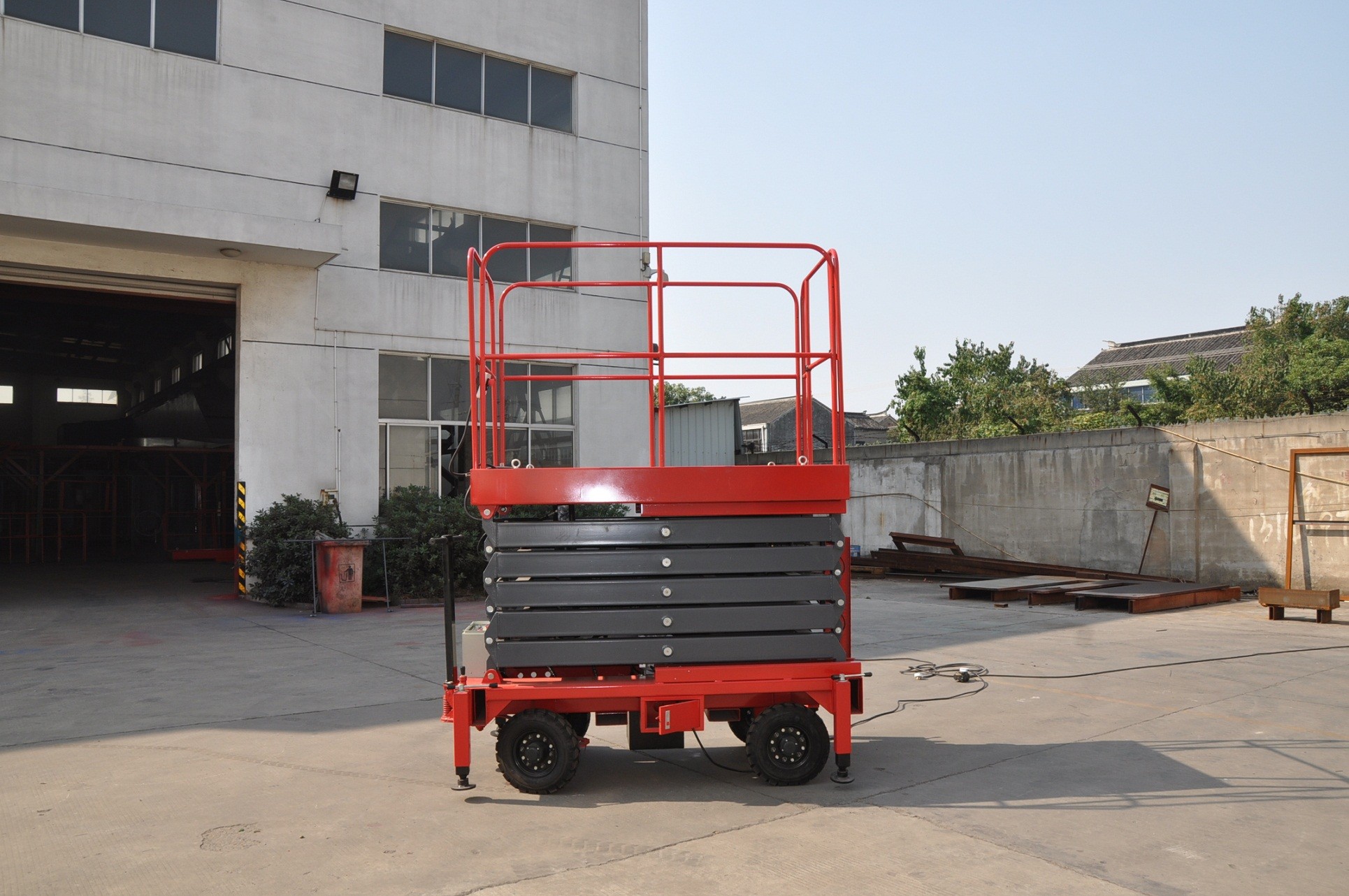

9 Meters Mobile Hydraulic Scissor Lift with 450Kg Loading Capacity

9 Meters Mobile Hydraulic Scissor Lift with 450Kg Loading Capacity

    • 9 Meters Mobile Hydraulic Scissor Lift with 450Kg Loading Capacity
    • 9 Meters Mobile Hydraulic Scissor Lift with 450Kg Loading Capacity
    • 9 Meters Mobile Hydraulic Scissor Lift with 450Kg Loading Capacity
    • 9 Meters Mobile Hydraulic Scissor Lift with 450Kg Loading Capacity
  • 9 Meters Mobile Hydraulic Scissor Lift with 450Kg Loading Capacity

    Product Details:

    Place of Origin: China
    Brand Name: Xunte
    Certification: CE
    Model Number: SJY0.45-9

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: PVC Film Wrapped in Pallets or in Wooden Case
    Delivery Time: 30 days after order confirmed
    Payment Terms: T/T or L/C
    Supply Ability: 100 sets/month
    Contact Now
    Detailed Product Description
    Loading Capacity: 450kg Platform Height: 9m
    Platform Size: 1.80*1.00m Lifting Power: 1.5kw
    Lifting Time: 70s Measurement: 2000*1200*1680mm
    Weight: 1260kg



    9 Meters Mobile Hydraulic Scissor Lift with 450Kg Loading Capacity





    Quick Detail:



    Name Mobile Scissor Lift Brand Name Xunte
    Loading Capacity 450Kg Platform Height 9m
    Platform Size 1.80*1.00m Color Red Color or Optional
    Lifting Power 1.5Kw Power Supply AC/DC





    Description:



    Mobile Scissor lifts can provide reliable stability when the lifts rising up, the broad platform and the high loading capacity get the aerial working more efficient and more safely.





    Main Features:



    1. Pointing control of lifting up and down.

    2. Manganese steel lifting arm in high strength with rectangle shape

    3. Anti-skid floor in platform

    4 The control panels are available on the platforms and ground.

    5. Fine grinding cylinder in good sealing performance

    6. Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas.





    Safety Precaution:



    1. The operation voltage on the platform is 24V

    2. Emergency stop button on the platform and ground

    3. Auxiliary platform lowering

    4. Telescopic legs on the chassis

    5. Hose burst valve safety

    6. Rain-proof design electric cabinet

    7. Fence on the platform





    Major Parameters

    • Model: SJY0.45-9
    • Loading Capacity 450kg
    • Maximum Height 9000mm
    • Minimum Height 1680mm
    • Platform Size 1800*1000mm
    • Lifting Power 1.5kw
    • Power Voltage 1phase/220V/50HZ
    • Lifting Time 70s
    • Cylinder Ф100(2Pcs)
    • Gear Pump 6ml/r
    • Total Weight 1260kg
    • Measurement 2000*1200*1680mm



    Configurations:

    • Electric system: Schneider contactor, SANLICO button, CHNT electrical
    • Hydraulic System: Hycman brand power pack ,NOK sealing
    • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
    • Platform Surface : Antiskid checkered plate
    • Tire: Ø400-8 Inflated tires
    • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose



    Optional Configuration:

    • Power Supply: 3phases/380V/50HZ; DC 24V ; manual pump
    • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
    • Extension Platform
    • Rubber Solid Tire
    • Flame Proof Control Cabinet



    Applications:



    1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

    2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.





    Why to choose Xunte Mobile Scissor Lift

    • High Quality
    • Reasonable Price
    • Good after Service
    • One Year Warranty
    • More Than Ten Years Experience



    Communication with Customers



    Question: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

    Answer :  The main difference is from the structure and the material

                    The scissor lift is in scissor structure with steel material

                    The aerial work platform is in mast structure with aluminum material



    Question: How is that for quality control in your factory?

    Answer: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

    1. Strict quality control system on the whole process of production

    2. Imported key arts to ensure the high quality of our products

    3. Advanced equipment and tools for examination and quality control

    4. 100% strict examining products before shipment

    5. All the quality complaints and improvement requirements are always studied and put into practice immediately.



    Question: What is the delivery time for your goods?

    Answer: it is 30days after order confirmation



    Question: What spare parts that you can offer?

    Answer: We provide following spare parts freely for your maintenance of the machine:

    Item Quantity
    Fuse 3
    "O" Rubber Seals Φ11 3
    Wrench 1
    Pressure Oiler 1
    Cross Screwdriver 1
    Straight Screwdrive 1



    Question: How long is your quality guarantee period?

    Answer: We have one year warranty.
