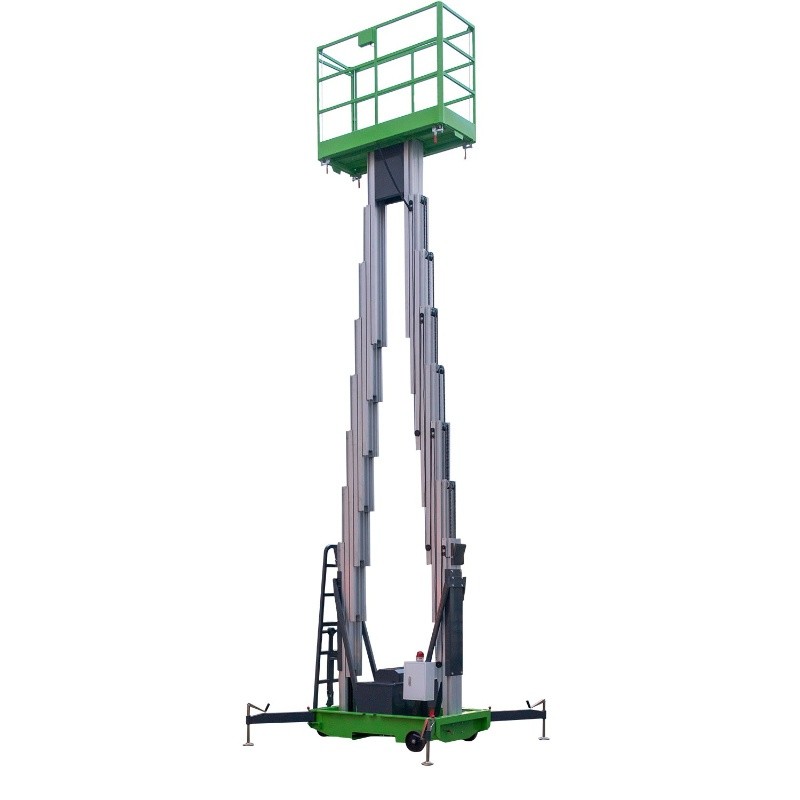

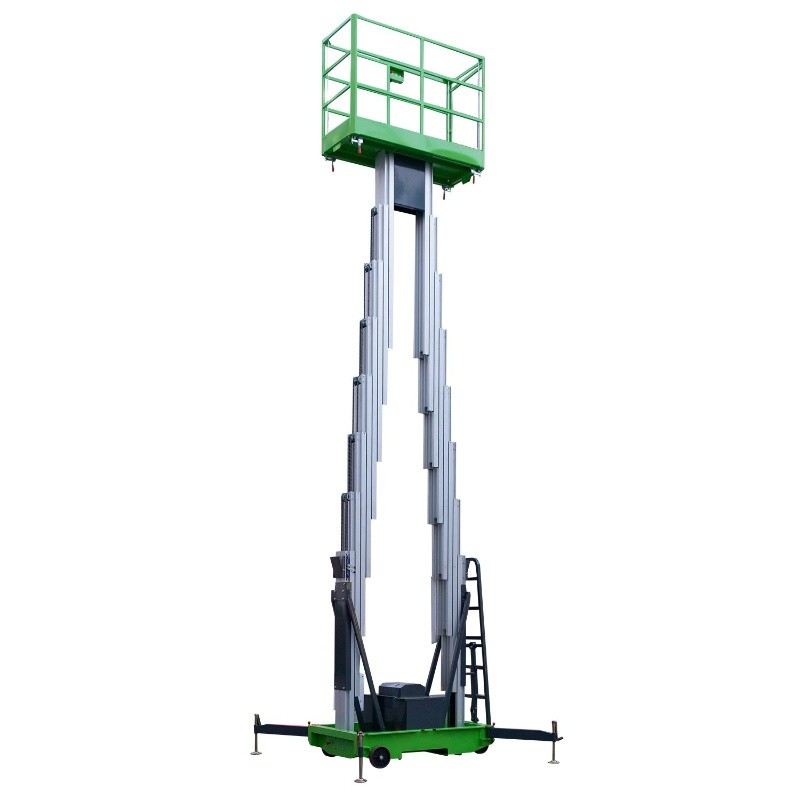

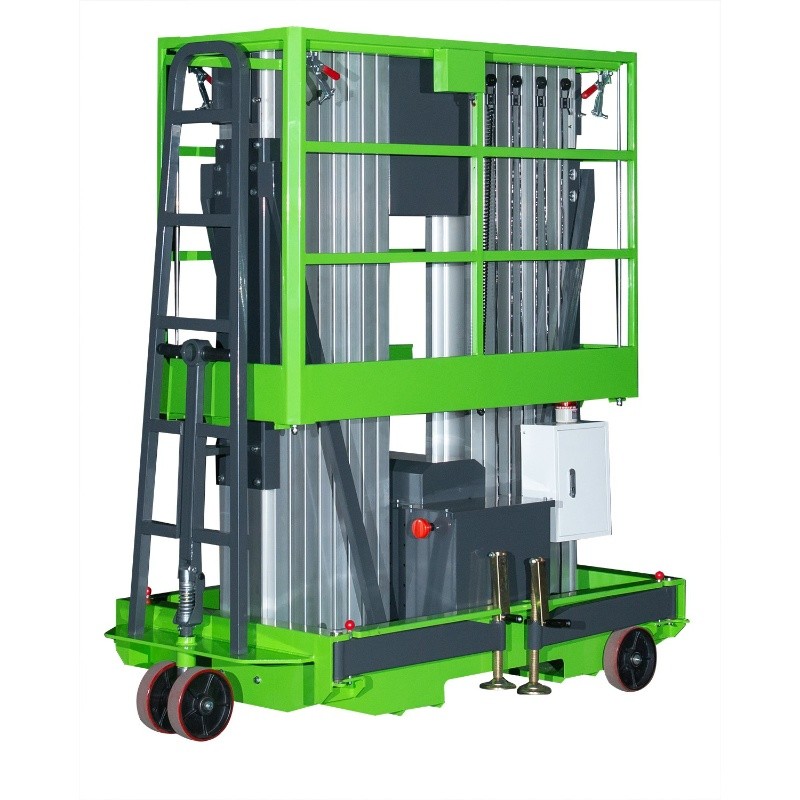

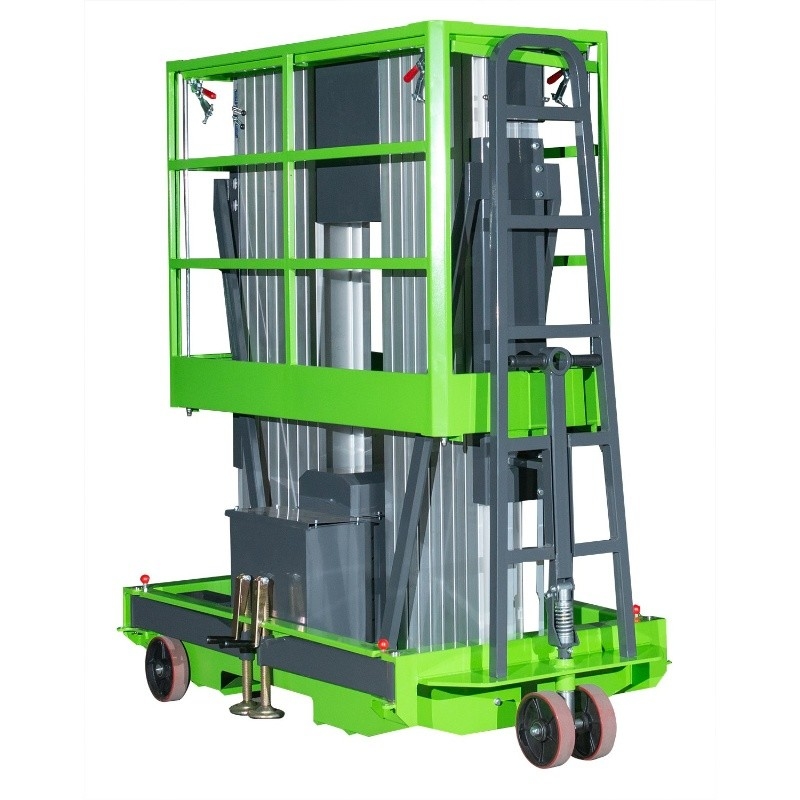

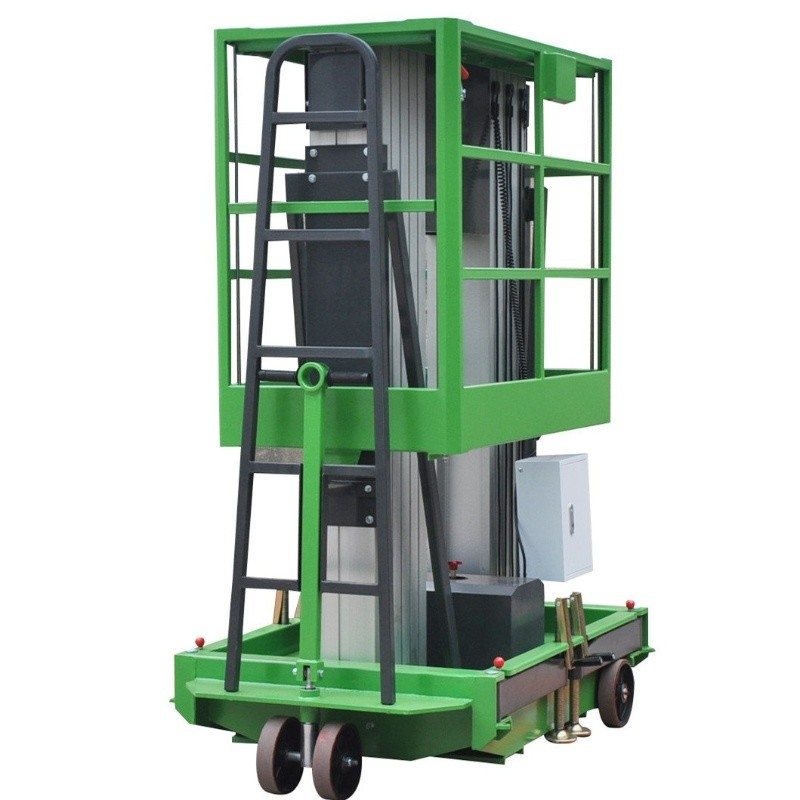

14 Meters 200kg Load Capacity Vertical Lifting Platform Double Mast Manual Pushing

14 Meters 200kg Load Capacity Vertical Lifting Platform Double Mast Manual Pushing

    • 14 Meters 200kg Load Capacity Vertical Lifting Platform Double Mast Manual Pushing
    • 14 Meters 200kg Load Capacity Vertical Lifting Platform Double Mast Manual Pushing
    • 14 Meters 200kg Load Capacity Vertical Lifting Platform Double Mast Manual Pushing
    • 14 Meters 200kg Load Capacity Vertical Lifting Platform Double Mast Manual Pushing
  • 14 Meters 200kg Load Capacity Vertical Lifting Platform Double Mast Manual Pushing

    Product Details:

    Place of Origin: CN
    Brand Name: BestmaxLift
    Certification: ISO; IPAF; CE
    Model Number: ME1400-2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: USD 1800-4500
    Packaging Details: Packed in Pallet, Wrapped with Film
    Delivery Time: Within 15 days
    Payment Terms: L/C, T/T
    Supply Ability: 2000 units per month
    Contact Now
    Detailed Product Description
    Material: Aluminum Max Platform Height: 14m
    Max Working Height: 16m Platform Size: 1.52*0.62m
    Standard Power: AC Optional Power: DC; AC+DC

    14 Meters 200kg Load Capacity Double Mast Manual Pushing Vertical Lifting Platform



    Major Parameter of Single Mast Aluminum Aerial Work Platform

    Model NO. Working Height (m) Loading Capacity (Kg) Platform
    Size (m)
    Lifting
    Power (Kw)
    Weight
    (Kg)
    Dimension (m)
    GTWY6-100 8 130 0.60x0.55 0.75 260 1.38x0.80x1.65
    GTWY8-100 10 130 0.60x0.55 0.75 300 1.38x0.80x1.98
    GTWY9-100 11 130 0.60x0.55 0.75 326 1.44x0.85x1.98
    GTWY10-100 12 130 0.60x0.55 0.75 400 1.44x0.85x1.98


    Major Parameters of Double Mast Aluminum Aerial Work Platform

    Model NO. Working Height(m) Loading Capacity(Kg) Platform Size(m) Lifting Power (Kw) Weight(Kg) Dimension(m)
    GTWY6-200 8 200 1.18x0.62 1.1 380 1.38x0.85x2.00
    GTWY8-200 10 200 1.18x0.62 1.1 480 1.38x0.95x2.00
    GTWY9-200 11 200 1.38x0.62 1.1 548 1.58x0.95x2.00
    GTWY10-200 12 200 1.38x0.62 1.1 610 1.68x0.95x2.00
    GTWY12-200 14 200 1.48x0.62 1.1 650 1.68x0.95x2.00
    GTWY14-200 16 150 1.48x0.62 1.1 650 1.68x0.95x2.00





    Main Configurations of Man Pushing Around Aluminum Aerial Work Platform

    14 Meters 200kg Load Capacity Vertical Lifting Platform Double Mast Manual Pushing



    Safety Features of Man pushing Around Aluminum Aerial Work Platform

    • Toe protection boards on the platform
    • Anti-skid deck on the platform
    • Auxiliary Lowering
    • Dual limit switch for safety
    • Operation voltage at 24V
    • Safety belt holding
    • Anti-burst valve on the cylinder
    • Emergency stop button both on platform and ground
    • Short Circuit and leakage protection system for AC version
    • Fuse for DC version for electric shock protection

    Company Introduction



    Chenlift (Suzhou) Machinery Co Ltd. Is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.



    Tilting type can be made for height limitation place
    14 Meters 200kg Load Capacity Vertical Lifting Platform Double Mast Manual Pushing


    14 Meters 200kg Load Capacity Vertical Lifting Platform Double Mast Manual Pushing

    14 Meters 200kg Load Capacity Vertical Lifting Platform Double Mast Manual Pushing

    Why choose Our Mobile Vertical Lift?
    · High Quality
    · Reasonable Price
    · Good after Service
    · 1 Year Warranty
    · More Than 20 Years Experience

    Communication with Customers:
    A: How is that for quality control in your factory?
    B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
    1. Strict quality control system on the whole process of production
    2. Imported key arts to ensure the high quality of our products
    3. Advanced equipment and tools for examination and quality control
    4. 100% strict examining products before shipment
    5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.

    A: What is the delivery time for your goods?
    B: It is 30 days after order confirmation.

    A: How long is your quality guarantee period?
    B: We have one year warranty.
