Stationary Loading Dock Ramp , Forklift Dock Ramp For Loading Cargo 15 Tons Capacity

Stationary Loading Dock Ramp , Forklift Dock Ramp For Loading Cargo 15 Tons Capacity

    • Stationary Loading Dock Ramp , Forklift Dock Ramp For Loading Cargo 15 Tons Capacity
    • Stationary Loading Dock Ramp , Forklift Dock Ramp For Loading Cargo 15 Tons Capacity
    • Stationary Loading Dock Ramp , Forklift Dock Ramp For Loading Cargo 15 Tons Capacity
  • Stationary Loading Dock Ramp , Forklift Dock Ramp For Loading Cargo 15 Tons Capacity

    Product Details:

    Place of Origin: China
    Brand Name: Bestmax
    Certification: CE
    Model Number: DCQ15-0.5

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wrapped in pallets
    Delivery Time: 30 days
    Payment Terms: T/T, L/C
    Supply Ability: 100 sets/month
    Contact Now
    Detailed Product Description
    Loading Capacity: 15000Kg Platform Size: 2000*2000mm
    Lip Length: 400mm Travel: ±250mm
    Motor Power: 0.75Kw Weight: 1050Kg
    Lift Drive / Actuation: Hydraulic Application: Warehouse,container,logistics Center

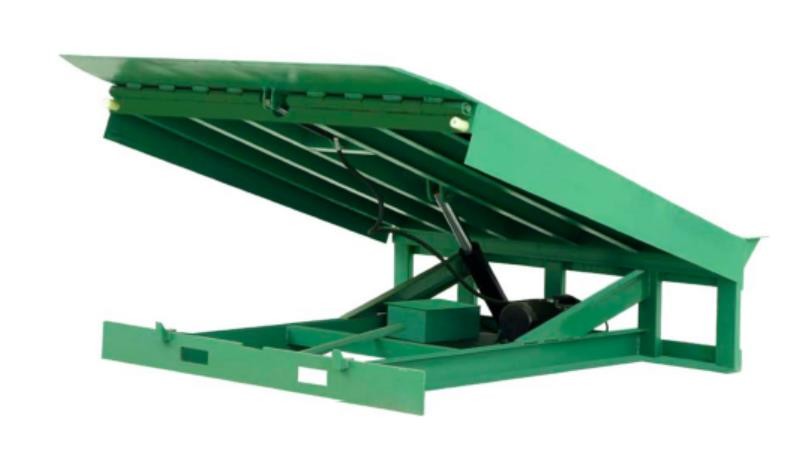

    Stationary Loading Dock Ramp for Loading Cargo 15 Tons

    Quick Detail:

    Name Stationary Dock Ramp Brand Name Xunte
    Loading Capacity 15000Kg Working Range ±250mm
    Platform Size 2.0*2.0m Color Blue Color or Optional
    Voltage 380V/50Hz Lip Length 400mm
    Motor Power 0.75Kw Weight 1050Kg



    Description:
    Stationary Dock Leveler is a fixed loading equipment and widely used as a bridge between platform and the truck. It allows the forklift to move conveniently. One side of this equipment has the same height with platform, and the other side connecting with the truck and it can adjust height according to different truck and different carriage in the process of loading .Its size and loading ability can be designed according to customer's requirements.

    Stationary Loading Dock Ramp , Forklift Dock Ramp For Loading Cargo 15 Tons Capacity

    Main Features:
    1. Excellent design, compact hydraulically controller,
    2. Imported Hydraulic system, easy to operate and reliable operation.
    3. Lip plate and platform used to connect the whole axis, high strength and reliability.
    4. Imported seals to protect the hydraulic system in an excellent sealing performance.
    5. Overall module imported hydraulic station, sealing and long service life.
    6. High-intensity "U"-shaped beam design to protect their long-running high-load without deformation.
    7. With non-slip tread plate, the platform has a good skid resistance.
    8. Both sides of the fortification rolling pin apron, to prevent accidental injuries caused by the toes stretching platform.
    9. Protection of maintenance personnel to enter the board with an internal bridge maintenance safety rod.

    Standard Configurations:
    . Italian Brand Hydraulic System
    . Supporting Bar for Safety Maintenance
    . Full Range Toe Guard
    . Rubber Bumpers
    Optional Configurations:
    . A220/50Hz
    . The Hydraulic System with Stop Device

    Installtions:
    A. Install dock leveler and/or dock lift unit in prepared opening in accordance with manufacturer's instructions.
    B. Set square and level.
    C. Anchor unit securely, flush with dock. Weld back of dock leveler to pit frame. Touch-up welds with matching paint.
    D. Install dock bumpers in accordance with manufacturer's instructions.

    Stationary Loading Dock Ramp , Forklift Dock Ramp For Loading Cargo 15 Tons Capacity

    Other Related Products:
    Stationary Loading Dock Ramp , Forklift Dock Ramp For Loading Cargo 15 Tons Capacity

    Company Profile:
    Bestmax Heavy Industry Company Limited, Is a Suzhou-based world-wide supplier of lifting equipment. With over 20 years of experience in the lifting industry, we have the knowledge to assist you in aquiring your next lifting equipment.
    We specialize in producing in a range of aerial lift and aerial work platform equipment for your unique application. Based on our own manufacturing experience and refer to European advances design theory and manufacturing technology.
    We are also the CE certified manufacture and joined IPAF member.

    Communication with Customers:
    A: How is that for quality control in your factory?
    B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
    1. Strict quality control system on the whole process of production
    2. Imported key arts to ensure the high quality of our products
    3. Advanced equipment and tools for examination and quality control
    4. 100% strict examining products before shipment
    5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.
    A: What is the delivery time for your goods?
    B: It is 30 days after order confirmation.
    A: How long is your quality guarantee period?
    B: We have one year warranty.
