7.5 Meters Hydraulic Mobile Scissor Lift 500Kg Loading With Extension Platform

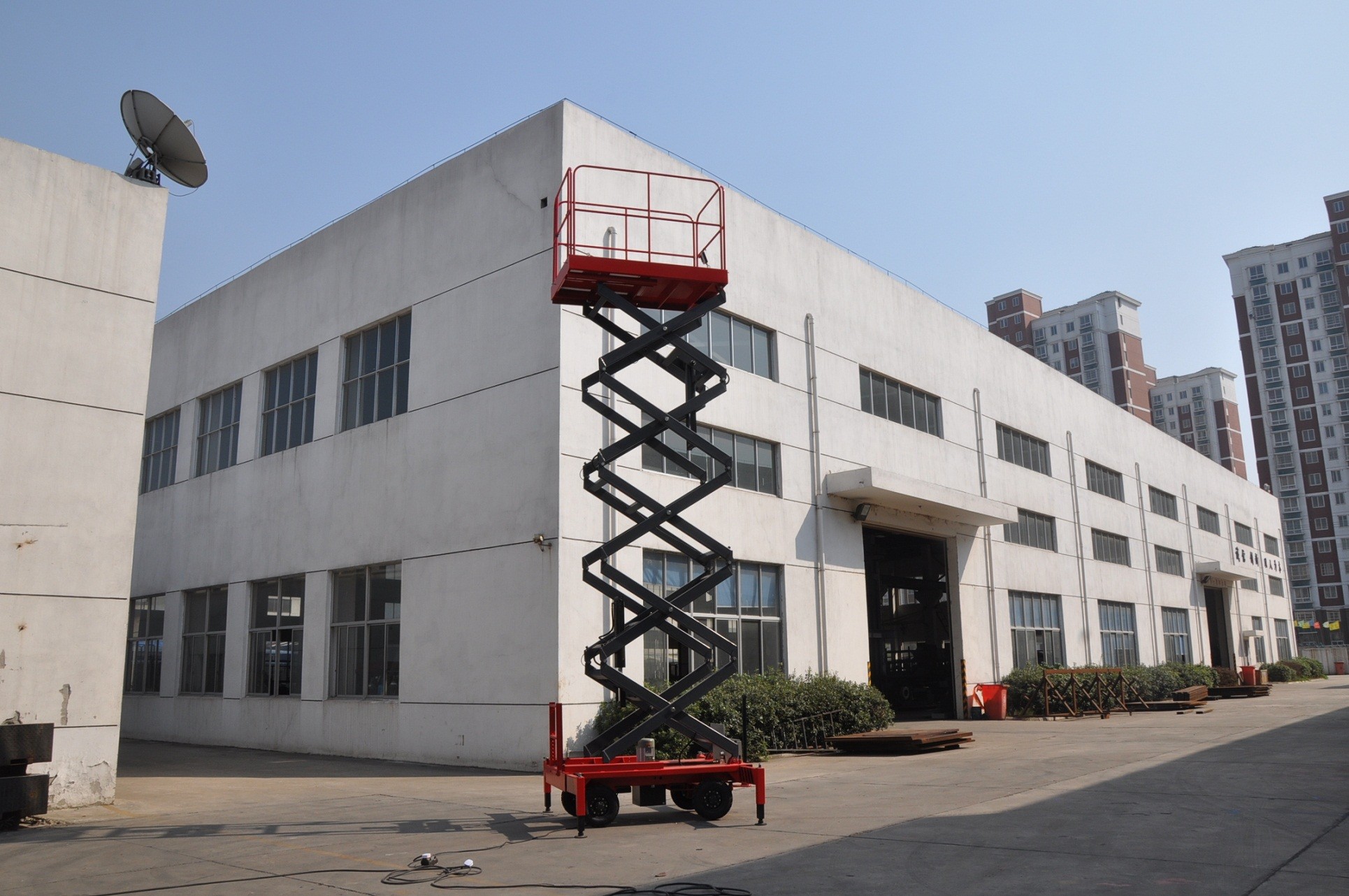

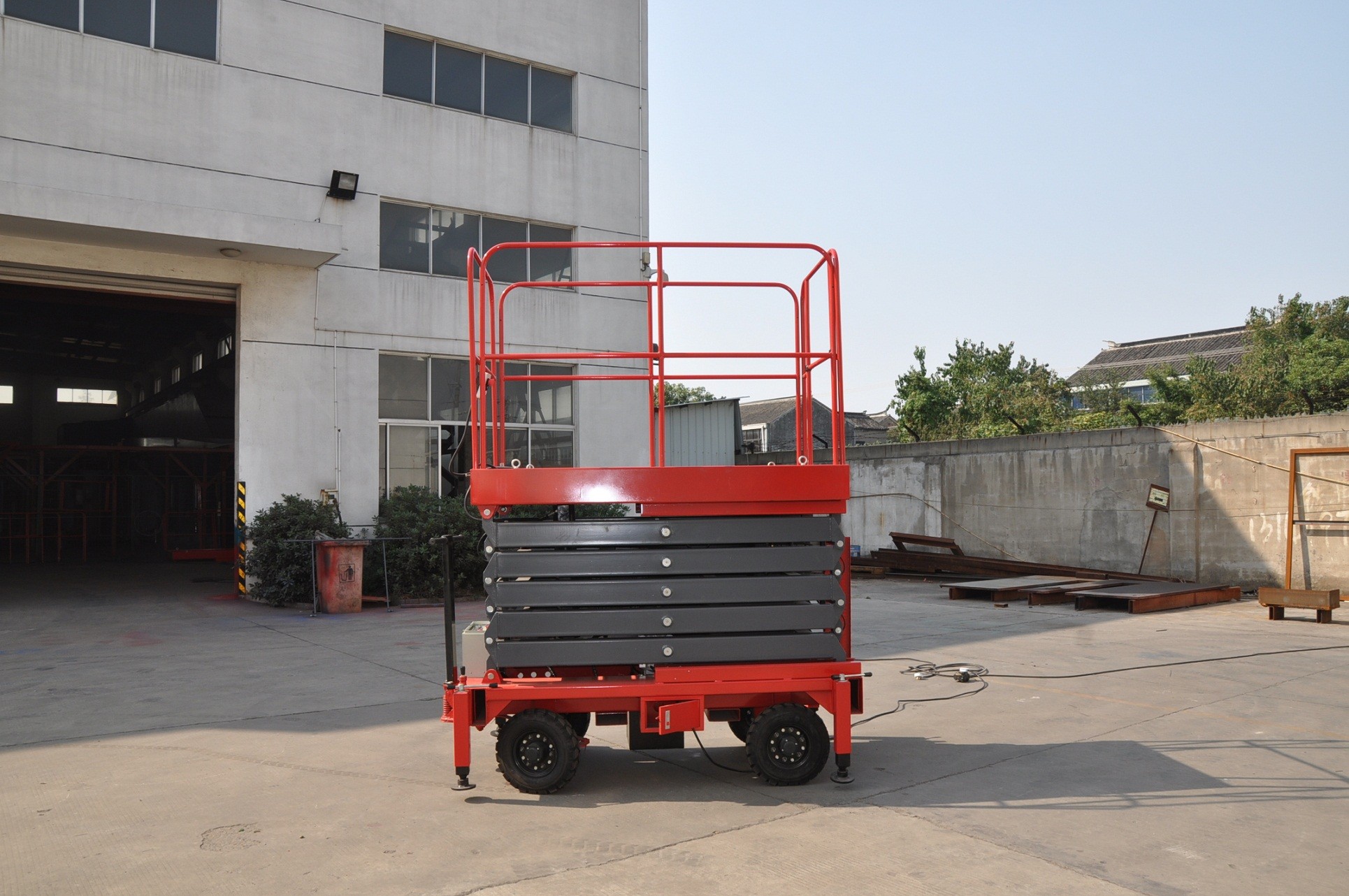

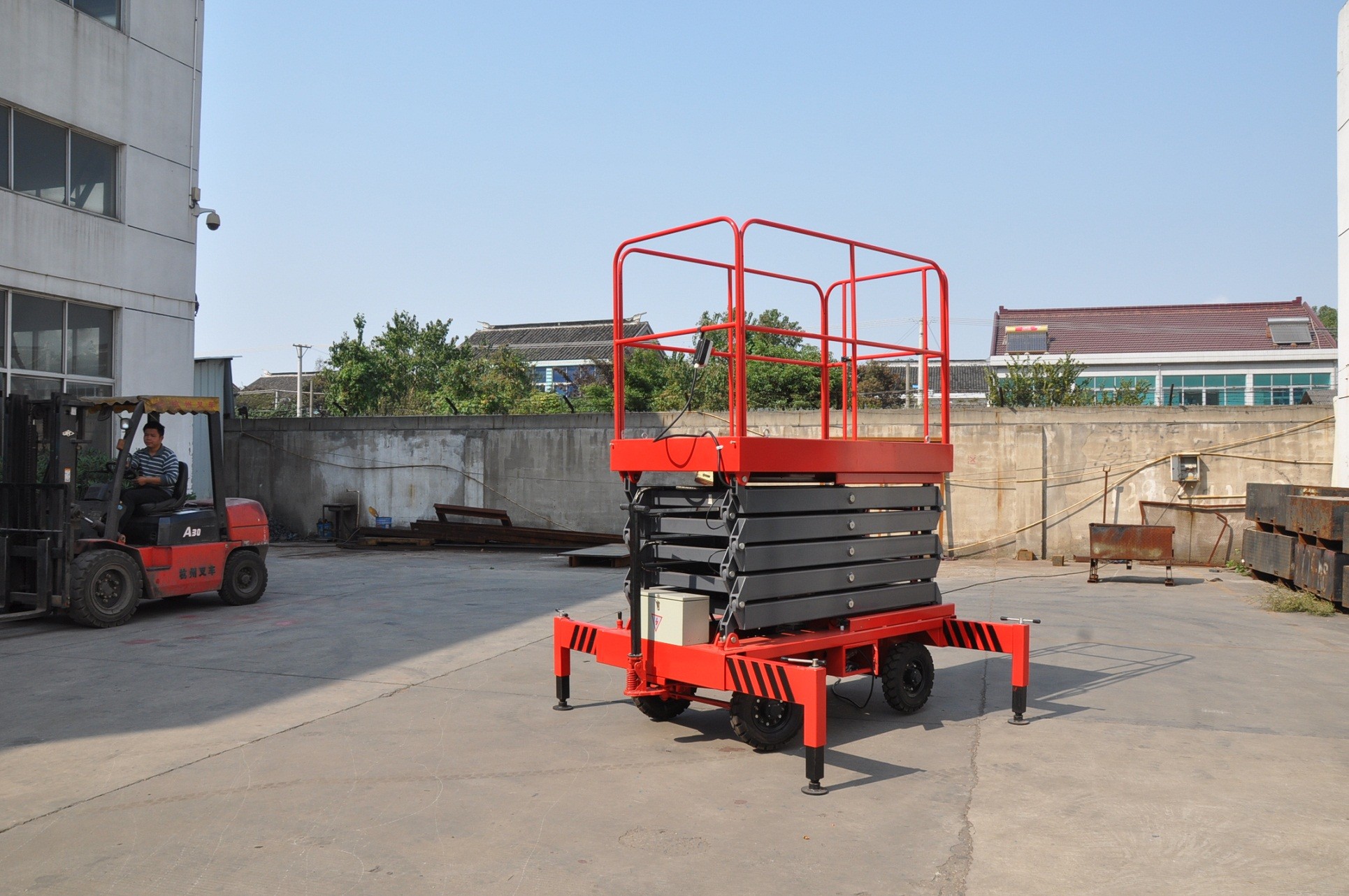

7.5 Meters Hydraulic Mobile Scissor Lift 500Kg Loading With Extension Platform

    • 7.5 Meters Hydraulic Mobile Scissor Lift 500Kg Loading With Extension Platform
    • 7.5 Meters Hydraulic Mobile Scissor Lift 500Kg Loading With Extension Platform
    • 7.5 Meters Hydraulic Mobile Scissor Lift 500Kg Loading With Extension Platform
  • 7.5 Meters Hydraulic Mobile Scissor Lift 500Kg Loading With Extension Platform

    Product Details:

    Place of Origin: China
    Brand Name: Bestmax
    Certification: CE
    Model Number: SJY0.5-7.5

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: Negotiable
    Packaging Details: PVC film wrapped in pallets or in wooden case
    Delivery Time: 30 days after order confirmed
    Payment Terms: L/C, T/T
    Supply Ability: 100 sets/month
    Contact Now
    Detailed Product Description
    Loading Capacity: 500kg Platform Height: 7500mm
    Platform Size: 1800*1000mm Motor Power: 1.5kw
    Power Supply: 220V Length Of Platform Extension: 900mm
    Min.height Of Lifter: 1650mm Overall Size: 1850*1240*1500mm





    7.5 Meters Hydraulic Mobile Scissor Lift 500Kg Loading with Extension Platform​





    Quick Detail:



    Name Mobile Scissor Lift Brand Name Bestmax
    Loading Capacity 500Kg Platform Height 7500mm
    Platform Length 1800mm Color Red Color or Optional
    Motor Power 1.5Kw Power Supply 220V
    Length of platform extension 900mm Total Width 1000mm
    Min.height of lifter 1650mm





    Description:



    This scissor lift is not self-propelled.

    Mobile Scissor lifts are also called as mobile scissor aerial work platform; they are used to provide temporary access for contractors to high, inaccessible areas on a variety of job sites such as maintenance, construction work or emergency access by firefighters. They are designed to lift limited weights and capable of being fully operated by a single person. They are narrow enough to be used in industrial settings and can be driven through narrow aisles with ease.



    The scissor structure enables reliable stability when the lifts rising up, the broad platform and the high loading capacity get the aerial working more efficient and more safely.





    Main Features:



    1. Not self-propelled

    2. Chassis - four-wheel drive

    3. Diameter of wheels - at least 400mm

    4. Power supply 230 + -10V or 400 + -20V

    5. Loading capacity - at least 500kg

    6. Platform lift height is at least 7m

    7. The length of the platform is from 1800 to 2200mm

    8. Overall width - from 840 to 1100mm

    9. Length of platform extension - at least 900mm

    10. Min. height (general height) of lifter at least 1600mm

    11. Must have CE marking





    Major Parameters



    • Model: SJY0.5-7.5
    • Loading Capacity 500kg
    • Platform Height 7500mm
    • Total width 1000mm
    • Length of Platform 1800mm
    • Length of Platform Extension 900mm
    • Min.height of lifter 1650mm
    • Diameter of wheels 500mm
    • Motor Power 1.5kw
    • Power Supply 220V
    • Total Weight 800kg





    Configurations:



    • Electric system: Schneider contactor, SANLICO button, CHNT electrical
    • Hydraulic System: Hycman brand power pack ,NOK sealing
    • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
    • Platform Surface : Antiskid checkered plate
    • Tire: Ø200 Polyurethane wheels
    • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose



    Applications:



    1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

    2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.





    Why to choose Xunte Mobile Scissor Lift?



    · High Quality

    · Reasonable Price

    · Good after Service

    · 1 Year Warranty

    · More Than 10 Years Experience





    Communication with Customers



    A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

    B: The main difference is from the structure and the material

    The scissor lift is in scissor structure with steel material

    The aerial work platform is in mast structure with aluminum material



    A: How is that for quality control in your factory?

    B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

    1.Strict quality control system on the whole process of production

    2.Imported key arts to ensure the high quality of our products

    3.Advanced equipment and tools for examination and quality control

    4.100% strict examining products before shipment

    5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



    A: What is the delivery time for your goods?

    B: it is 30days after order confirmation



    A: What spare parts that you can offer?

    B: We provide following spare parts freely for your maintenance of the machine:

    Item Quantity
    Fuse 3
    "O" Rubber Seals Φ11 3
    Wrench 1
    Pressure Oiler 1
    Cross Screwdriver 1
    Straight Screwdrive 1



    A: How long is your quality guarantee period?

    B: We have one year warranty.
