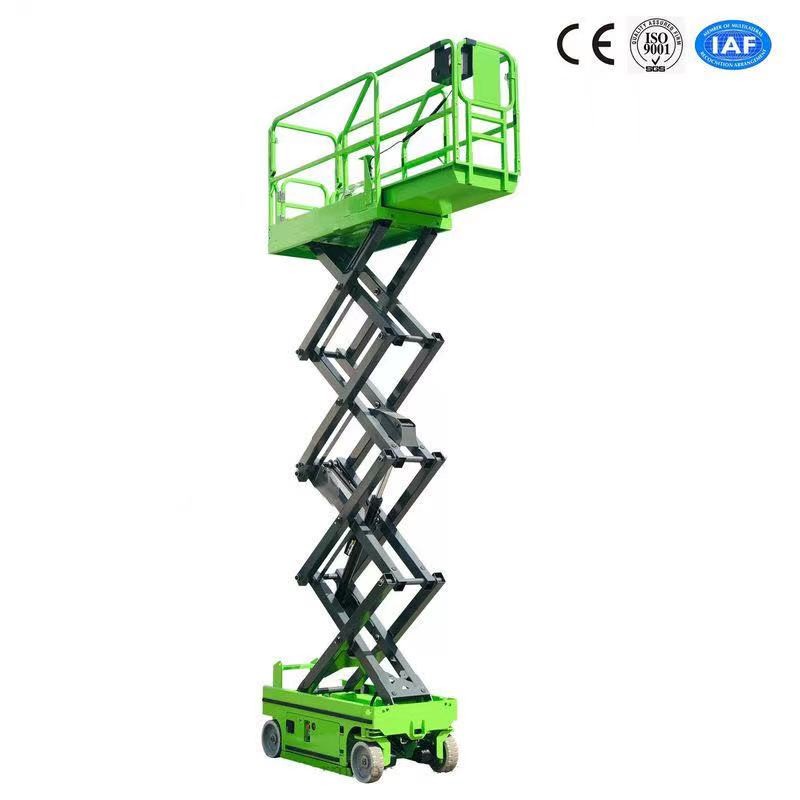

Mini Self Propelled Scissor Lift 3.9 Meters Platform Height Movable Easily

Mini Self Propelled Scissor Lift 3.9 Meters Platform Height Movable Easily

  • Mini Self Propelled Scissor Lift 3.9 Meters Platform Height Movable Easily
Mini Self Propelled Scissor Lift 3.9 Meters Platform Height Movable Easily
Product Details:
Place of Origin: China
Brand Name: Bestmax
Certification: CE
Model Number: MX390S
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PVC Film Wrapped in Pallets or Wooden Case
Delivery Time: 30 days after order confirmed
Payment Terms: L/C, T/T
Supply Ability: 100 sets/ month
Contact Now
Detailed Product Description
Loading Capacity: 240kg Platform Height: 3.9m
Working Height: 5.9m Platform Size: 1.15*0.70m
Motor Power: 0.8kw Weight: 630kg
High Light:

self propelled work platform

,

self propelled lift



Mini Mobile Scissor Lift 3.9 Meters Self Propelled Scissor Lift Easy Operation



Parameter:

Loading Capacity 240kg
Platform Height 3900mm
Platform Size 1150mm*700mm
Ground Clearance​ 50mm
Motor Power 0.8kw
Raise / Lower Time 28s / 20s
Total Weight 630kg
Overall Size 1300*760*1860mm



Description:

This mini scissor lift is easy to use. The control panels are available on the platforms and ground.


The user can control the machine walking and lifting operation directly on the platform, and realize the single person working continuously at high altitude.



Because it is miniature, the height is limited, suit low position aerial work. They are used to provide contractors with temporary access to high-altitude areas that are inaccessible to various workplaces, such as maintenance, construction projects or fire crews emergency access.



The scissor structure enables reliable stability when the lifts rising up, the broad platform and the high loading capacity get the aerial working more efficient and more safely.



Machine Features:
1. Battery Operated with Hydraulic Drive Motor
2. Extension Platform to reach the site quickly
3. Fork Lift Slots for easy transportation
4. Automatic display of fault code for easy maintenance
5. Low Noise, Non-Pollution and Strong Adapbility for various using sites

Safety Features:
1. Auxiliary Lowering Devices
2. Anti-burst System
3. Emergency Stop Button
4. Tilting Protection System
5. Charging Protection System
6. Automatic Pothole Protection
7. Automatic Braking System
8. Buzzer and Horn






Standard Configurations:
Self-lock Gate On Platform
Non Marking Tyre
Automatic Brake System
Emergency Lowering System
Emergency Stop Button
Horn
All motion alarm
Forklift Pockets
Charger Protection
Safety Brackets
Hour meter
Folding Guardrails
Powder coating painting
Flashing Beacon
On-board Diagnostic System
Folding Guardrails

Optional Configuration:
Platform Extension
AC power to the platform
Working Light on the platform
Cylinder Holding valve
Tilting Sensor with Alarm


Applications:
1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.
2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.

Why choose Our Self-propelled Scissor Lift?
· High Quality
· Reasonable Price
· Good after Service
· 1 Year Warranty
· More Than 10 Years Experience


Communication with Customers

A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

B: The main difference is from the structure and the material

The scissor lift is in scissor structure with steel material

The aerial work platform is in mast structure with aluminum material



A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

1.Strict quality control system on the whole process of production

2.Imported key arts to ensure the high quality of our products

3.Advanced equipment and tools for examination and quality control

4.100% strict examining products before shipment

5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



A: What is the delivery time for your goods?

B: it is 30days after order confirmation



A: What spare parts that you can offer?

B: We provide following spare parts freely for your maintenance of the machine:

Item Quantity
Fuse 3
"O" Rubber Seals Φ11 3
Wrench 1
Pressure Oiler 1
Cross Screwdriver 1
Straight Screwdrive 1



A: How long is your quality guarantee period?

B: We have one year warranty.
