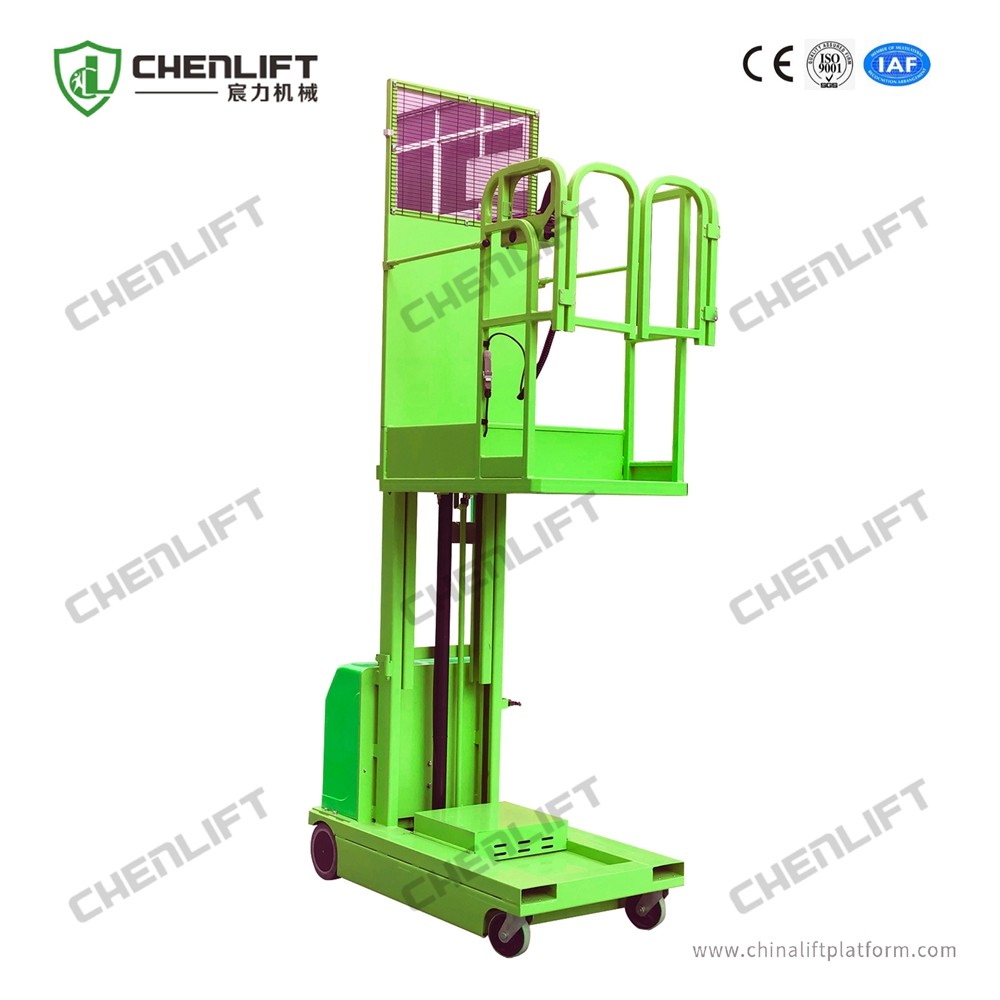

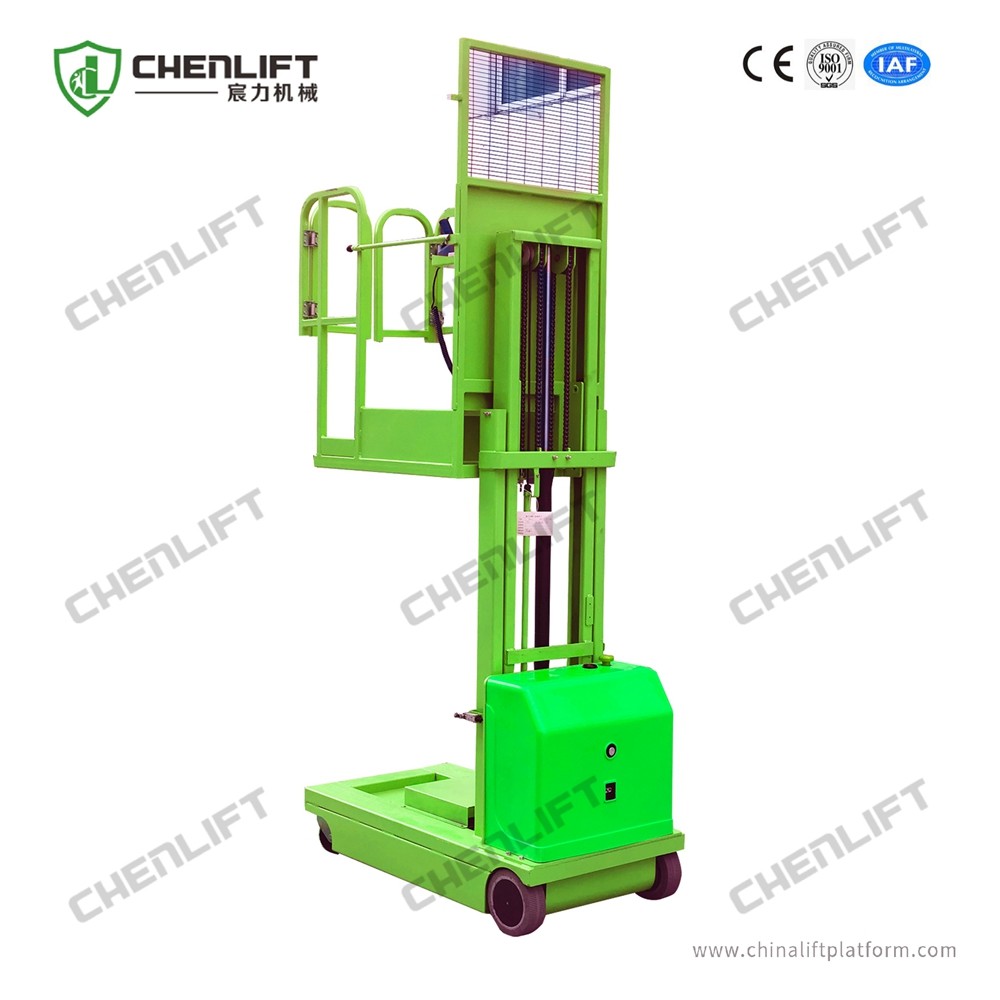

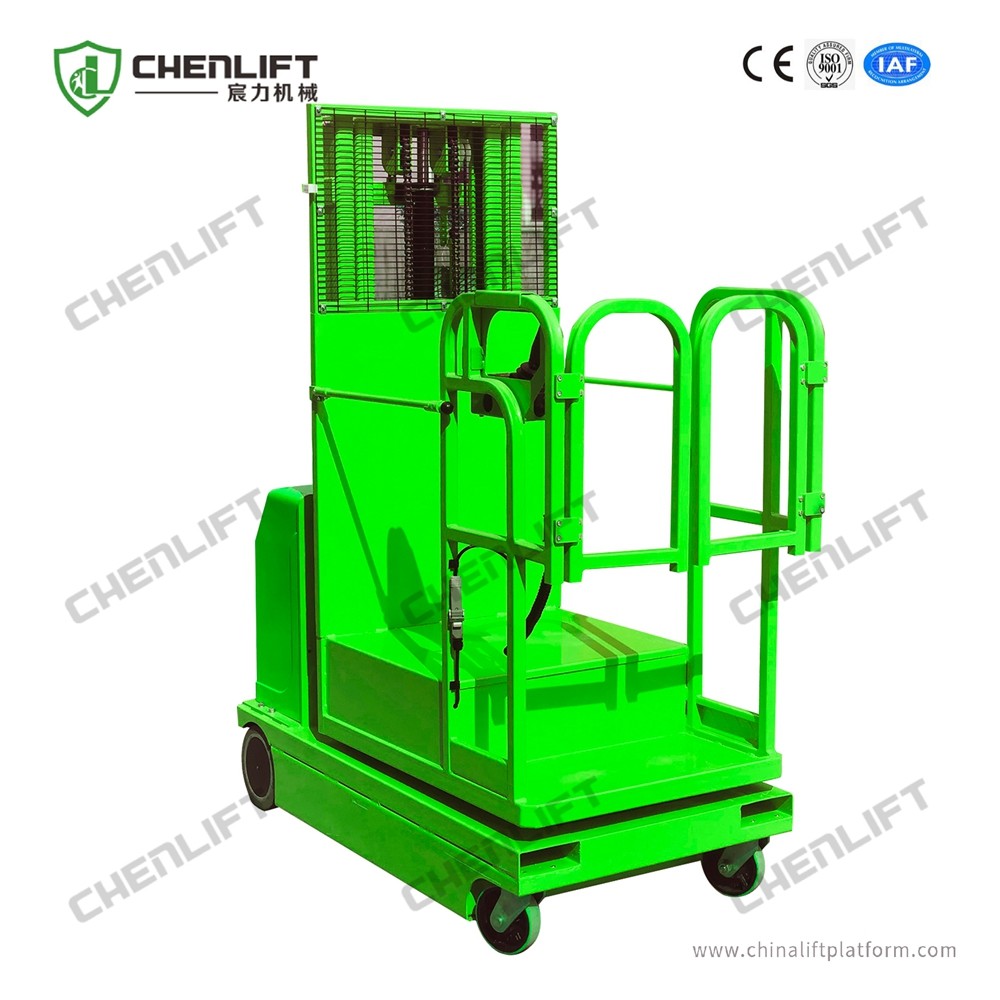

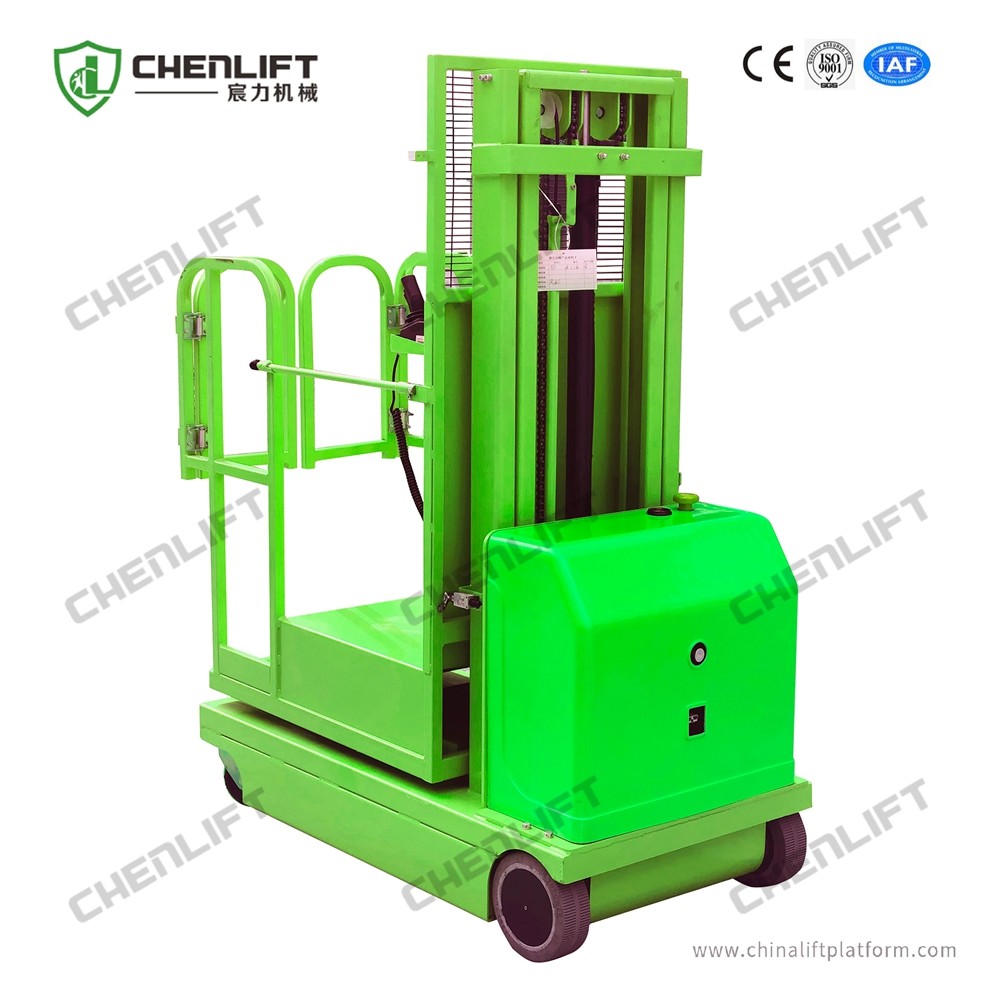

Electric 300kg Order Picker with 4.12m Machine Height
Self-propelled Aerial Order Picker is the best equipment for materials picking and handling. It is widely used in warehouse and supermarket. Easy moving and poperating. Lift or fall steadily. Safe and reliable. Suitable for order picking application in distribution warehouse.
Self propelled Aerial Order Picker is widely used in the fields of hotel, building, warehouse, library, supermarket rack, workshop, elevator portal, supermarket, subway station, and other office building high altitude maintenance.
|Max. Platform Height||2.70m||3.30m||4.00m||4.50m|
|Max. Machine Height||4.12m||5.00m||5.40m||6.00m|
|Min. Turning Radius||1600mm||1600mm||1600mm||1600mm|
|Max. Climbing Capacity||15%-20%||15%-20%||15%-20%||15%-20%|
It moves and lifts all by battery power.
Operator can control moving, lifting, turning and all other operations when stand on the platform.
The light weight and maneuverability make it convenient to use in supermarket and warehouse.
Intelligent self propelled control system.
Zero-turn radius and compact design provide access in and around confined work areas.
Low gravity center provides good stability.
Structure Principle & Instruction
1. Charging the battery before you use it. After charging up the battery, please cut off the power, then unplug it.
2. Lift the platform to its top position to check that there is enough hydraulic oil in the system. Refill if necessary with YA-N32 or a similar oil.
3. Turn the key and switch on, the display indicator shows. Choose the mode of rising, control the height by Joy-stick.
4. Change the mode to walk. Also can be controlled by Joy-stick, the "rabbit" pattern indicates speed up, the "tortoise" pattern indicates speed down.
Handling & Storage
The Self-propelled Aerial Order Picker must be stored in a horizontal position, in order to prevent the oil and the electrolyte will overflow, when transporting and storing.
When stores it, it must be kept clean and keep far away from the damp and bad climate. The temperature of environment should not be more than 40ºC.
If the battery isn't worked for a long time, it should be recharged timely.

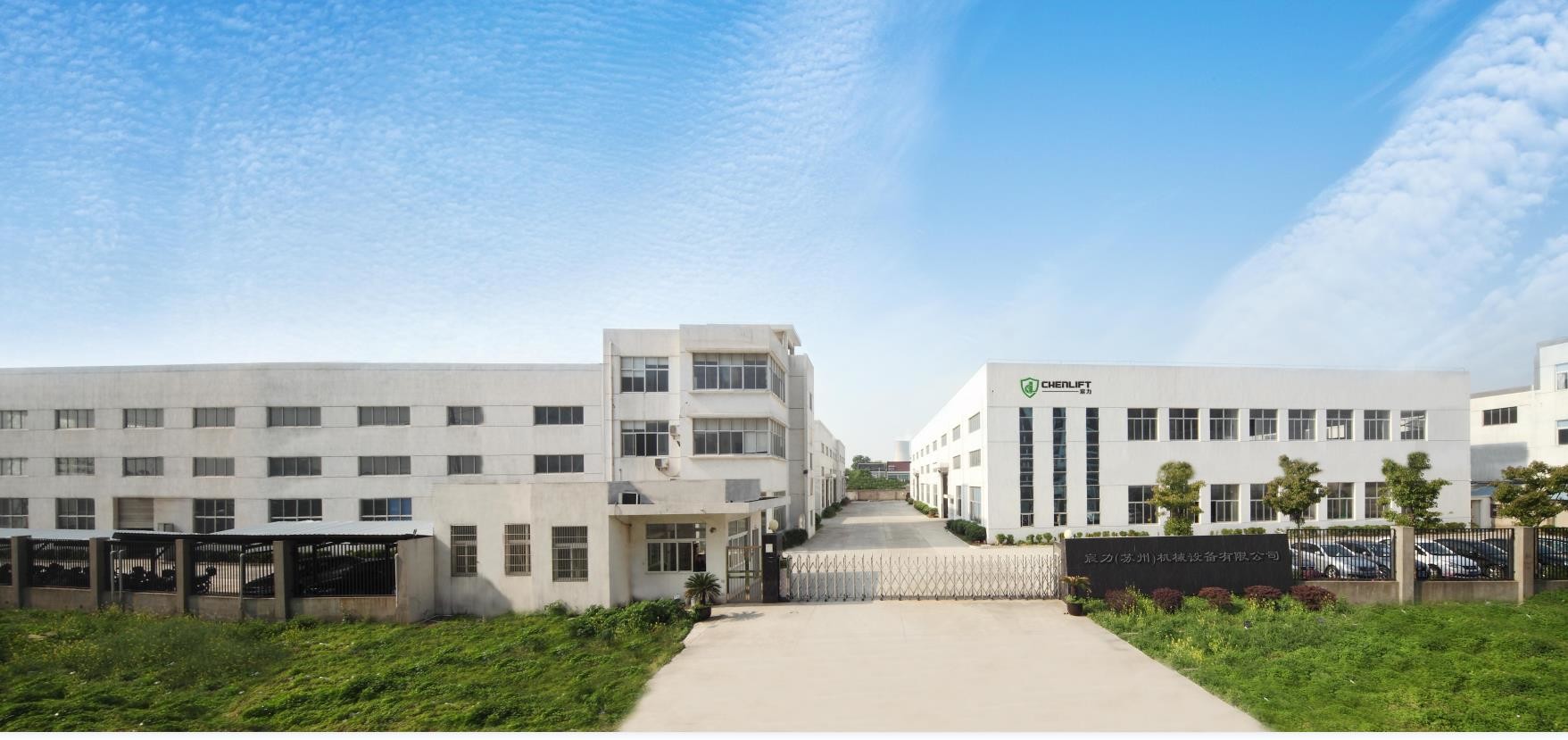

As a subsidiary company of Bestmax Heavy Industry Company Limited, Chenlift (Suzhou) Machinery Co Ltd. Is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.
Other Related Products
Communication with Customers:
A: How is that for quality control in your factory?
B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly
1. Strict quality control system on the whole process of production
2. Imported key arts to ensure the high quality of our products
3. Advanced equipment and tools for examination and quality control
4. 100% strict examining products before shipment
5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.
A: What is the delivery time for your goods?
B: It is 30 days after order confirmation.
A: How long is your quality guarantee period?
B: We have one year warranty.
