|Place of Origin:||China|
|Certification:||CE ISO9001:2008 IPAF member|
|Minimum Order Quantity:||1 set|
|Packaging Details:||PVC Film Wrapped in Pallets or in wooden Case|
|Delivery Time:||30 days after order confirmed|
|Payment Terms:||T/T or L/C|
|Supply Ability:||3000 Units Per Year|
|Max. Platform Height:||4.5m||Max. Machine Height:||6m|
|Loading Capacity:||300kg||Platform Size:||600*640 Mm|
|Lifting Motor:||24V/1.6kw||Overall Weight:||680kg|
warehouse order picker,
vertical order picker

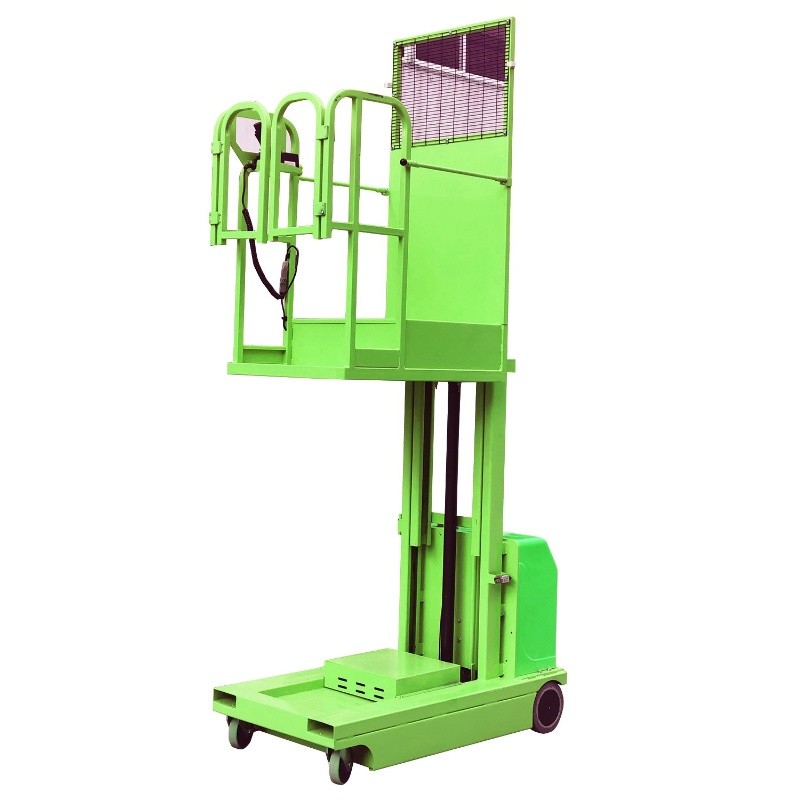

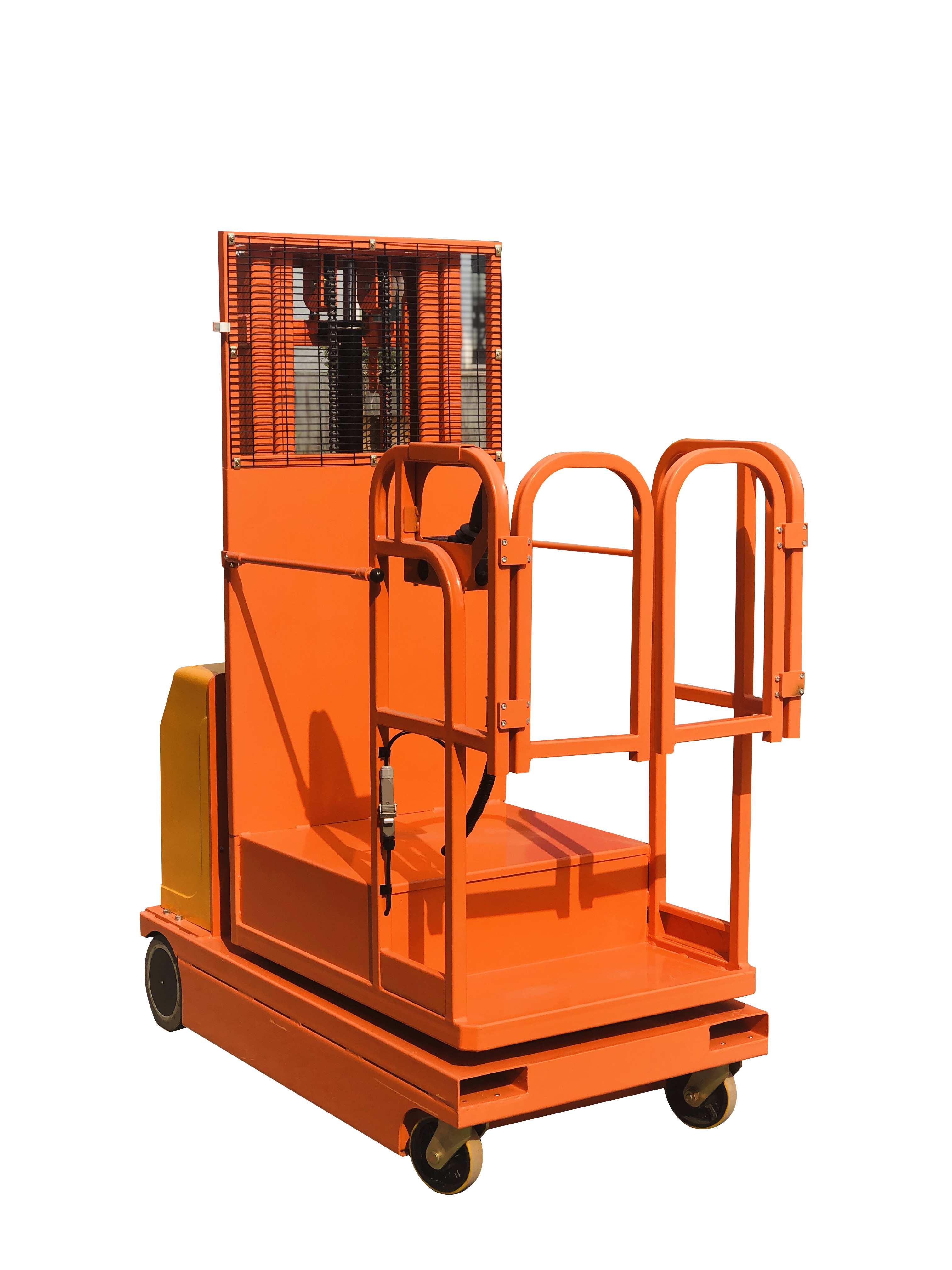

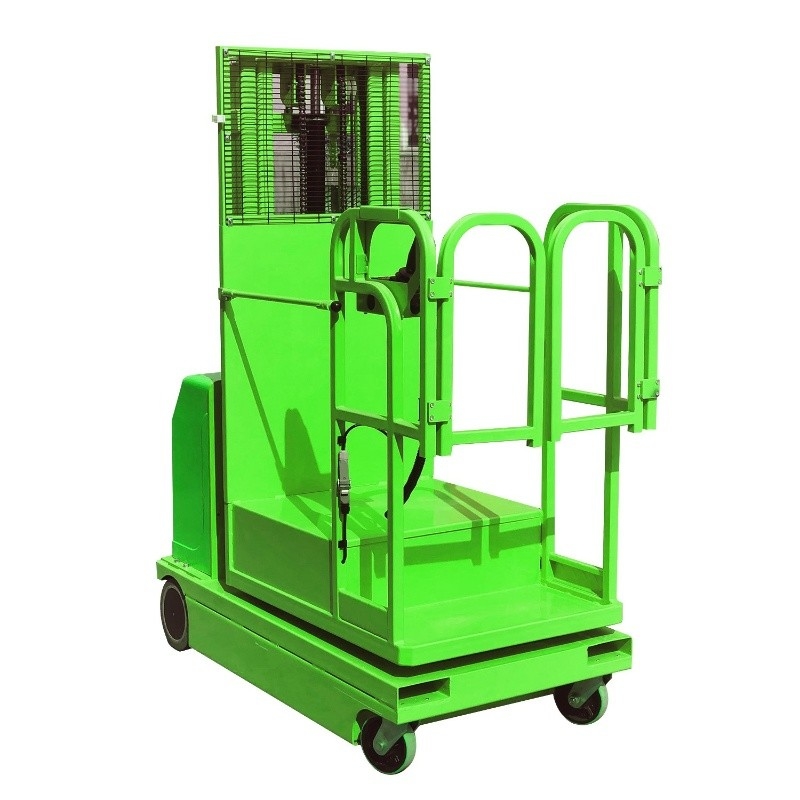

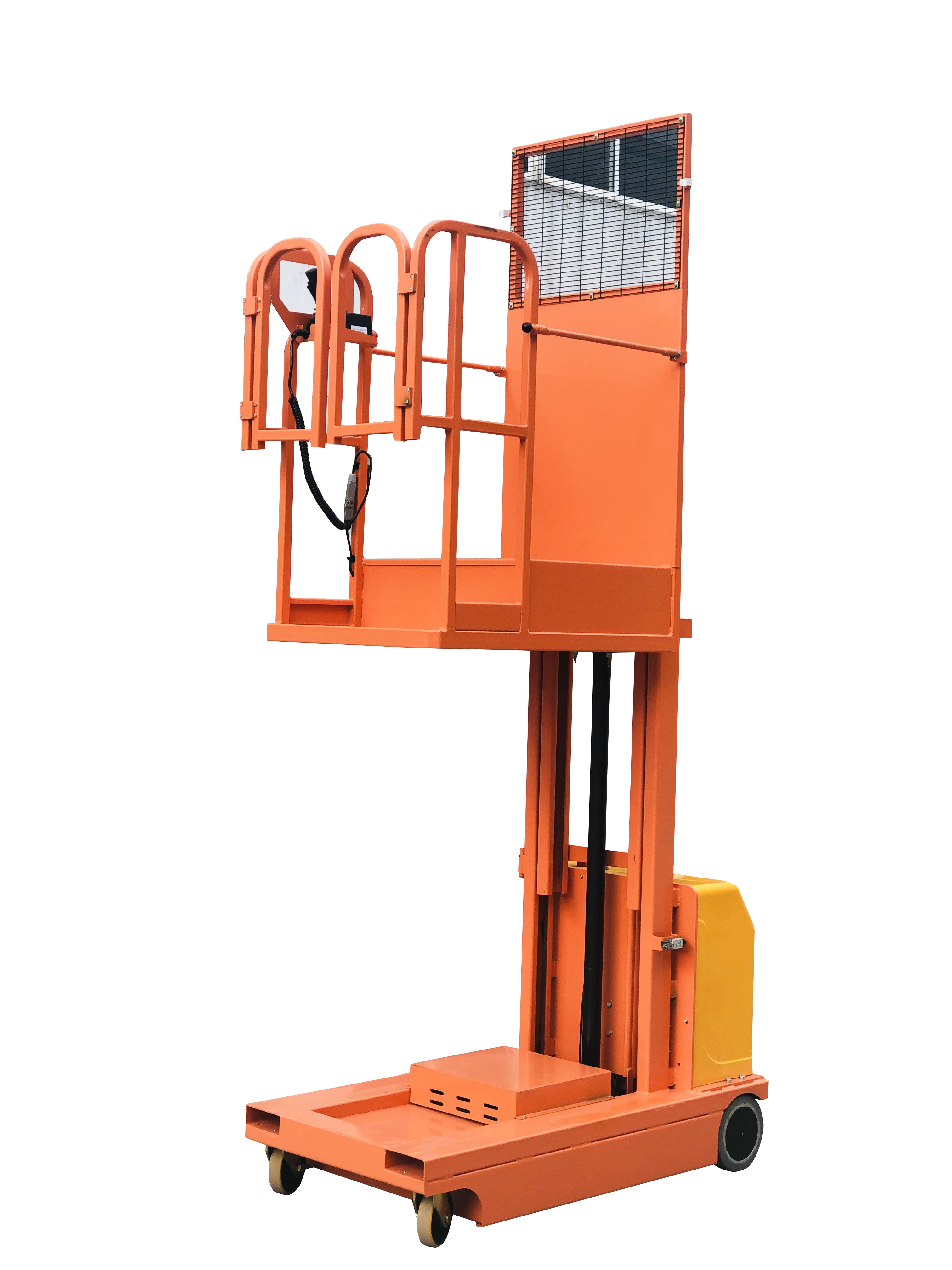

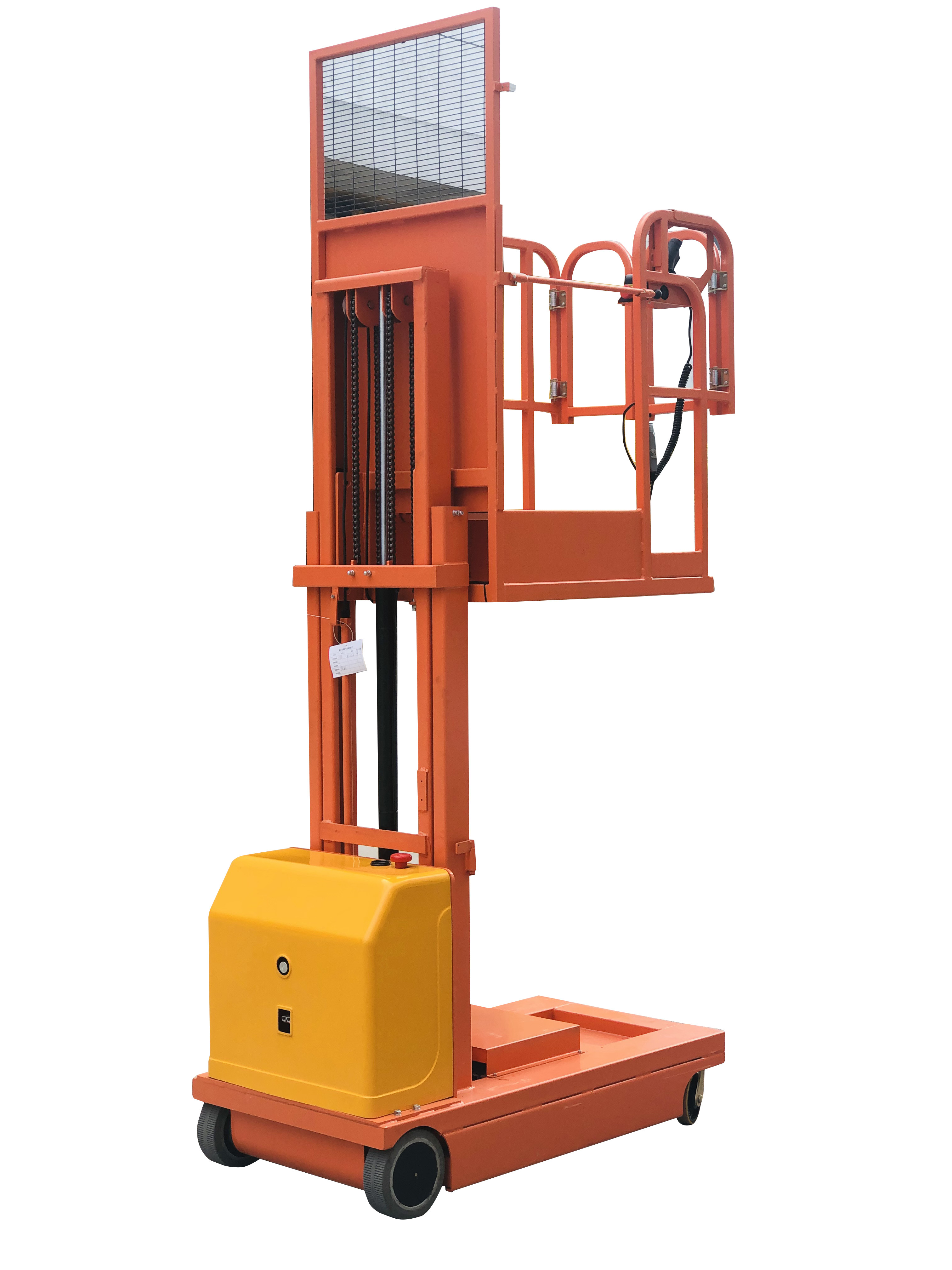

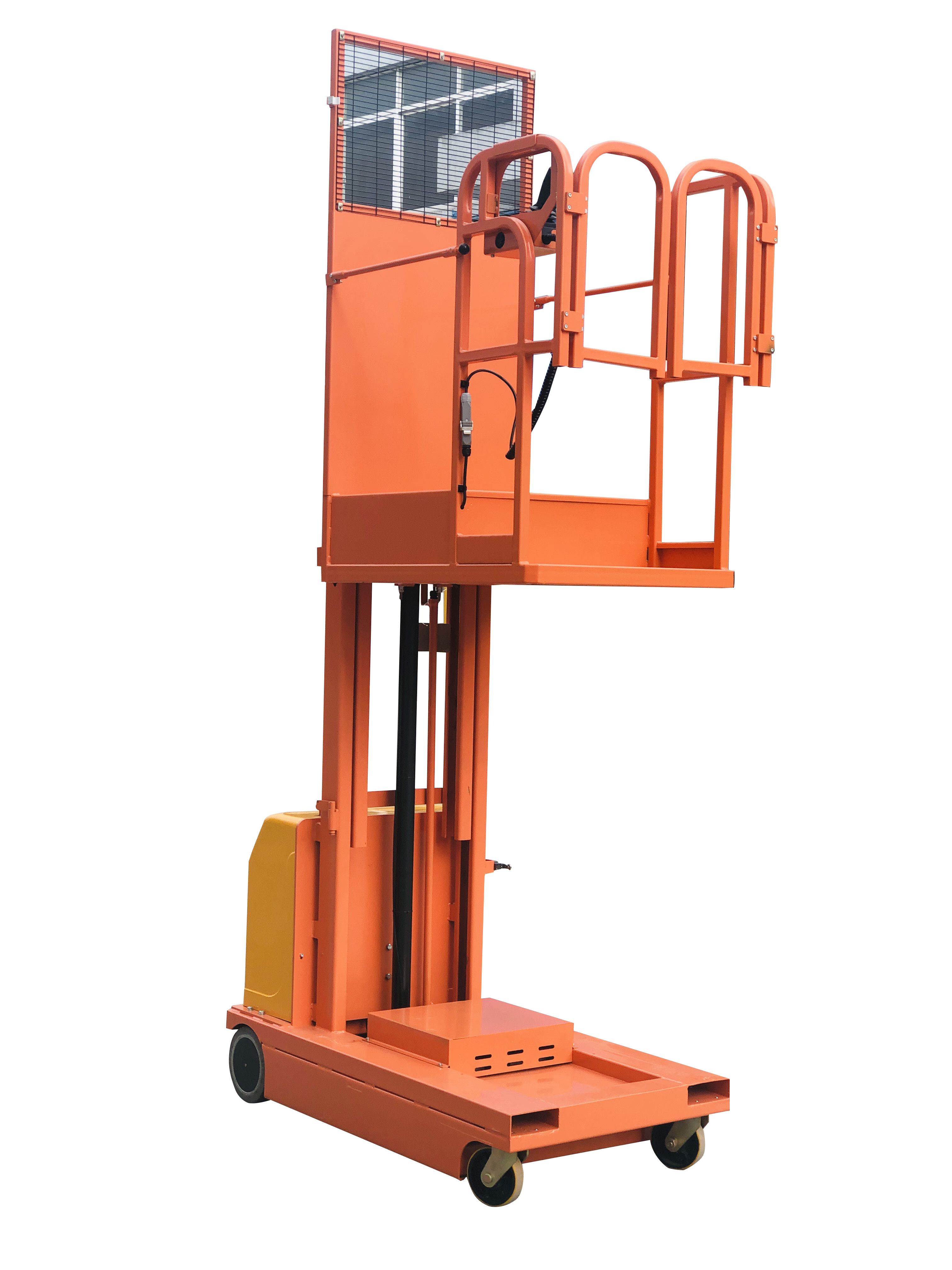

4.5m Battery Powered Full Electric Self Propelled Aerial Order Picker
Self propelled order picker is equipped with two driving motor. Operator control the multi-function handle on the platform to make it move and turn.
Self propelled Aerial Order Picker is widely used in the fields of hotel, building, warehouse, library, supermarket rack, workshop, elevator portal, supermarket, subway station, and other office building high altitude maintenance.
|Max. Platform Height||2.70m||3.30m||4.00m||4.50m|
|Max. Machine Height||4.12m||5.00m||5.40m||6.00m|
|Min. Turning Radius||1600mm||1600mm||1600mm||1600mm|
|Max. Climbing Capacity||15%-20%||15%-20%||15%-20%||15%-20%|
It moves and lifts all by battery power.
Operator can control moving, lifting, turning and all other operations when stand on the platform.
The light weight and maneuverability make it convenient to use in supermarket and warehouse.
Intelligent self propelled control system.
Zero-turn radius and compact design provide access in and around confined work areas.
Low gravity center provides good stability.
Self-closing gate on platform
Drivable at full height
Automatic brake system
Emergency lowering system
Emergency stop button
Cylinder holding valve
Structure Principle & Instruction
1. Charging the battery before you use it. After charging up the battery, please cut off the power, then unplug it.
2. Lift the platform to its top position to check that there is enough hydraulic oil in the system. Refill if necessary with YA-N32 or a similar oil.
3. Turn the key and switch on, the display indicator shows. Choose the mode of rising, control the height by Joy-stick.
4. Change the mode to walk. Also can be controlled by Joy-stick, the "rabbit" pattern indicates speed up, the "tortoise" pattern indicates speed down.

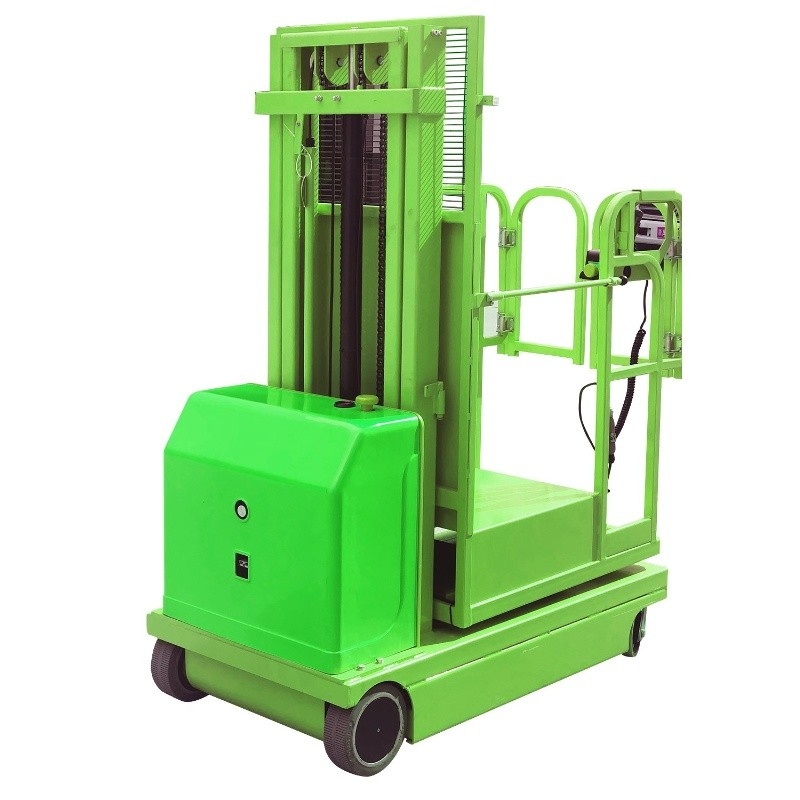

The structure of Self-propelled Aerial Order Picker is as below:
Handling & Storage
The Self-propelled Aerial Order Picker must be stored in a horizontal position, in order to prevent the oil and the electrolyte will overflow, when transporting and storing.
When stores it, it must be kept clean and keep far away from the damp and bad climate. The temperature of environment should not be more than 40ºC.
If the battery isn't worked for a long time, it should be recharged timely.
As a subsidiary company of Bestmax Heavy Industry Company Limited, Chenlift (Suzhou) Machinery Co Ltd. Is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.
