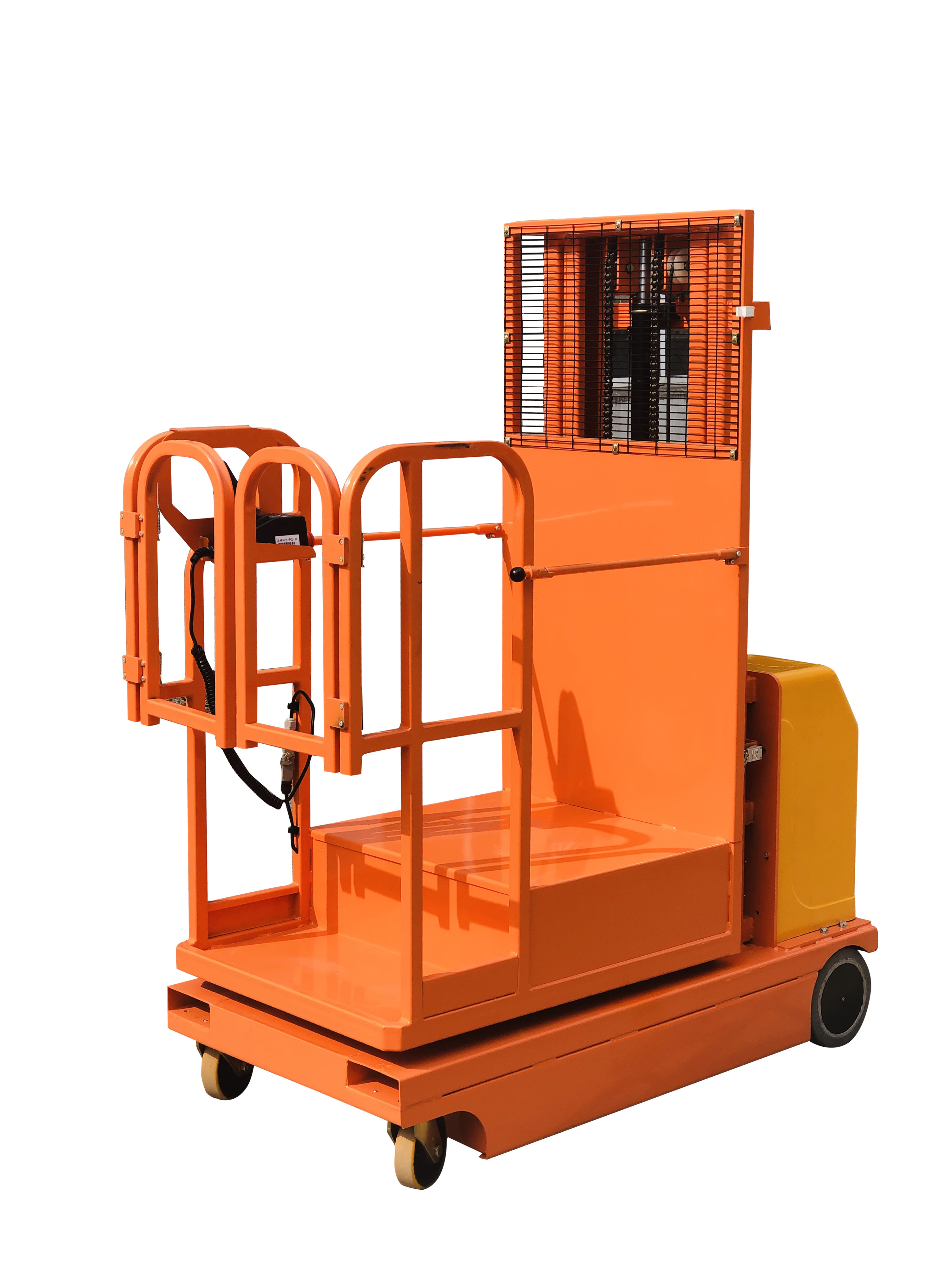

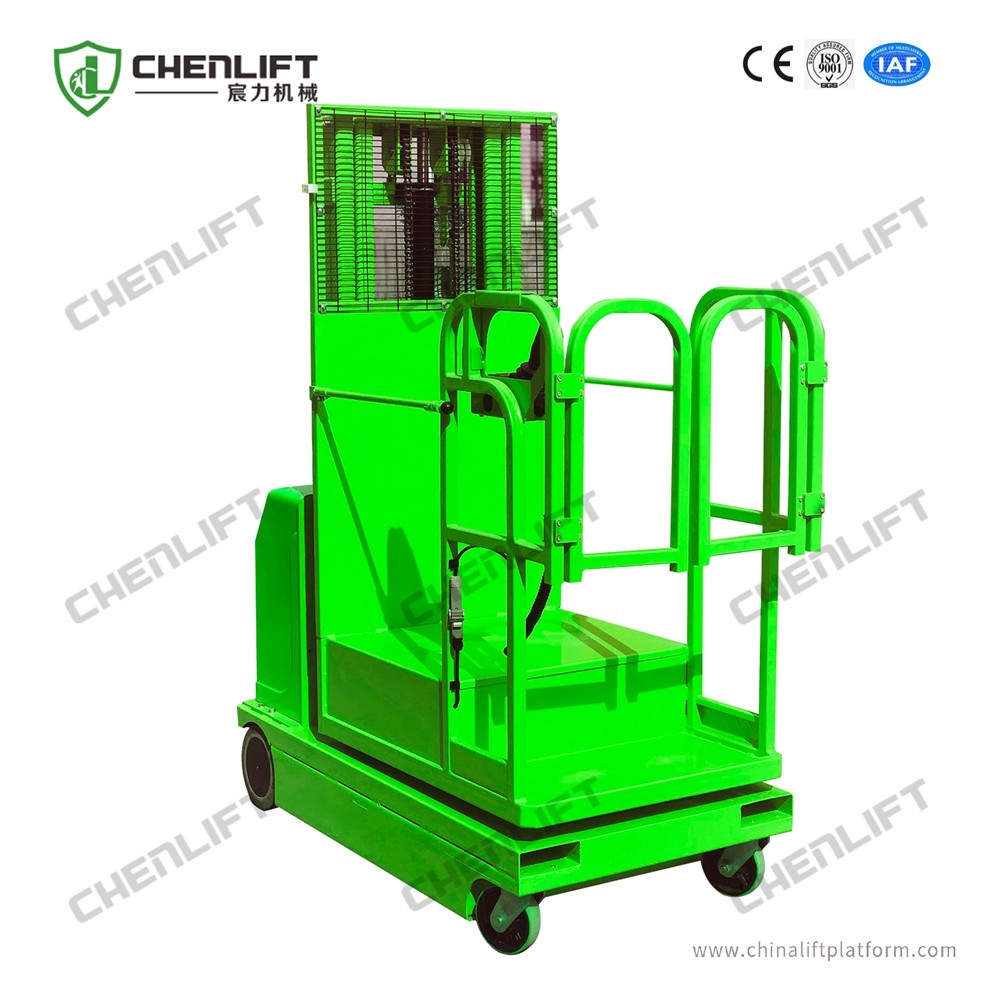

4.5m Aerial Order Picker Equipment Full Electric Automatic Model Self Propelled

4.5m Aerial Order Picker Equipment Full Electric Automatic Model Self Propelled

  • 4.5m Aerial Order Picker Equipment Full Electric Automatic Model Self Propelled
  • 4.5m Aerial Order Picker Equipment Full Electric Automatic Model Self Propelled
4.5m Aerial Order Picker Equipment Full Electric Automatic Model Self Propelled
Product Details:
Place of Origin: China
Brand Name: BestmaxLift
Certification: CE ISO9001:2008 IPAF member
Model Number: FSEP3-4.5
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PVC Film Wrapped in Pallets or in wooden Case
Delivery Time: 30 days after order confirmed
Payment Terms: T/T or L/C
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Max. Platform Height: 4.5m Max. Machine Height: 6m
Loading Capacity: 300kg Platform Size: 600*640 Mm
Lifting Motor: 24V/1.6kw Overall Weight: 680kg
High Light:

warehouse order picker

,

order picker platform

 4.5m Full Electric Automatic Model Self Propelled Aerial Order Picker



Product Description
Self propelled aerial order picker is one kind of material handling equipment, it is mainly used to pick up cargo from rack. Operator can control moving, lifting and turning when stand on the platform, which highly improved the working efficiency. As it is lighter in weight, easy to implement by single person, flexible and convenient to operate, it is the best choice for stacking and reclaiming warehouses and supermarkets.

Self propelled order picker is equipped with two driving motor. Operator control the multi-function handle on the platform to make it move and turn.

  • Mini design, very convenient in tight warehouse operation
  • Automatic electronic overload protection system ensure safety
  • Maintenance free and sealed batteries, automatic charger
  • Quick change attachment options available
  • Loading capacity: 300kg
  • Lifting height: 2700mm/3300mm/4000mm/4500mm

Application
Self propelled Aerial Order Picker is widely used in the fields of hotel, building, warehouse, library, supermarket rack, workshop, elevator portal, supermarket, subway station, and other office building high altitude maintenance.



Features:
It moves and lifts all by battery power.
Operator can control moving, lifting, turning and all other operations when stand on the platform.
The light weight and maneuverability make it convenient to use in supermarket and warehouse.
Intelligent self propelled control system.
Zero-turn radius and compact design provide access in and around confined work areas.
Low gravity center provides good stability.

Major Parameter of Self-propelled Aerial Order Picker

Model FSEP3-2.7 FSEP3-3.3 FSEP3-4.0 FSEP3-4.5
Loading Capacity 300Kg 300Kg 300Kg 300Kg
Max. Platform Height 2.70m 3.30m 4.00m 4.50m
Max. Machine Height 4.12m 5.00m 5.40m 6.00m
Platform Size 600*640mm 600*640mm 600*640mm 600*640mm
Stowed Length 1.53m 1.53m 1.62m 1.62m
Stowed Width 0.70m 0.70m 0.70m 0.70m
Stowed Height 1.83m 2.13m 1.84m 2.00m
Min. Turning Radius 1600mm 1600mm 1600mm 1600mm
Max. Climbing Capacity 15%-20% 15%-20% 15%-20% 15%-20%
Ground Clearance 40mm 40mm 40mm 40mm
Driving Motor 2*24V/0.4Kw 2*24V/0.4Kw 2*24V/0.4Kw 2*24V/0.4Kw
Lift Motor 24V/1.6Kw 24V/1.6Kw 24V/1.6Kw 24V/1.6Kw
Battery 2*12V/150Ah 2*12V/150Ah 2*12V/150Ah 2*12V/150Ah
Charger 24V/15A 24V/15A 24V/15A 24V/15A
Overall Weight 430Kg 450Kg 660Kg 680Kg


Structure Principle & Instruction
1. Charging the battery before you use it. After charging up the battery, please cut off the power, then unplug it.
2. Lift the platform to its top position to check that there is enough hydraulic oil in the system. Refill if necessary with YA-N32 or a similar oil.
3. Turn the key and switch on, the display indicator shows. Choose the mode of rising, control the height by Joy-stick.
4. Change the mode to walk. Also can be controlled by Joy-stick, the "rabbit" pattern indicates speed up, the "tortoise" pattern indicates speed down.

The structure of Self-propelled Aerial Order Picker is as below:

4.5m Aerial Order Picker Equipment Full Electric Automatic Model Self Propelled 0

4.5m Aerial Order Picker Equipment Full Electric Automatic Model Self Propelled 1
