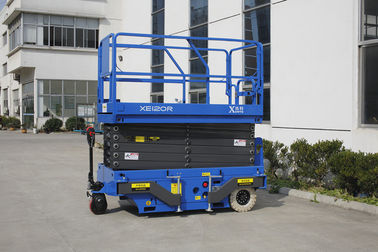

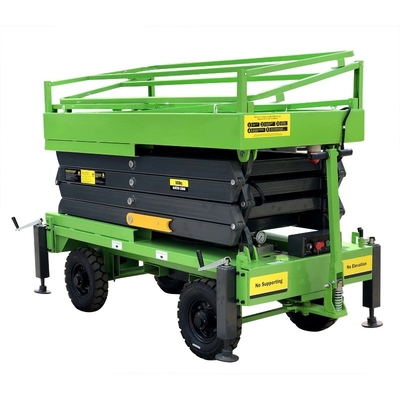

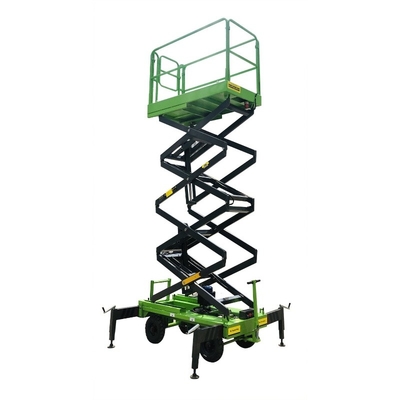

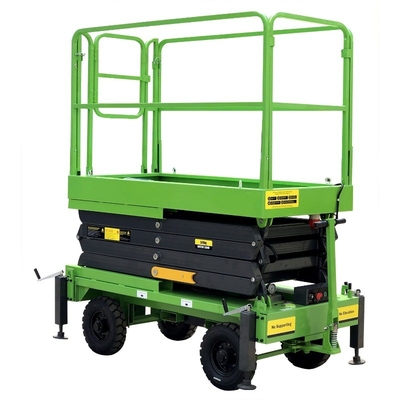

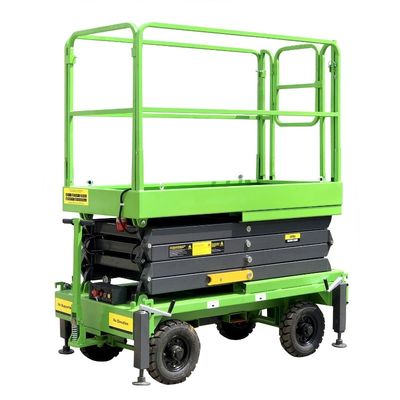

12M Mobile Scissor Lift With Pulling Device

Basic Information
Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE ISO9001:2008 IPAF member
Model Number: MK1200
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wrapped in pallet
Delivery Time: 30 days
Supply Ability: 800 set per year
Detail Information
Model: Mobile Scissor Color: Green
Material: High Strength Magnese Steel
Highlight:

scissor lift mobile

,

mobile aerial work platform


Product Description

12M Mobile Scissor Lift With Pulling Device


Quick Detail:


Name Mobile Scissor Lift Brand Name CHEN LIFT
Loading Capacity 300Kg Platform Height 12m
Platform Size 2.25*1.15 Color Green
Lifting Power 3Kw Power Supply AC



Description:


This is our upgrade mobile scissor lift type, electrical pulling device is its standard figure. For the bearing, this modle is using sel-lubricant type, so there is no need to add lubricant to it, and it is also snti dust. this bearing has long using period. The external pin can increase the stability of the machine alot.



Main Features:

1. Pointing control of lifting up and down.

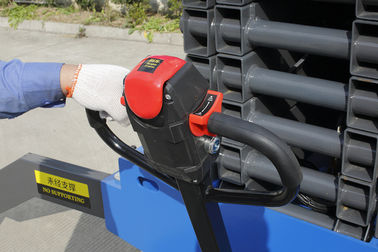

2. Driven by electricity, you can control forward and backward on ground, only the machine is totally closed otherwise the pulling device can not work

3. Use slider design which can minimize the orbit a lot, now the orbit of our machine in its highest position is 5cm and this is much smaller than the standard 20cm.

4. The surface of the machine has been derusted by the blasting machine, two bottom-two surface way to paint the machine.

5. Detachable fence on the platform

6. Manganese steel lifting arm in high strength with rectangle shape

7. Anti skid floor in platform

8. The control panels are available on the platforms and ground.

9. Fine grinding cylinder in good sealing performance

10.Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas.



Optional Features:


Extension Platfrom

Loading Capacity: 150Kg

Platform Size: 900*1000mm



Safety Precaution:


1.The operation voltage on the platform is 24V

2.Emergency stop button on the paltform and ground

3.Auxiliary platform lowering

4.Telescopic legs on the chassis

5.Explosion-proof device for oil tube

6.Low battery protector

7. Charging Protection system



Major Parameters

  • Model: MK1200
  • Loading Capacity     300kg
  • Maximum Height     12000mm
  • Minimum Height       1650mm
  • Platform Size            2250*1150mm
  • Lifting Power             3kw
  • Power Voltage          1phase/220V/50HZ
  • Lifting Time              100s
  • Cylinder                    Ф100(2Pcs)
  • Gear Pump                6ml/r
  • Total Weight              2550kg
  • Measurement            2650*1350*1650mm


Configurations:

  • Electric system: Schneider contactor, SANLICO button, CHNT electrical
  • Hydraulic System: Hycman brand power pack , sealing
  • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
  • Platform Surface : Antiskid checkered plate
  • Tire: Ø500-8 Inflated tires
  • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose


Optional Configuration:

  • Power Supply: 3phases/380V/50HZ; DC 24V ; manual pump
  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
  • Extension Platform
  • Rubber Solid Tire
  • Flame Proof Control Cabinet


Applications:


1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.



Why to choose Chen Lift Mobile Scissor Lift?

· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience



Communication with Customers


A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

B: The main difference is from the structure and the material

The scissor lift is in scissor structure with steel material

The aerial work platform is in mast structure with aluminum material


A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

1.Strict quality control system on the whole process of production

2.Imported key arts to ensure the high quality of our products

3.Advanced equipment and tools for examination and quality control

4.100% strict examining products before shipment

5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.


A: What is the delivery time for your goods?

B: it is 30days after order confirmation


A: What spare parts that you can offer?

B: We provide following spare parts freely for your maintenance of the machine:

Item Quantity
Fuse 3
"O" Rubber Seals Φ11 3
Wrench 1
Pressure Oiler 1
Cross Screwdriver 1
Straight Screwdrive 1


A: How long is your quality guarantee period?

B: We have one year warranty.
