5.9m Height 240kg Load Mini Electrical Self Propelled Scissor Lift with CE Certificate for Warehouse

5.9m Height 240kg Load Mini Electrical Self Propelled Scissor Lift with CE Certificate for Warehouse
5.9m Height 240kg Load Mini Electrical Self Propelled Scissor Lift with CE Certificate for Warehouse

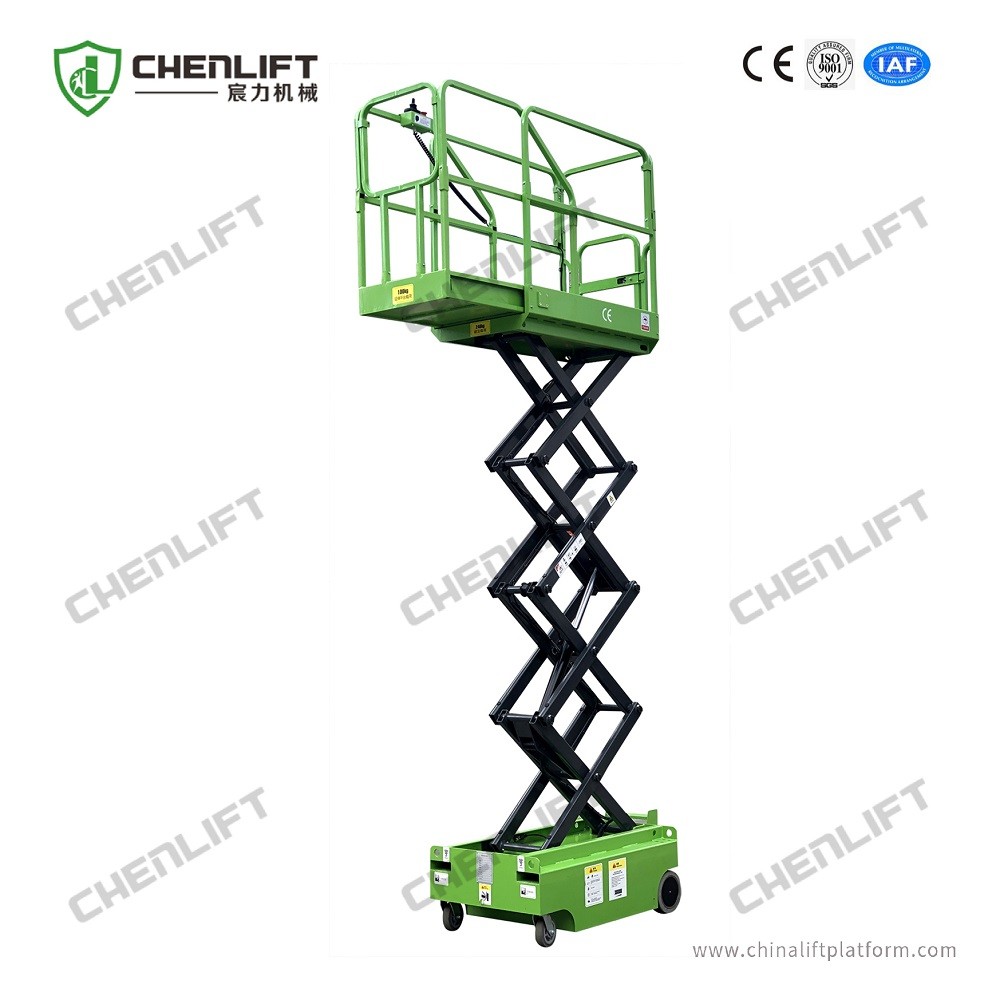

Large Image :  5.9m Height 240kg Load Mini Electrical Self Propelled Scissor Lift with CE Certificate for Warehouse

Product Details:

Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE ISO9001:2008 IPAF member
Model Number: MX390R

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Wrapped in pallets
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 200 units/month
Detailed Product Description
Model: MX390R Loading Capacity: 240 Kg
Platform Size: 1.15* 0.6 M Working Height: 5.9 M
Platform Height: 3.9 M Optional Extension: 0.55 M
Optional Extension Load: 100 Kg Color: Green Or Any Other Color Can Be Customized
Driving: DC Motor Certificate: CE; IPAF; ISO
High Light:

self propelled lift


scissor lift self propelled

5.9m Height 240kg Load Mini Electrical Self Propelled Scissor Lift with CE Certificate for Warehouse



Quick Detail:

Name Mini Self-propelled Scissor Lift Brand Name CHEN LIFT
Loading Capacity 240Kg Platform Height 3.9m
Platform Size 1.15*0.6m Color Green
Gradeability 25% Wheelbase 1.03
Ground Clearance 0.05 Power Source 2*12V 55AH

Mini self-propelled scissor lifts are also called as mini electric scissor lifts or electric elevated work platform; they are used to provide temporary access for contractors to high, inaccessible areas on a variety of job sites such as maintenance and construction work. They are designed to lift limited weights and capable of being fully operated by a single person. It is unique in carrying capacity and a wide platform that can bring more workers and tool set, whether indoors or outdoors.

Main Features:


1. Roll-out extension platform provide more workspace.

2. Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas.

3. Different models are available with the maximum working height at 6m to 16m

4. Zero-turn radius and compact design provide access in and around confined work areas.

5. 25% grade ability when driving on slopes.

6. On-board diagnostic help operators troubleshoot on the fly and make adjustments in the field to maximize uptime

7. Single extension platform provide more workspace.

8. Manganese steel lifting arm in high strength with rectangle shape

9. The antiskid design endows the platforms with excellent antiskid property

10. The control panels are available on the platforms and ground.

11. Fine grinding cylinder in good sealing performance

12. Equipped with safeguard valve to avoid hydraulic pipe rupture

13. Swing-out tray for easy maintenance access


Models MX390R
Working height max(m) 3.9
Platform height max(m) 5.9
Outreach(m) 0.55
Lifting capacity(kg) 240
Lifting capacity(kg)(Extended platform) 100
Weight(kg) CE/AUS Standard 660
Platform size(L×W)m

1.15*0.6( without extension)

1.15* 0.7( with extension)

The length of platform extended(m) 0.55
Skirting board height(m) 0.05
Stowed size(L×W)m 1.3*0.76
Stowed height(m) 1.94
Height of the machine with platform folded(m) 1.59
Wheelbase(m) 1.03
Length of the machine with platform extended(m) 1.7
Hydraulic tank capacity(L) 15
Gradeability 0.25
Ground clearance(m) 0.05
Pothole protection board ground clearance(m)(down) 0.02
Inside rotation radius(m) 0
Outside turning radius(m) 1.56
Load number max 1
Raised time/Lowering time(s) 32/21
Traction speed(km/h) 4
Safe speed(km/h) 0.5
Vertical tilt° 3
Lateral tilt° 1.5
Power source 2*12V / 55Ah
Tire size 0.23*0.08




  • Standard detachable platform
  • Proportional controls for lift and drive functions
  • Automatic 25Amp battery charger provides strong power for vehicle
  • Safe distance protection when the platform lowering down
  • Manual emergency platform lowing valve. When there is no power the machine can lower down safely.
  • Emergency stops are at both platform and ground control boxes.
  • Drive speed interlock limits speed while elevated
  • Multiple disc brakes provide smooth deceleration
  • When there is no power manual brake release function can move the machine under the circumstance when there is no other forklift, lifting equipment and so on.
  • Pothole guards protect the machine from tilting down when the machine moving on the raised position
  • Non-marking tires make sure there is no damage and no marks on the ground
  • AC wiring to platform
  • Tilt level sensor with audible alarm
  • Beeper horn
  • Hour meter
  • Safety brackets
  • Battery charge indicator
  • Forklift sockets
  • Diagnosis system
  • Fault code display

Optional Configuration:

  • Foldable guardrail
  • Extension platform
  • Motion alarm
  • Platform swing gate
  • Air line to platform
  • Dual flashing beacon
  • Maintenance-free battery
  • Horn
  • Platform work lights
  • Key-type lock sliding door
  • Anti-collision system
  • Head protection stop system

1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.
2, Aerial Working Purpose: machine maintenance, painting, cleaning etc
Why to choose Bestmax Self-propelled Scissor Lift?

  • Much quieter

All Bestmax MX-series adopt high-performance battery power, pollution-free and no emissions, low noise electric pump, can also be used even in the area of high environmental requirements, such as office buildings, hotel, hospital, school and so on.

  • Flexible Operation

Fully proportional joystick control, either lifting or moving, all can easily operate in the joystick.
Zero inside turning radius allowing users to use in a narrow space, and also facilitate changing positions. MX-series has two kinds of moving speed to secure move quickly and lift safely. All the MX-series scissor lifts have extended platforms which makes the operator get close to the work points much easier and breakthrough the space obstacles.

  • Easy maintenance

Bestmax MX-series give full consideration to the convenience of the users in their daily work maintenance. All the Bestmax Electric Self-propelled Scissor Lifts have fault diagnosis system, this makes the user can find the point of failure in one time. Door-open control box and battery box allow maintenance person to find the maintenance point quickly and easily. Also it is easier to change the spare parts. The scissor booms repair bracket, so that the user dose not need the help of lifting equipment, boom system can be easily overhaul.
