CHENLIFT (SUZHOU) MACHINERY CO., LTD.
Sales & Support:
 |
| Place of Origin: | CN |
| Brand Name: | CHENLIFT |
| Certification: | ISO; CE; IPAF |
| Model Number: | MK300 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | USD 1900-3900 unit |
| Packaging Details: | Packed with Pallet, Wrapped with Film |
| Delivery Time: | Within 15 days after confirmed the order |
| Payment Terms: | L/C T/T and more |
| Supply Ability: | 3000 units per month |
| Material: | Manganese Steel | Load Capacity: | 240 Kg |
|---|---|---|---|
| Max Platform Height: | 3 M | Max Working Height: | 5m |
| Platform Size: | 1.15*0.6 M | Motor Power: | 0.8 Kw |
| Highlight: | small electric scissor lift,mini platform lift |
||

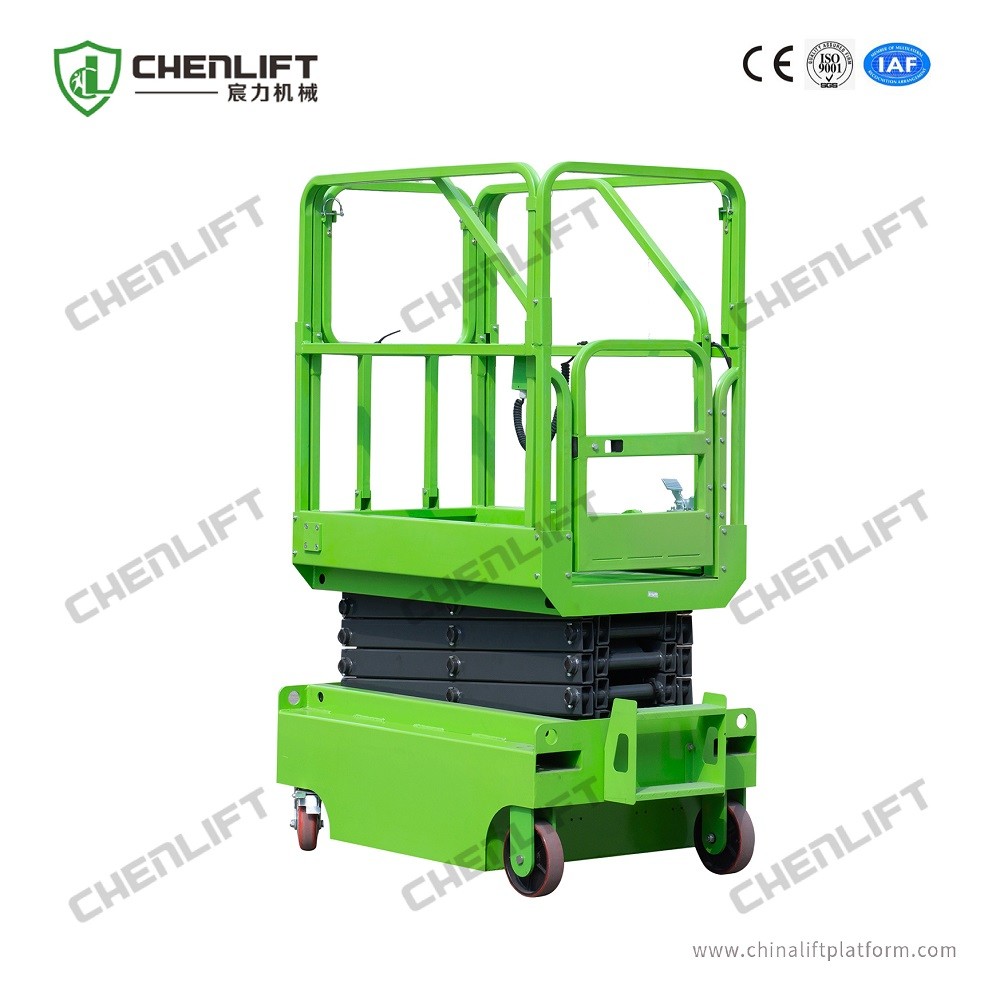

3m Platform Height 240kg Load Mini Lifting Equipment with DC Power
Product Description
Mini Scissor Lift has compact design structure(without outrigger, so the preparation time will be less, and enhance the working efficiency) less weight(can push easily by manpower)
The operators can operate the machine up&down on platform and ground. (It lifts by battery power DC12V)
| Model | MK300 | MK390 |
| Load | 240 kg | 240 kg |
| Platform Height | 3 m | 3.9 m |
| Working Height | 5 m | 5.9 m |
| Platform Size | 1.15* 0.6 m (No Extension) 1.15* 0.7 m (With Extension) |
1.15* 0.6 m (No Extension) 1.15* 0.7 m (With Extension) |
| Optional Configuration: Extension Platform |
Extension Length: 0.55 m Extension Load: 100 kg |
Extension Length: 0.55 m Extension Load: 100 kg |
| Lift Motor | 12v/0.8 kw | 12v/0.8 kw |
Main Feature
1.Pointing control of lifting up and down.
2.Manganese steel lifting arm in high strength with rectangle shape
3.Anti skid floor in platform
4 The control panels are available on the platforms and ground.
5. Fine grinding cylinder in good sealing performance
6.Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas.
Safety Precautions
1.The operation voltage on the platform is 24V
2.Emergency stop button on the paltform and ground
3.Auxiliary platform lowering
4.Hose burst valve safety
5.Rain-proof design electirc cabinet
6. Fence on the platform
Application for Scissor Lift
Scissor lift platform can be used in the factory, warehouse, public places , stations and so on.
It provides you a good choice for aerial working.
Our Company
Chenlift (Suzhou) Machinery Co Ltd. Is a Suzhou-based world-wide supplier of lifting equipment. With over 20 years of experience in the lifting industry, we have the knowledge to assist you in aquiring your next lifting equipment.
Our Service
1. We can design the customized the machines based on your requirement.
2. After knowing your detailed need, the right models will be recommened to you with good price.
3. Shipment can be arranged from our port to your destination port.
4. Opetion video can be sent to you if needed.
5. Parts of machines can be sent to you by express within 7 days if needed.
Contact Person: Mr. Aijun Liu
Tel: 0086-13951119762
Fax: 86-512-67339762
