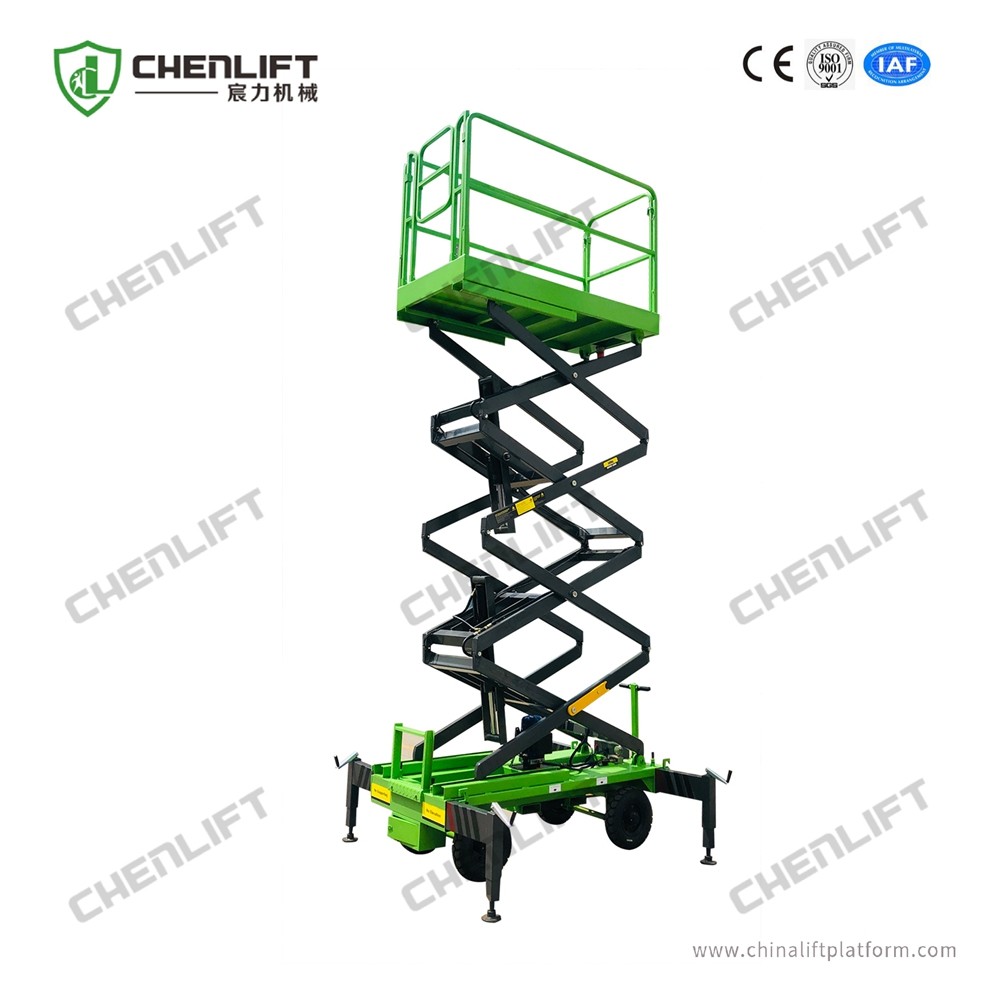

500kg Load Mobile Scissor Lift with Outriggers

500kg Load Mobile Scissor Lift with Outriggers
500kg Load Mobile Scissor Lift with Outriggers

Large Image :  500kg Load Mobile Scissor Lift with Outriggers

Product Details:

Place of Origin: Original from China
Brand Name: CHEN LIFT
Certification: CE ISO9001:2008 IPAF member
Model Number: MK600

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: Wrapped in pallets/ wooden case
Delivery Time: 30 days after receipt of deposit
Supply Ability: 100 units/ month
Detailed Product Description
Model: MK600 Lift Capacity: 500kg
Platform Height Max: 6m Working Height Max: 8m
Platform Size: 1.85* 0.88 M Weight: 650kg
Color: Customizable Material: Manganese Steel
Standard Power: AC Power
High Light:

scissor lift mobile


mobile aerial work platform

500kg Load Platform Height 6m Mobile Scissor Lift with Outriggers
MK600 Mini Scissor Lift is an aerial machine with good Lifting stability and widely used. Our factory develop and design it basing on absorbing domestic and abroad product advantages.
They are mainly applicable to office operations. Due to the whole machine has a small volume,it has better flexibility and maneuverability.Meanwhile,the machine has a wide use range and high mobility.


Main Technical Parameters

Model MK600
Max Platform Height mm 6000
Work Platform Size mm 1850*880
Platform Loading Capacity kg 500
Lifting Time s 54
Lowering Time s 40
Lifting Power V/kw 24/2.2
Machine Length mm 1900
Machine Width mm 1120
Machine Height(Guardrail Folded) mm 750
Machine Weight kg 650



Work Principle


The hydraulic pump is driven by the motor, the high pressure oil goes into P cavity and put out to A cavity through check valve 1 and finally goes into hydraulic lifting cylinder,which gets the working platform rising up slowly.


For different loading, the relief valve2 can adjust the working pressure accordingly, which will avoid over loading or out of pressure.


When the working platform is descending, the solenoid valve 4 will be open with electricity, the hydraulic oil inside the cylinder will flow to A cavity and goes into the valve due to the gravity of the loading, and since the check valve 1 is reverse closed, the hydraulic oil can only pass to the open solenoid valve 4 and transit through the adjustable throttle valve to the oil tank by O cavity.


On basic above, the working platform will getting descending slowly and since the inside structure of the vale is pressure balance, the stability will not be effected by the loading fluctuation due to the the action of opening and closing is controlled by the electromagnet.


Safety Precautions​


1.The operation voltage on the platform is 24V
2.Emergency stop button on the paltform and ground
3.Auxiliary platform lowering
4.Hose burst valve safety
5.Rain-proof design electirc cabinet
6.Fodable fence on the platform
7. Outrigger on the chassis for more stability
