Bestmax Heavy Industry Company Limited
(Xunte Hydraulic Lifting Machinery Co., Ltd)
Professional from Concentration
|Place of Origin:||Original of China|
|Certification:||CE / IOS9001:2008 / IPAF member|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wrapped in pallets/ wooden case|
|Delivery Time:||30 day after receipt of deposit|
|Payment Terms:||T/T, L/C|
|Supply Ability:||100 sets/ month|
|Material:||Q345 Steel||Platform Size:||2.27*1.12m|
|Total Weight:||2468kg||Platform Height:||10m|
|Lift Capacity:||320kg||Extension Loading:||113kg|

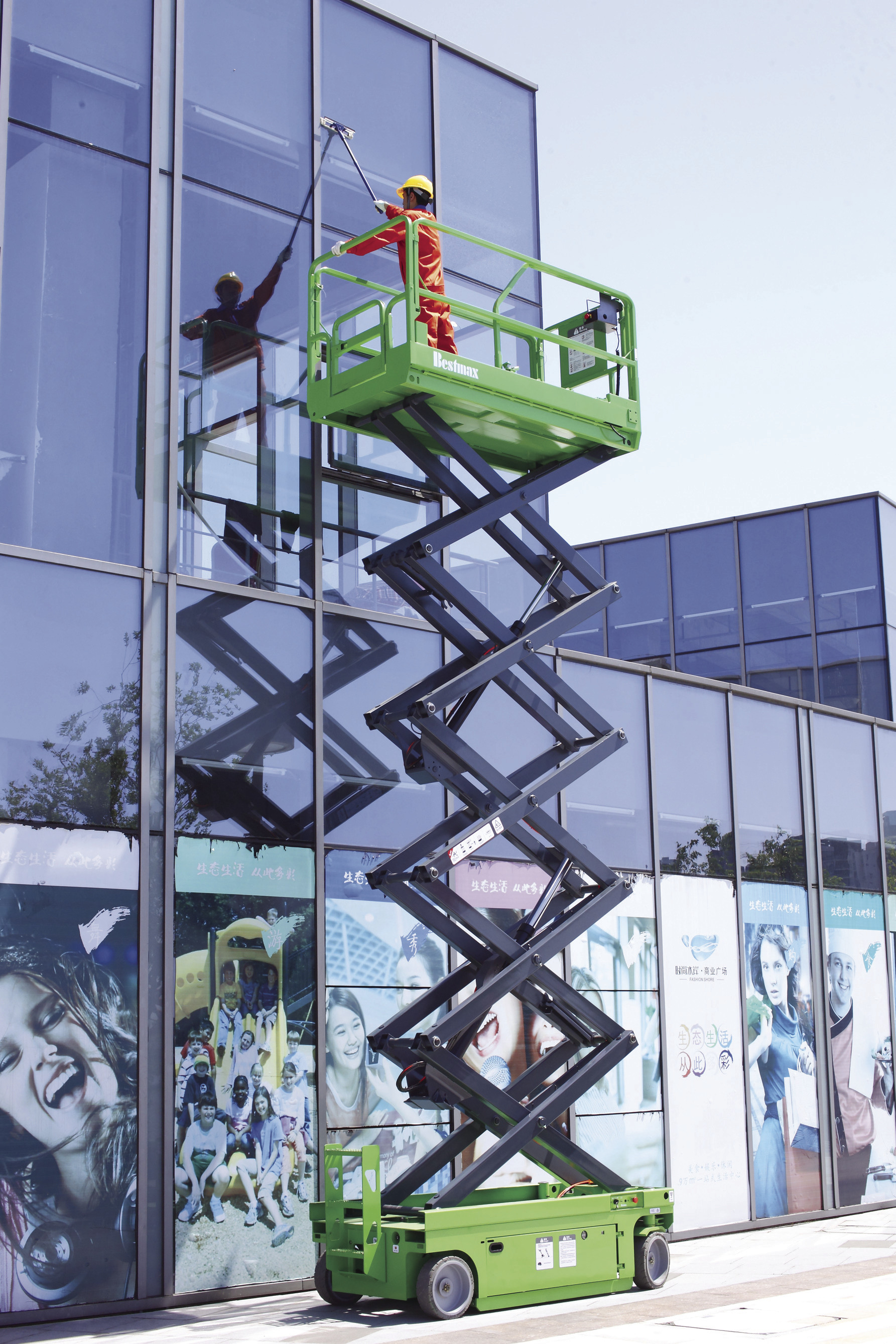

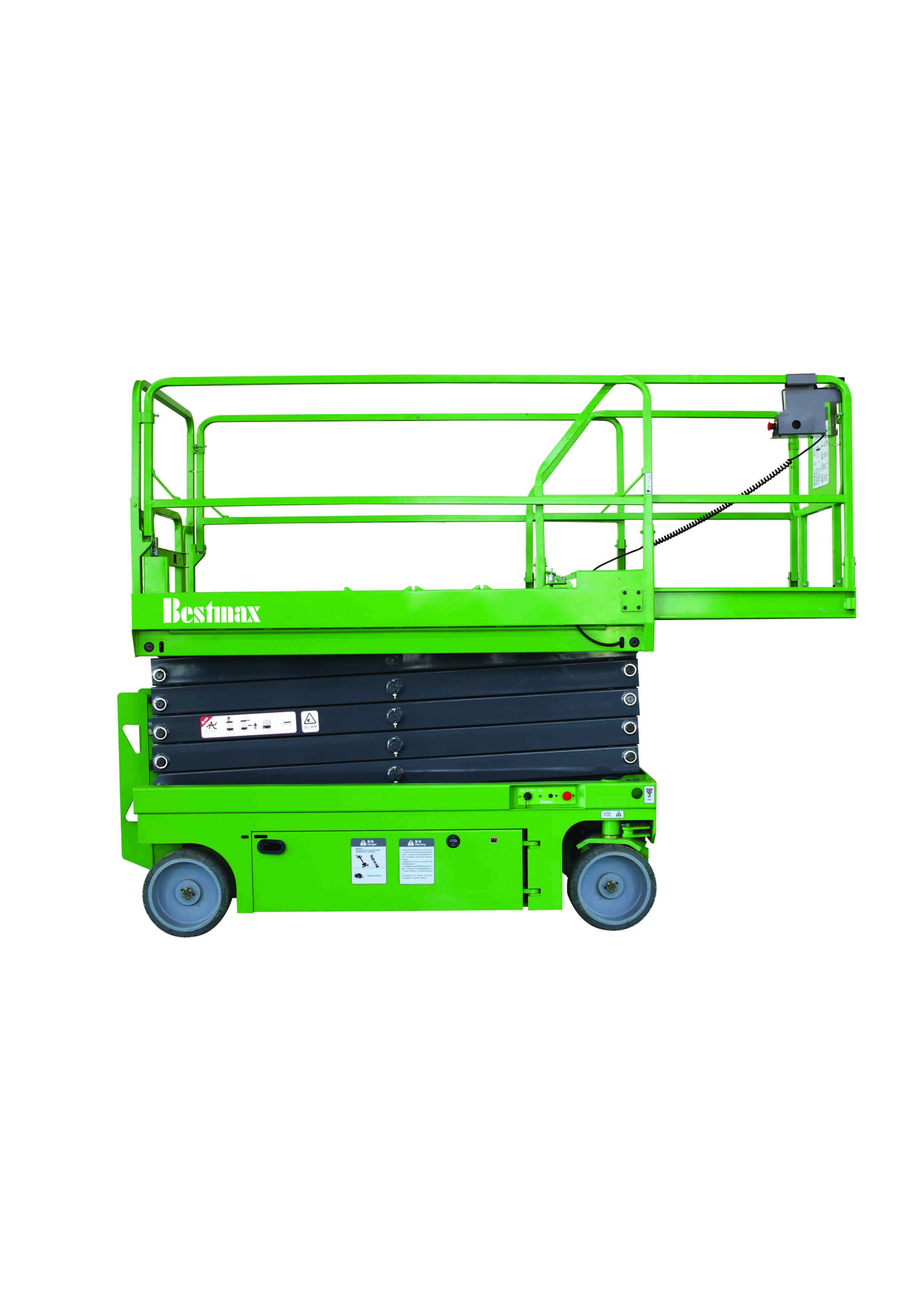

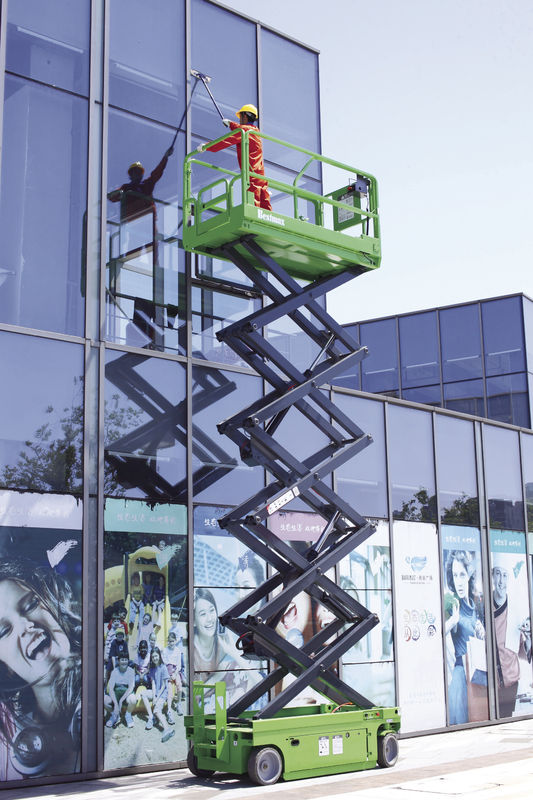

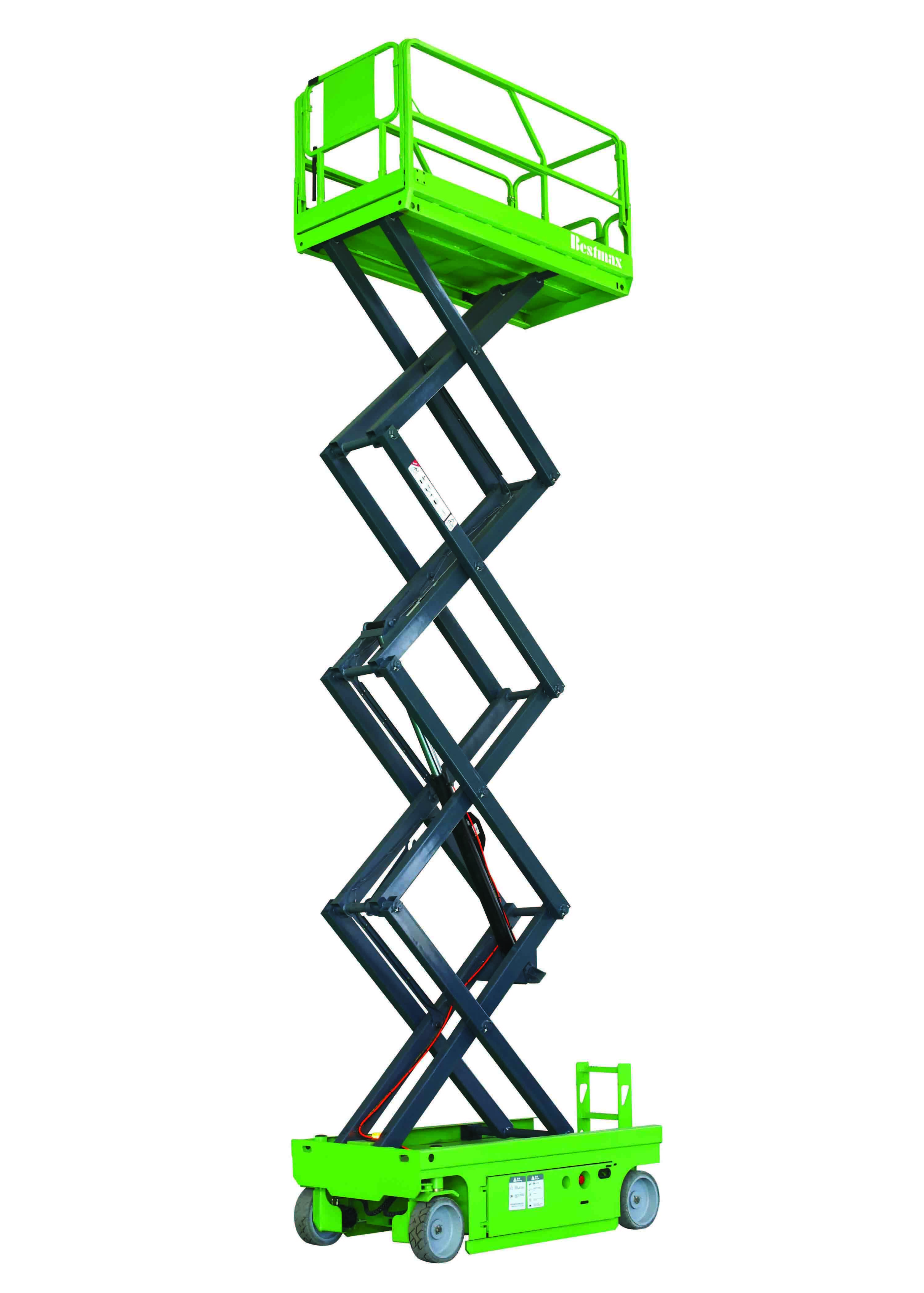

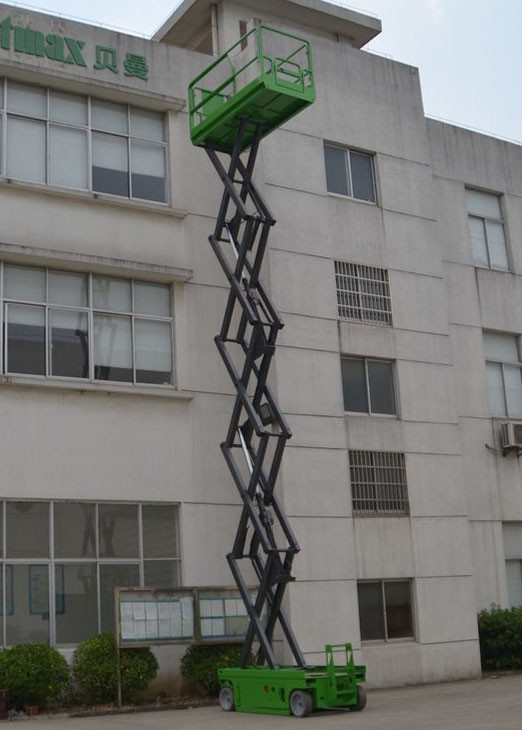

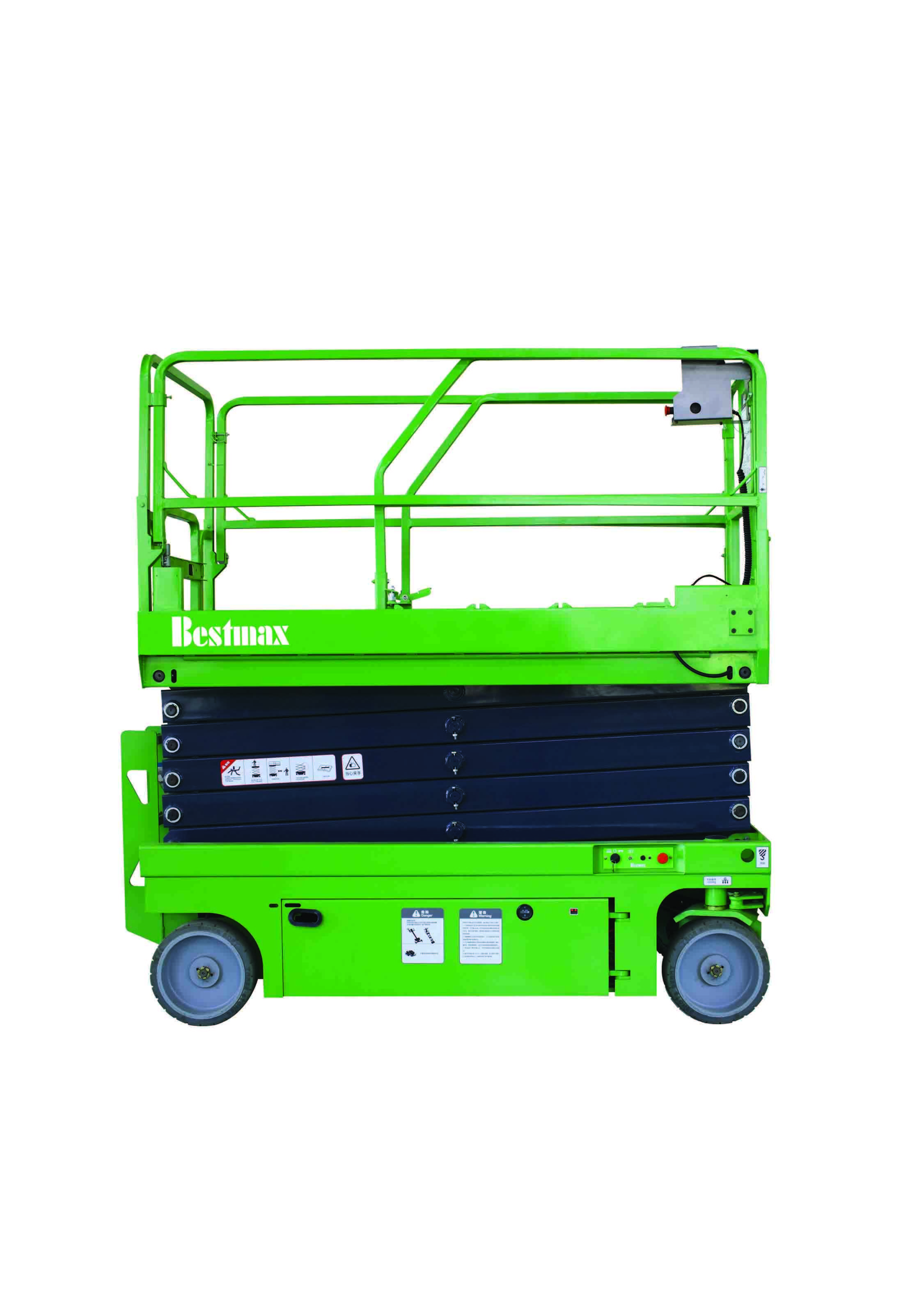

Self Propelled Scissor lift platform for tough terrain max 12m working height
Bestmax Self-propelled Electric Scissor Lift (DC motor driving) has excellent structure, smooth driving, fater speed, lower noise, friendly to environment, deeply loved by users who always work outdoor to provide you with a flexible mobility, operability. It is with tough and rigid wheels to travel through uneven and rough surface. Whether indoors and outdoors it can be used with traceless tire. It is unique in carrying capacity and wide platform that can bring more workers and tool set. It can greatly improve the working efficiency to assist finish various aerial work tasks in different situations as it can travel in any status whether lifted or stowed. With no human power needed to move it, it can be operated by one single to control on the platform, smart, flexible, quick.
|Working height max (m)||12|
|Platform height max (m)||10|
|Lift capacity (kg)||320|
|Lift capacity (kg) (Platform extended)||113|
|Weight (kg) CE / AUS Standard||2468|
|Platform size (L×W) (m)||2.27*1.12|
|Slide-out platform extention deck (m)||0.9|
|Platform length extended (m)||3.17|
|Stowed size (L×W) (m)||2.43*1.15|
|Stowed height (m)||2.42|
|Hydraulic system capacity (L)||20|
|Ground clearance (m) (Stowed)||0.1|
|Ground clearance (m) (Raised)||0.019|
|Platform occupancy max||2|
|Raise / Lower time (s)||60/40|
|Maximum Working Slope||2°/3°|
|Lifting Motor Power||3.3Kw|
|Tire size (mm)||380*129|
Fully proportional control, either lifting or moving, all can easily operating in the joystick. Zero inside turning radius, allowing users to use in a narrow space, and also facilitate changing positions. It has two kinds of moving speed to secure move quickly and lift safe.
It give full consideration to the convenience of the user in their daily work. It has fault diagnosis system help the user can find the failure point one time. And also reduce the losses caused by forgotten maintenance.
Configured with traceless tire to protect the ground surface and suitable for indoor application. The wheels and tires are very very tough and rigid able to travel through uneven terrain and rough surface
Platform Swing Gate
Platform Swing Gate make enter and out space more large, no restrictions to the guardrails.
Fold-able guardrail make the machine can be easily through standard doors when move during working area.
Airway tube to platform
User can be optional airway tube to platform to make sure pneumatic tools and equipment can be used in the platform.
AC wiring to platform
AC wiring and socket to platform to meet the customers demand to make sure the electic tools can be used in the platform.
Key-type lock sliding
Key-type lock sliding door to protect misuse by not equipment keeper, particularly suitable for protect the electrical components when the rent out
Platform work light (optional)
The professional platform work lights allows construction of the user easier lighting and operating
Motion alarm and Horn
The machine is equipped with motion alarm and horn when moving to remind around person to take necessary procaution. Action buzzer
Why choose Xunte Self Propelled Scissor Lift?
· High Quality product
· Reasonable Price
· Easy payment mode
· Timely delivery
· Good after Service
· Client-centric approach
· one year warranty
Thank you for your reading and welcome your inquiry. We will respond you as soon as possible.
