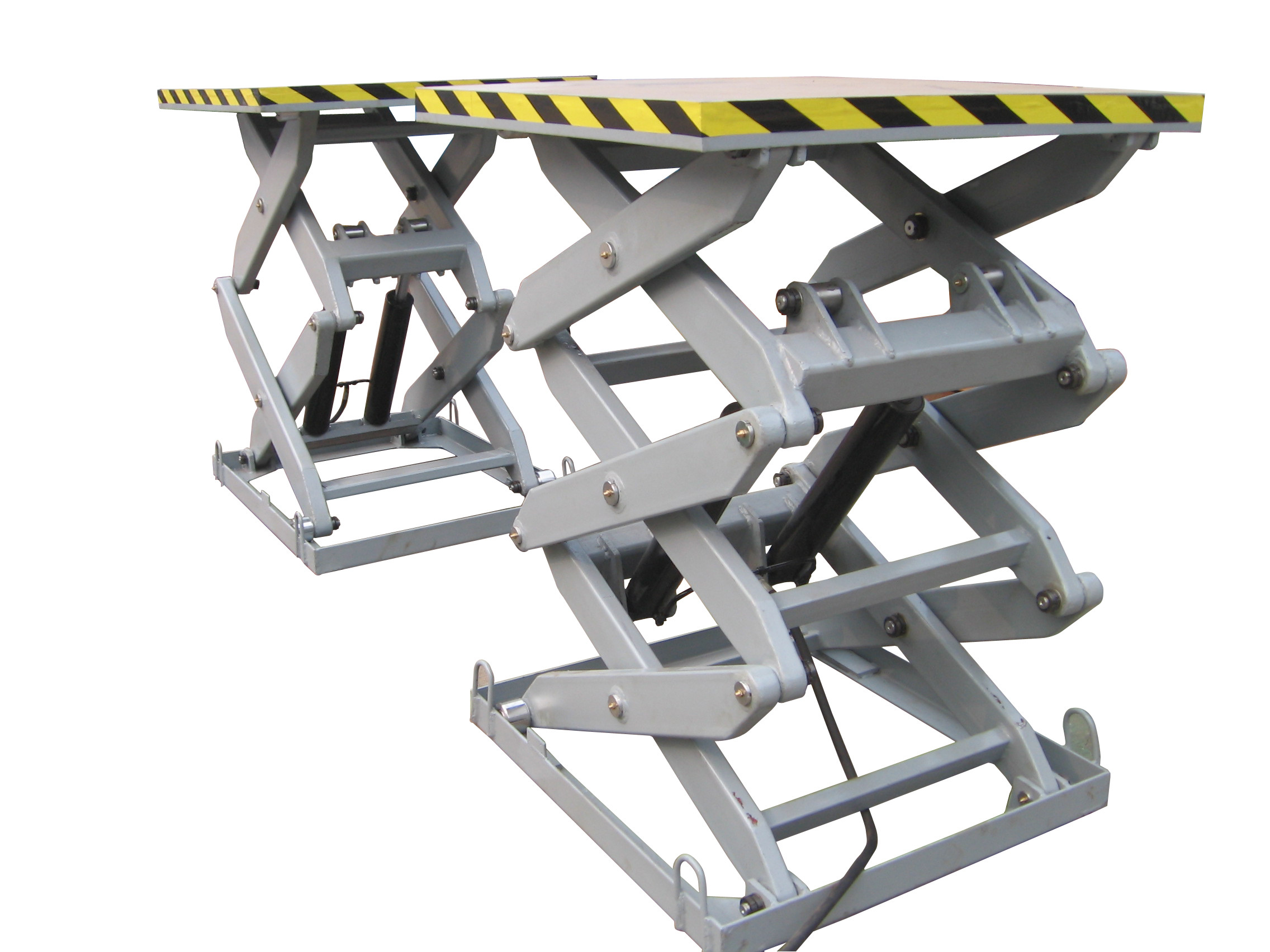

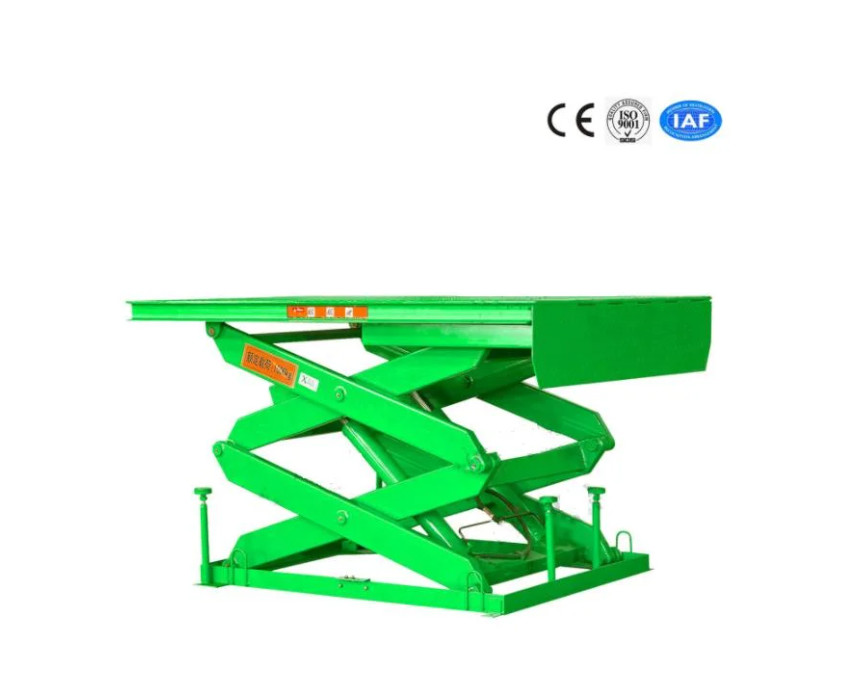

5M Lifting Height Stationary Hydraulic Scissor Lift 5000Kg Loading Capacity for Work Shop / Theatre

5M Lifting Height Stationary Hydraulic Scissor Lift 5000Kg Loading Capacity for Work Shop / Theatre

  • 5M Lifting Height Stationary Hydraulic Scissor Lift 5000Kg Loading Capacity for Work Shop / Theatre
  • 5M Lifting Height Stationary Hydraulic Scissor Lift 5000Kg Loading Capacity for Work Shop / Theatre
  • 5M Lifting Height Stationary Hydraulic Scissor Lift 5000Kg Loading Capacity for Work Shop / Theatre
5M Lifting Height Stationary Hydraulic Scissor Lift 5000Kg Loading Capacity for Work Shop / Theatre
Product Details:
Place of Origin: China
Brand Name: Xunte
Certification: CE
Model Number: SJG 5-5
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wrapped in pallet
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Loading Capacity: 5000kg Platform Height: 5m
Platform Size: 2.8x2.5m
High Light:

scissor lift table

,

hydraulic scissor lift


5M Lifting Height Stationary Hydraulic Scissor Lift 5000Kg Loading Capacity for Work Shop / Theatre​


Quick Detail:


NameHydraulic Lift PlatformBrand NameXunte
Loading Capacity5000KgLifting Height5m
Platform Size2800*2500mmColorOptional
Lifting Power5.5 KwPower Supply

AC



Description:

Stationary Scissor Lifts can not be moved, it only can lift the goods in the fixed locations, the platform size, loading capacity and the lifting height can be customized based on different customers’ requirements. It is widely used in the workshop, 4S Shop to load and unload good with heavy duty.


Main Features:

1. Easily installation and maintenance
2. Excellent mechanical structure, which works in lower initial lifting height with maximum lifting stroke.
3. The antiskid design endows the platforms with excellent antiskid property
4. Fine grinding cylinder in good sealing performance
5. Gas Shield Welding (in stronger hardness and everlasting)
6. Built-in pressure release valve
7. Auxiliary platform lowering when electricity off
8. Oil less bearing mounted in the joint parts, pin roll with grease fitting.
9. Overall hook by CNC torch flame cut


Major Parameters:


ModelSJG5-5
Lifting Height5m
Loading Capacity5000KG
Platform Size2800*2500mm
Minimum Height1100mm
Motor Power5.5Kw
Voltage380V/50Hz



Configurations:

  • Electric system:Schneider contactor, SANLICO button, CHNT electrical

  • Hydraulic System:Hycman brand power pack ,NOK sealing

  • Scissor Arm Support:Hi-strength Manganese steel rectangle tube Q345 B

  • Platform Surface:Antiskid checkered plate

  • High-pressure Oil Pip:Double wire hydraulic intensifier rubber hose


Optional Configuration:

  • Power Supply: 3phases/380V/50HZ; DC 24V; manual pump

  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher

  • Extension Platform

  • Flame Proof Control Cabinet


Applications:

  1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

  2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.


Why to choose Xunte Hydraulic Lift Platform?

  • High Quality

  • Reasonable Price

  • Good after Service

  • 1 Year Warranty

  • More Than 10 Years Experience
