CE Certified 4kw Motor Power 3000kg Load Capacity 6m Lift Height Hydraulic Cargo Guide Rail Lifting Platform

CE Certified 4kw Motor Power 3000kg Load Capacity 6m Lift Height Hydraulic Cargo Guide Rail Lifting Platform

  • CE Certified 4kw Motor Power 3000kg Load Capacity 6m Lift Height Hydraulic Cargo Guide Rail Lifting Platform
CE Certified 4kw Motor Power 3000kg Load Capacity 6m Lift Height Hydraulic Cargo Guide Rail Lifting Platform
Product Details:
Place of Origin: China
Brand Name: CHENLIFT
Certification: CE ISO9001:2008 IPAF member
Model Number: SZDG3-6
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wrapped in pallets
Delivery Time: 30 days
Payment Terms: T/T L/C
Supply Ability: 200 sets/month
Contact Now
Detailed Product Description
Load Capacity: 3000 Kg Vertical Travel: 6000 Mm
Cloased Height: 105 Mm Platform Size: 2.5* 2m
Motor Power: 4 Kw Power Voltage: AC380V
Weight: 2000 Kg
High Light:

hydraulic drum lift

,

electric pallet stacker

CE Certified 4kw Motor Power 3000kg Load Capacity 6m Lift Height Hydraulic Cargo Guide Rail Lifting Platform



Introduction:

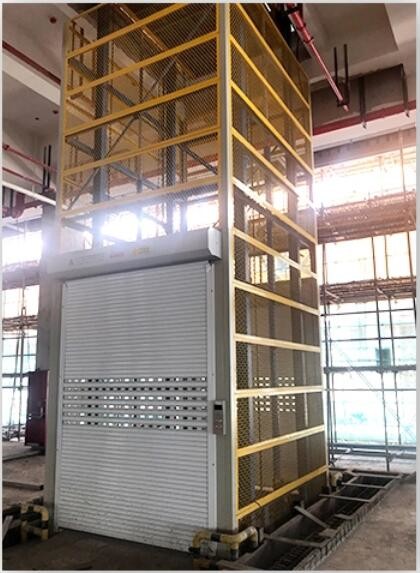

Stationary lead rail lift provides fast, efficient, convenient and safe access to mezzanines ,balconies, basements and any levels in multistoried building. It can be installed indoor or outdoor. It is suitable for where can not be dig the pit.

CE Certified 4kw Motor Power 3000kg Load Capacity 6m Lift Height Hydraulic Cargo Guide Rail Lifting Platform 0



Safety control:

1. Hydraulic cargo lift not only has all safe device of the traditional elevator, but also has special safe system hereinafter.

2. Spillover valve, it can prevent high pressure when the machine moves up.

3. Manual emergency valve, it can go down to the nearest floor and open the door when you meet an emergency.

4. Manual pump: it can move up the nearest floor and open the door when you meet an emergency.

5. Pipe fracture valve, when the hydraulic system pipe fracture, it can cut down the channel of the oil to stop the falling.

6. Temperature protection, when the temperature of the hydraulic oil is substandard, the machine will stop working until the temperature reverts to the safe standard.

CE Certified 4kw Motor Power 3000kg Load Capacity 6m Lift Height Hydraulic Cargo Guide Rail Lifting Platform 1

CE Certified 4kw Motor Power 3000kg Load Capacity 6m Lift Height Hydraulic Cargo Guide Rail Lifting Platform 2



Our Services

1. Once provide us the requirement, the details technical data and CAD drawing will provide you at the first time.

2. Strict quality control system, supervision the work to ensure the best crane for you.

3. Strict production line, make sure manufacture the goods on time.

4. Best cooperation forwarder provide the soonest and reliable service for our goods.

5. If needed, senior engineers can be your side do the installation guide and training.
