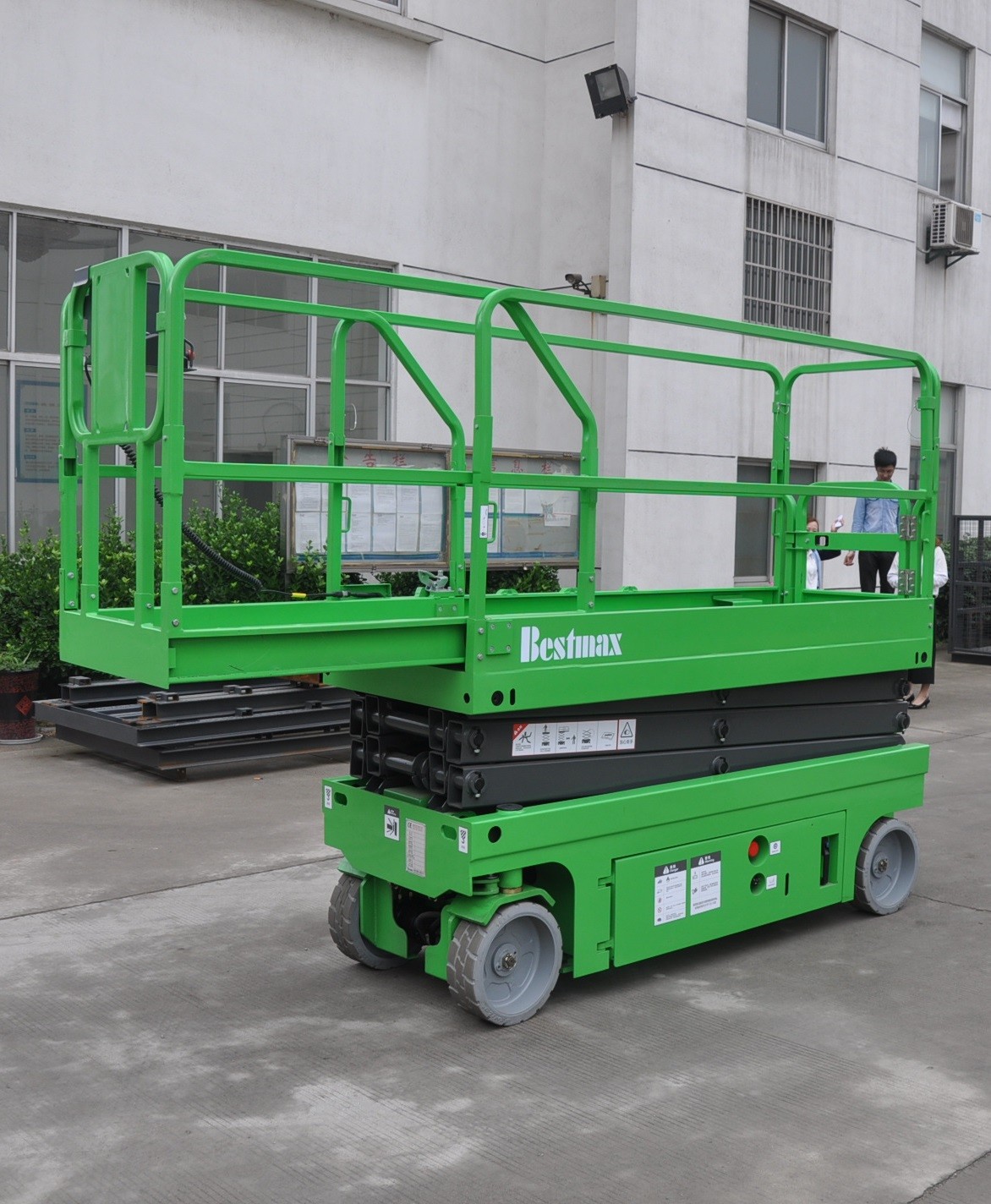

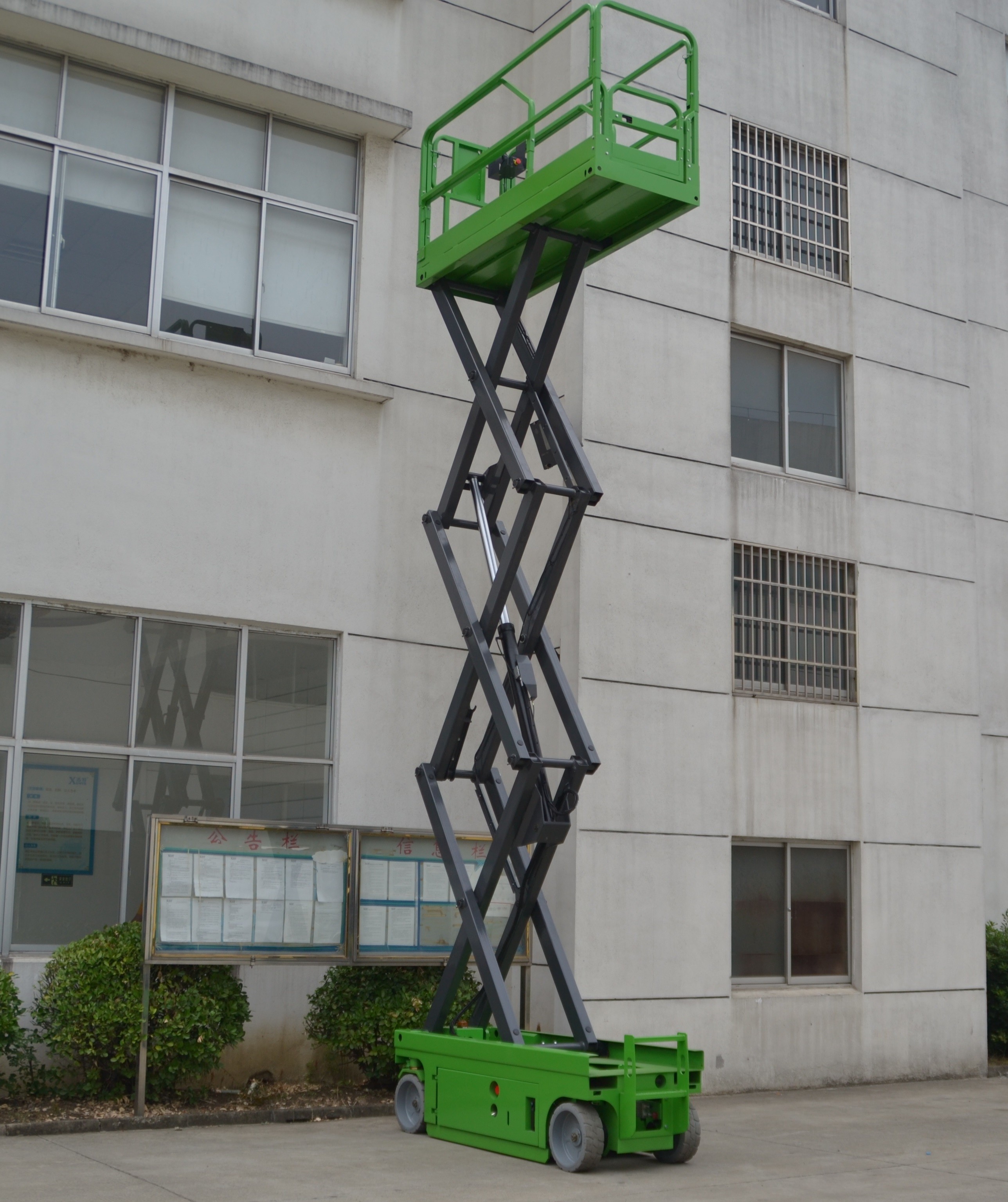

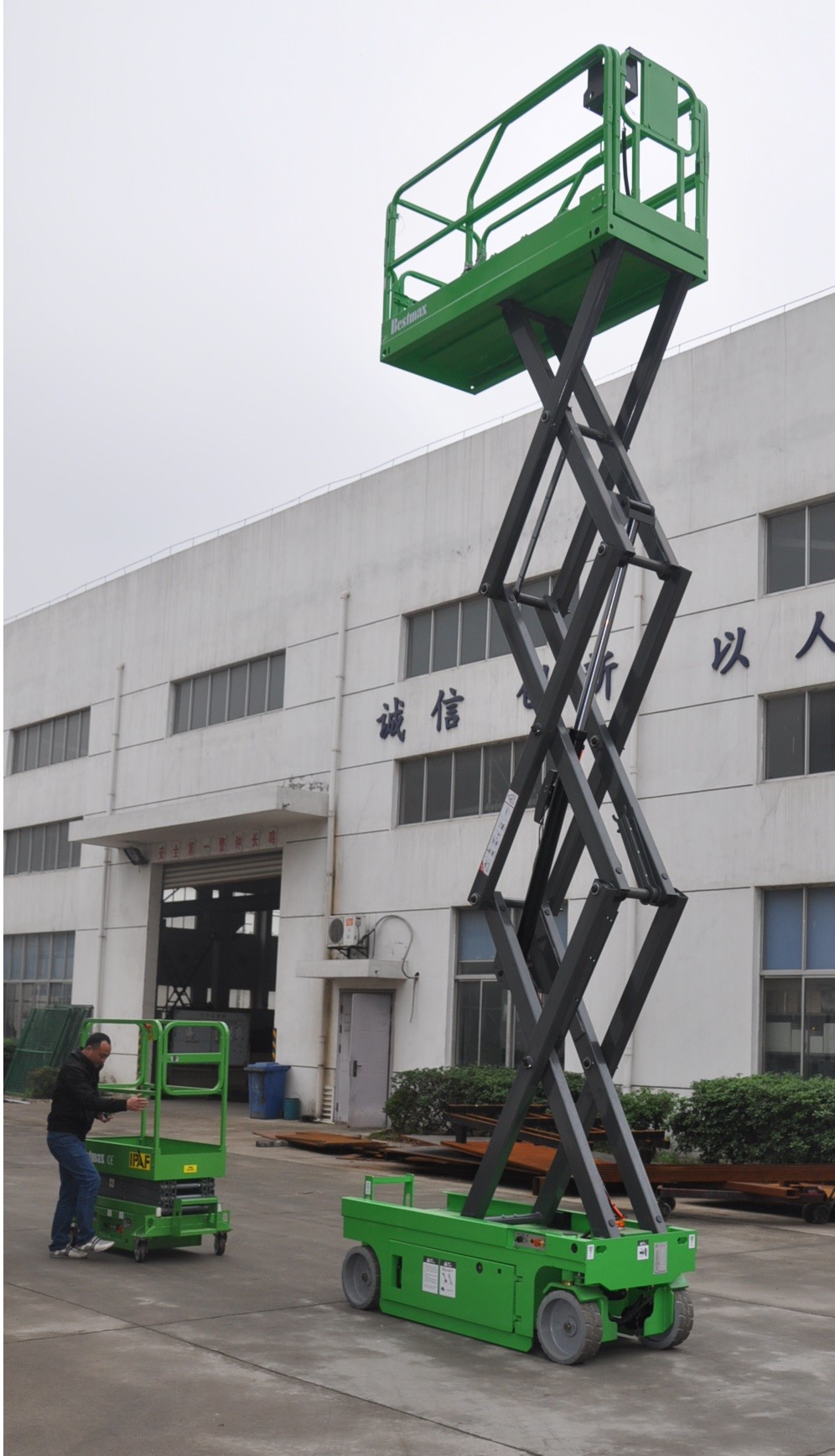

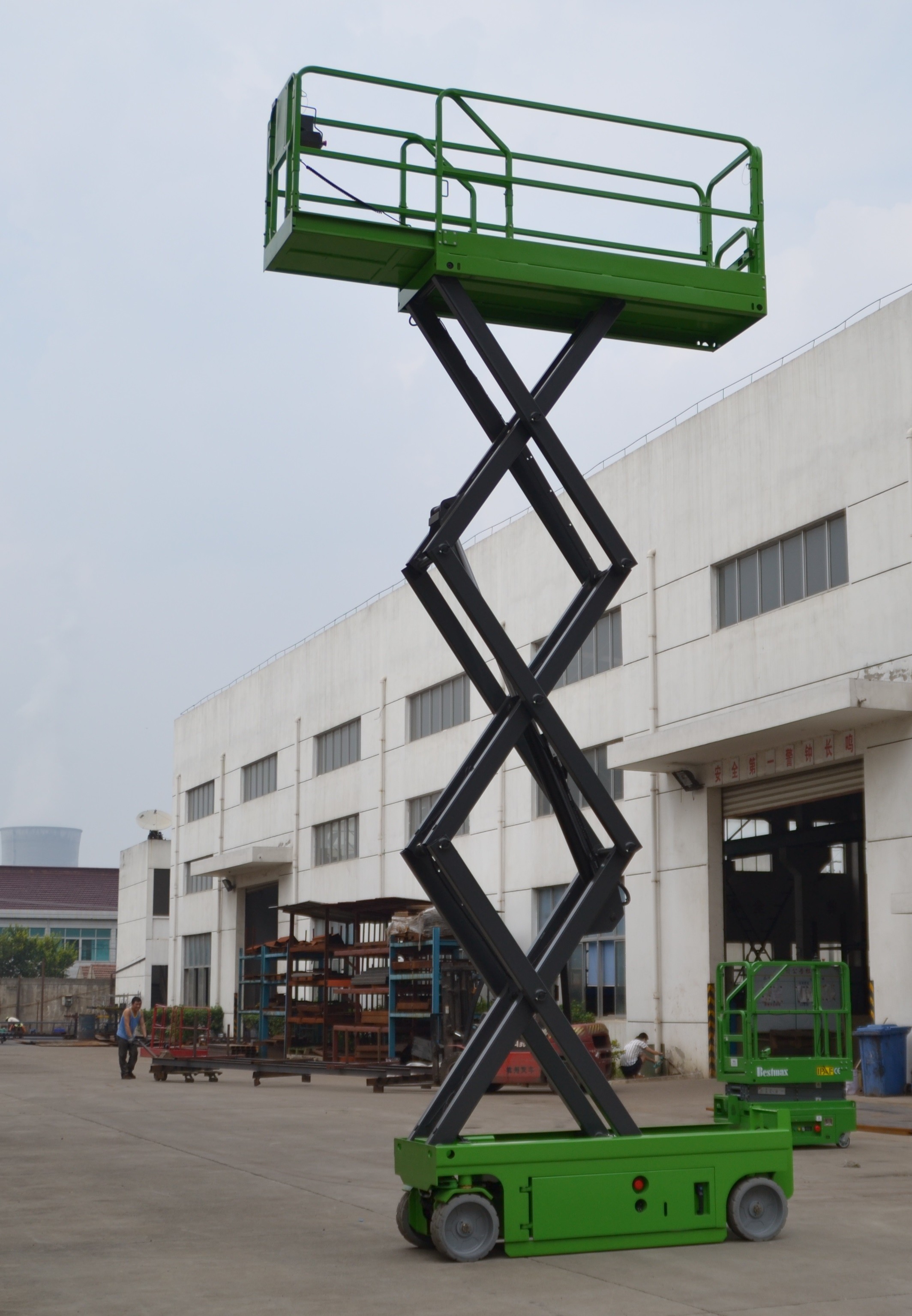

Electric Self Propelled Scissor Lift Table Aerial Working Platform 230kg Loading Capacity

Electric Self Propelled Scissor Lift Table Aerial Working Platform 230kg Loading Capacity

    • Electric Self Propelled Scissor Lift Table Aerial Working Platform 230kg Loading Capacity
    • Electric Self Propelled Scissor Lift Table Aerial Working Platform 230kg Loading Capacity
    • Electric Self Propelled Scissor Lift Table Aerial Working Platform 230kg Loading Capacity
    • Electric Self Propelled Scissor Lift Table Aerial Working Platform 230kg Loading Capacity
  • Electric Self Propelled Scissor Lift Table Aerial Working Platform 230kg Loading Capacity

    Product Details:

    Place of Origin: China
    Brand Name: Bextmax
    Certification: CE
    Model Number: MX600SN

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Price: Negotiable
    Packaging Details: Wrapped in pallets/ wooden case
    Delivery Time: 30 days after receipt of deposit
    Payment Terms: T/T L/C
    Supply Ability: 100 sets/month
    Contact Now
    Detailed Product Description
    Model: MX600SN Lift Capacity: 230kg
    Platform Size: 2.27*0.81m Working Height: 8m
    Weight: 1945kg Platform Height: 6m
    Overall Size: 2.43*0.81*2.18m Extension Loading: 113kg
    Lift/Drive Motor: 24V/3.3kw Power Source: 4*6V/225Ah



    Electric Self Propelled Scissor Lift Table Aerial Working Platform 300kg Loading Capacity


    Description:

    Self-propelled scissor lifts are also called as Electric Scissor lifts or electric elevated work platform; they are used to provide temporary access for contractors to high, inaccessible areas on a variety of job sites such as maintenance and construction work. They are designed to lift limited weights and capable of being fully operated by a single person. It is unique in carrying capacity and a wide platform that can bring more workers and tool set, whether indoors or outdoors.


    Main Features:



    1. Roll-out extension platform provide more workspace.

    2. Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas.

    3. Different models are available with the maximum working height at 6m to 16m.

    4. Zero-turn radius and compact design provide access in and around confined work areas.

    5. 25% grade ability when driving on slopes.

    6. On-board diagnostic help operators troubleshoot on the fly and make adjustments in the field to maximize uptime

    7. Single extension platform provide more workspace.

    8. Manganese steel lifting arm in high strength with rectangle shape

    9. The anti-skid design endows the platforms with excellent anti-skid property

    10. The control panels are available on the platforms and ground.

    11. Fine grinding cylinder in good sealing performance

    12. Equipped with safeguard valve to avoid hydraulic pipe rupture

    13. Swing-out tray for easy maintenance access


    Specification:


    Models MX600SN
    Working height max(m) 8
    Platform height max(m) 6
    Outreach(m) 0.9
    Lifting capacity(kg) 230
    Lifting capacity(kg) (Extended platform) 113
    Weight(kg) CE/AUS Standard 1945
    Platform size(L×W)m 2.27*0.81
    The length of platform extended(m) 0.9
    Skirting board height(m) 0.15
    Stowed size(L×W)m 2.43*0.81
    Stowed height(m) 2.18
    Height of the machine with platform folded(m) 1.85
    Wheelbase(m) 1.87
    Length of the machine with platform extended(m) 3.17
    Hydraulic tank capacity(L) 15
    Gradeability 0.25
    Ground clearance(m) 0.1
    Pothole protection board ground clearance(m)(down) 0.019
    Inside rotation radius(m) 0
    Outside turning radius(m) 2.1
    Load number max 2
    Raised time/Lowering time(s) 35/25
    Traction speed(km/h) 3
    Safe speed(km/h) 1
    Vertical tilt° 3
    Lateral tilt° 2
    Power source 4*6V/225Ah
    Tire size 380*129


    Configurations:

    • Standard detachable platform
    • Extended platform
    • Proportional controls for lift and drive functions
    • Automatic 25Amp battery charger provides strong power for vehicle
    • Safe distance protection when the platform lowering down
    • Manual emergency platform lowing valve. When there is no power the machine can lower down safely.
    • Emergency stops are at both platform and ground control boxes.
    • Drive speed interlock limits speed while elevated
    • Multiple disc brakes provide smooth deceleration
    • When there is no power manual brake release function can move the machine under the circumstance when there is no other forklift, lifting equipment and so on.
    • Pothole guards protect the machine from tilting down when the machine moving on the raised position
    • Non-marking tires make sure there is no damage and no marks on the ground
    • AC wiring to platform
    • Tilt level sensor with audible alarm
    • Beeper horn
    • Hour meter
    • Safety brackets
    • Battery charge indicator
    • Forklift sockets
    • Diagnosis system
    • Fault code display

    Optional Configuration:

    • Fold-able guardrail
    • Motion alarm
    • Platform swing gate
    • Air line to platform
    • Dual flashing beacon
    • Maintenance-free battery
    • Horn
    • Platform work lights
    • Key-type lock sliding door
    • Anti-collision system
    • Head protection stop system

    Electric Self Propelled Scissor Lift Table Aerial Working Platform 230kg Loading Capacity





    Applications:

    1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.
    2, Aerial Working Purpose: machine maintenance, painting, cleaning etc
    Why to choose Bestmax Self-propelled Scissor Lift?

    • More quieter

    All Bestmax MX-series adopt high-performance battery power, pollution-free and no emissions, low noise electric pump, can also be used even in the area of high environmental requirements, such as office buildings, hotel, hospital, school and so on.


    • Flexible Operation

    Fully proportional joystick control, either lifting or moving, all can easily operate in the joystick.
    Zero inside turning radius allowing users to use in a narrow space, and also facilitate changing positions. MX-series has two kinds of moving speed to secure move quickly and lift safely. All the MX-series scissor lifts have extended platforms which makes the operator get close to the work points much easier and breakthrough the space obstacles.


    • Easy maintenance

    Bestmax MX-series give full consideration to the convenience of the users in their daily work maintenance. All the Bestmax Electric Self-propelled Scissor Lifts have fault diagnosis system, this makes the user can find the point of failure in one time. Door-open control box and battery box allow maintenance person to find the maintenance point quickly and easily. Also it is easier to change the spare parts. The scissor booms repair bracket, so that the user dose not need the help of lifting equipment, boom system can be easily overhaul.
