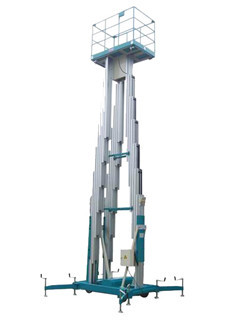

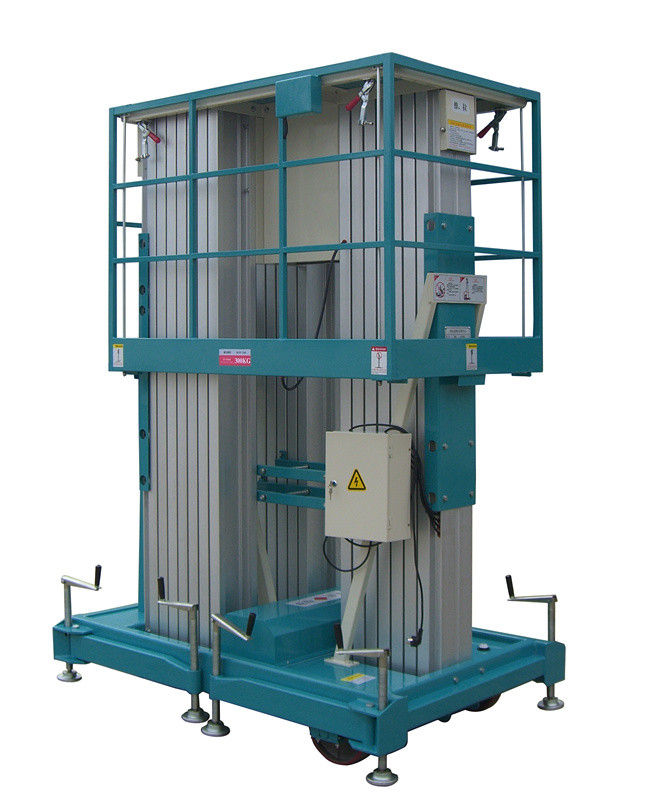

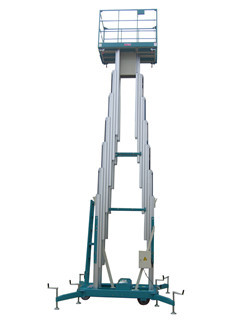

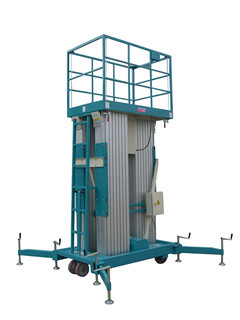

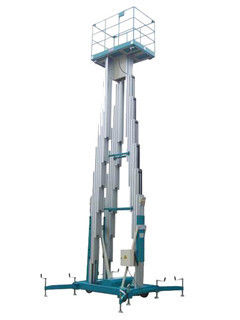

Explosion Proof 300Kg Loading Capacity Hydraulic Lift Aerial Work Platform 10m height Triple Mast

Explosion Proof 300Kg Loading Capacity Hydraulic Lift Aerial Work Platform 10m height Triple Mast

  • Explosion Proof 300Kg Loading Capacity Hydraulic Lift Aerial Work Platform 10m height Triple Mast
  • Explosion Proof 300Kg Loading Capacity Hydraulic Lift Aerial Work Platform 10m height Triple Mast
  • Explosion Proof 300Kg Loading Capacity Hydraulic Lift Aerial Work Platform 10m height Triple Mast
  • Explosion Proof 300Kg Loading Capacity Hydraulic Lift Aerial Work Platform 10m height Triple Mast
  • Explosion Proof 300Kg Loading Capacity Hydraulic Lift Aerial Work Platform 10m height Triple Mast
Explosion Proof 300Kg Loading Capacity Hydraulic Lift Aerial Work Platform 10m height Triple Mast
Product Details:
Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE
Model Number: GTWY10-300 (ME1000-3)
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Wrapped in pallet or in wooden case
Delivery Time: 30 days after down payment
Payment Terms: T/T, L/C
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Loading Capacity: 300kg Platform Height: 10m
Working Height: 12m Platform Size: 1.43*0.88m
Overall Size: 1.82*1.10*2.05m Outrigger Footprint: 2.40*2.30m
Weight: 1000kg Lifting Power: 2.2kw
High Light:

mobile aerial work platform

,

aerial work platform



Explosion Proof 300Kg Loading Capacity Hydraulic Lift Platform 10m Height Triple Mast



Quick Detail:



Name Mobile Aerial Work Platform Brand Name CHEN LIFT
Loading Capacity 300Kg Platform Height 10m
Platform Size 1.43*0.88m Color Blue or Optional
Motor Power 2.20Kw Power Supply AC/DC



Descriptions



Explosion Proof Aerial Work Platform has three parts made into explosion proof type: electric box, socket and plug. And all the aluminum aerial work platform can be made into this explosion proof type.



Applications:



It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds. The lifting height ranges from 10m to 12m and lifting capacity varies from 200kg to 300kg.The power sources could be 220V, 380V or chargeable battery.



Main Features:



1. Most rigid aluminum alloy profile

2. Auxiliary platform lowering

3. Multi-guide pulley on mast

4. Durable base system

5. Chassis with level gauge

6. DC working power on the platform

7. Easily rolls through a narrow space

8. Emergency stop button

9. Over load protection

10 .Built-in pressure release valve

11. Dual activated up/down switch

12. Locking Key Switch

13. Optional extended platform

14. Entry ladder



Specifications:



MODEL GTWY10-300 (ME1000-3)
PRODUCTIVITY US Metric
Lift capacity 661lbs 300kg
Working height 39ft   472.44in 12m
Platform floor height 32ft   393.70in 10m
Platform length 4ft     56.30in 1.43m
Platform width 2ft     34.65in 0.88m
Ground Clearance 5.91in 0.15m
Lifting Power 2.2kw
Lifting Speed 0.09-0.1m/s
Motorized Power 0.75Kw
Descending Speed 0.08m/s
Anti Wind Capacity Max. force 5
Overall length 5ft   71.65in 1.82m
Overall width 3ft   43.31in 1.10m
Overall height 6ft   80.71in 2.05m
Outrigger footprint:
A Length 7ft   91.73in 2.33m
B Width 7ft   87.80in 2.23m
C Corner access 3.94in 0.10m
D Wall access front 10.24in 0.26m
E Wall access side 2ft   24.41in 0.62m
Weight 2205lbs 1000kg

Explosion Proof 300Kg Loading Capacity Hydraulic Lift Aerial Work Platform 10m height Triple Mast 0



Optional Configuration:

  • Power Supply: 3phases/380V/50HZ; DC 24V
  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
  • Extension Platform
  • Flame proof electric cabinet



Competitive Advantage:



· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience





Explosion Proof 300Kg Loading Capacity Hydraulic Lift Aerial Work Platform 10m height Triple Mast 1





Communication with Customers



A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

B: The main difference is from the structure and the material

The scissor lift is in scissor structure with steel material

The aerial work platform is in mast structure with aluminum material



A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

  1. Strict quality control system on the whole process of production
  2. Imported key arts to ensure the high quality of our products
  3. Advanced equipment and tools for examination and quality control
  4. 100% strict examining products before shipment
  5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



A: What is the delivery time for your goods?

B: it is 30days after order confirmation



A: What spare parts that you can offer?

B: Find the list below which we are offering with the machine when shipment for free:



Item Model Quantity
O-shape rubber ring 40×3.1 4
O-shape rubber ring 11×1.9 2
O-shape rubber ring 40×30×6 1
Spanner   1
screwdriver 4# 1



A: How long is your quality guarantee period?

B: We have one year warranty.
