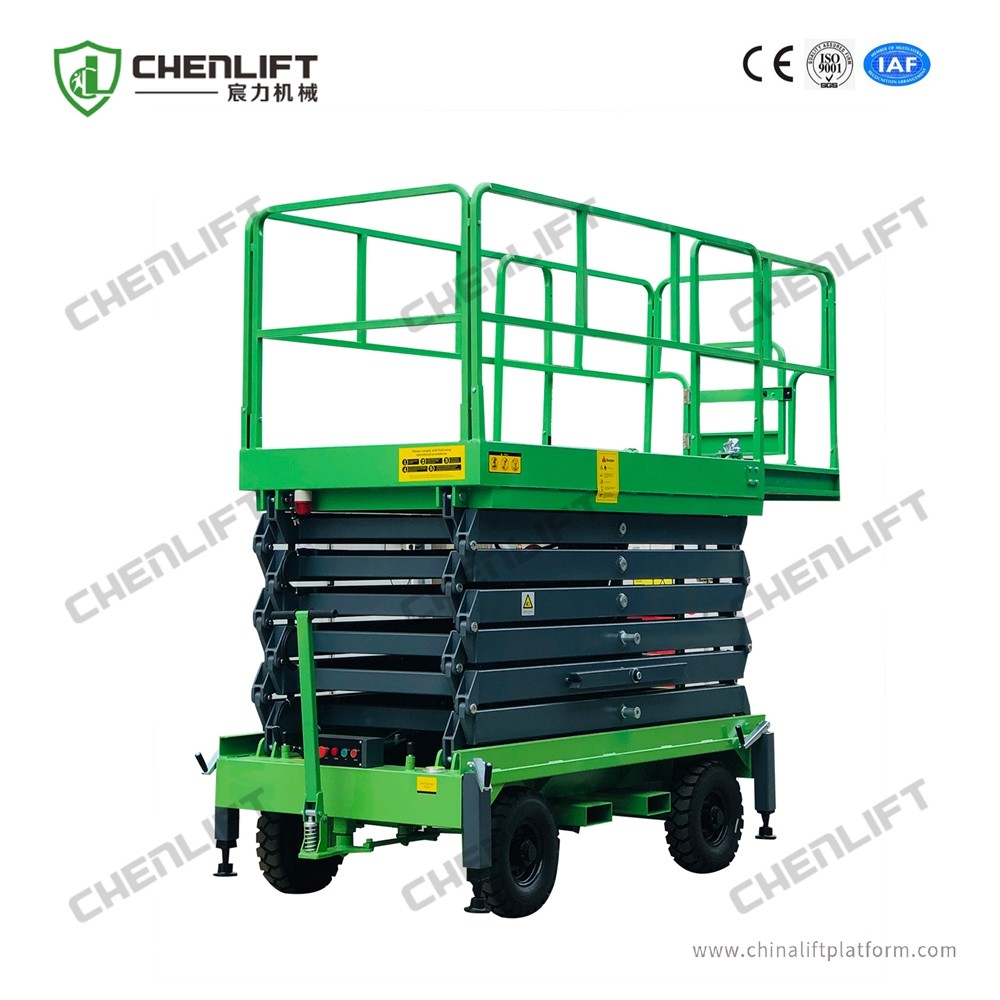

500Kg 8 Meters Hydraulic Lift with Extension Platform for Work Shop

500Kg 8 Meters Hydraulic Lift with Extension Platform for Work Shop

  • 500Kg 8 Meters Hydraulic Lift with Extension Platform for Work Shop
500Kg 8 Meters Hydraulic Lift with Extension Platform for Work Shop
Product Details:
Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE ISO9001:2008 IPAF member
Model Number: SJY0.5-8 with Extension
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PVC Film Wrapped in Pallets or in wooden Case
Delivery Time: 30 days after order confirmed
Payment Terms: T/T or L/C
Supply Ability: 100 sets/month
Contact Now
Detailed Product Description
Loading Capacity: 500Kg Platform Height: 8000mm
Extension Platform Length: 1000mm Extension Loading Capacity On Extension Platform: 100Kg
Working Height: 10000mm Platform Size: 1800mm*1000mm
Lifting Power: 1.5Kw Lifting Time: 60s
Measurement: 1950*1200*1505mm Weight: 1300kg
High Light:

scissor lift mobile

,

mobile aerial work platform

500Kg 8 Meters Hydraulic Lift with Extension Platform for Work Shop





Quick Detail:



Name Mobile Scissor Lift Brand Name CHEN LIFT
Loading Capacity 500Kg Platform Height 8m
Platform Size 1800mm*1000mm Color Red Color or Optional
Lifting Power 1.5Kw Power Supply AC/DC
Extension Platform Length 1m
Loading Capacity on Extension Platform
100kg





Description:



Mobile Scissor lifts with Extension Platform are used to provide temporary access for contractors to high, inaccessible areas on a variety of job sites such as maintenance, construction work or emergency access by firefighters. They are designed to lift limited weights and capable of being fully operated by a single person. If the other working place is just 1m away from the current working site, it is unnecessary for you to lower down the platform and then move it, you can just extend the platform and stand on the extension platform to work, this design can bring a lot of convenience to the operator .



The scissor structure enables reliable stability when the lifts rising up, the broad platform and the high loading capacity get the aerial working more efficient and more safely.





Main Features:



1. Pointing control of lifting up and down.

2. Manganese steel lifting arm in high strength with rectangle shape

3. Anti-skid floor in platform

4 The control panels are available on the platforms and ground.

5. Fine grinding cylinder in good sealing performance

6. Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas.





Safety Precaution:



1. The operation voltage on the platform is 24V

2. Emergency stop button on the platform and ground

3. Auxiliary platform lowering

4. Telescopic legs on the chassis

5. Hose burst valve safety

6. Rain-proof design electric cabinet

7. Fence on the platform





Major Parameters

  • Model:                          SJY0.5-8
  • Loading Capacity        500kg
  • Maximum Height         8000mm
  • Minimum Height          1505mm
  • Platform Size               1800*1000mm
  • Lifting Power               1.5kw
  • Power Voltage             1phase/220V/50HZ
  • Lifting Time                  60s
  • Cylinder                       Ф100(2Pcs)
  • Gear Pump                  6ml/r
  • Total Weight                1300kg
  • Measurement              1950*1200*1505mm



Configurations:

  • Electric system: Schneider contactor, SANLICO button, CHNT electrical
  • Hydraulic System: Hycman brand power pack ,NOK sealing
  • Scissor Arm Support: Hi-strength Manganese steel rectangle tube Q345 B
  • Platform Surface : Antiskid checkered plate
  • Tire: Ø400-8 Inflated tires
  • High-pressure Oil Pip: Double wire hydraulic intensifier rubber hose



Optional Configuration:

  • Power Supply: 3phases/380V/50HZ; DC 24V ; manual pump
  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
  • Extension Platform
  • Rubber Solid Tire
  • Flame Proof Control Cabinet



Applications:



1. Site: Work Shop, Theatre, Hospital, Library, Restaurant, Hotel Exhibition Hall etc.

2. Aerial Working Purpose: machine maintenance, painting, cleaning etc.





Why to choose CHEN LIFT Mobile Scissor Lift?

· High Quality

· Reasonable Price

· Good after Service

· 1 Year Warranty

· More Than 10 Years Experience





Communication with Customers



A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

B: The main difference is from the structure and the material

The scissor lift is in scissor structure with steel material

The aerial work platform is in mast structure with aluminum material



A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

1.Strict quality control system on the whole process of production

2.Imported key arts to ensure the high quality of our products

3.Advanced equipment and tools for examination and quality control

4.100% strict examining products before shipment

5.All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



A: What is the delivery time for your goods?

B: it is 30days after order confirmation



A: What spare parts that you can offer?

B: We provide following spare parts freely for your maintenance of the machine:

Item Quantity
Fuse 3
"O" Rubber Seals Φ11 3
Wrench 1
Pressure Oiler 1
Cross Screwdriver 1
Straight Screwdrive 1



A: How long is your quality guarantee period?

B: We have one year warranty.
