Home ProductsMini Scissor Lift

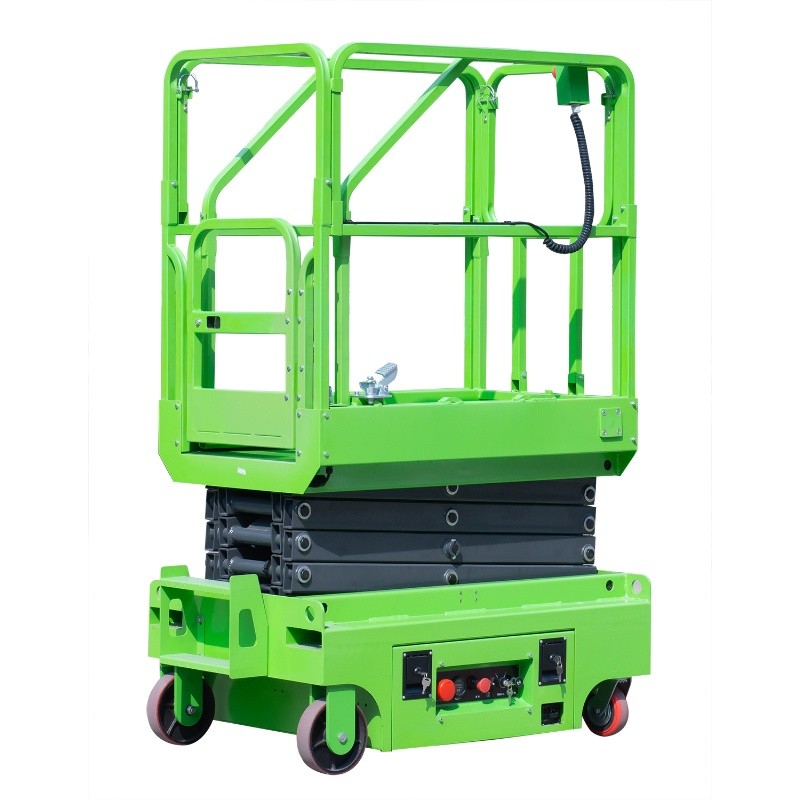

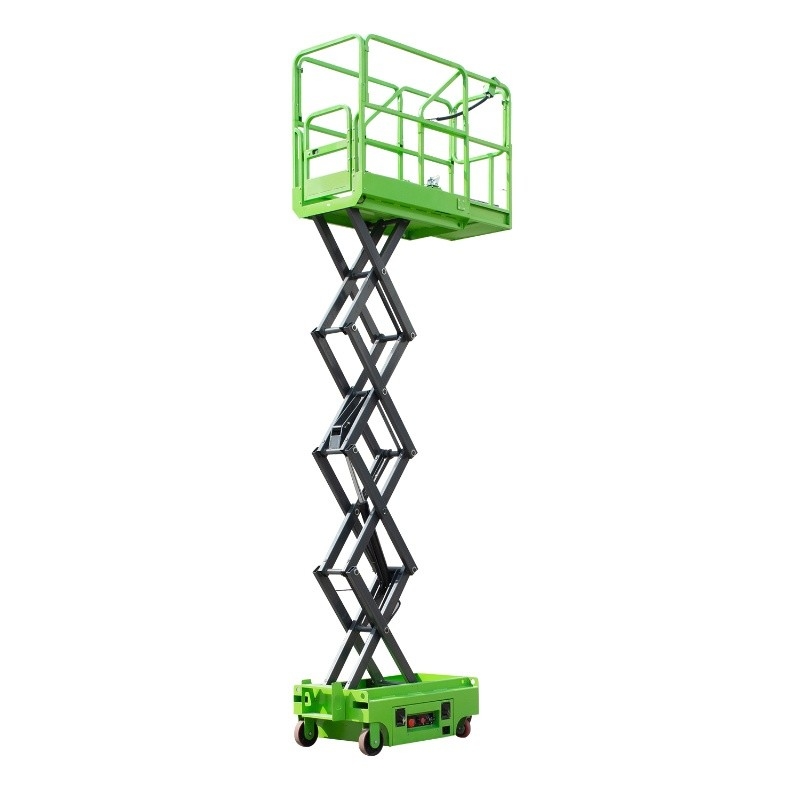

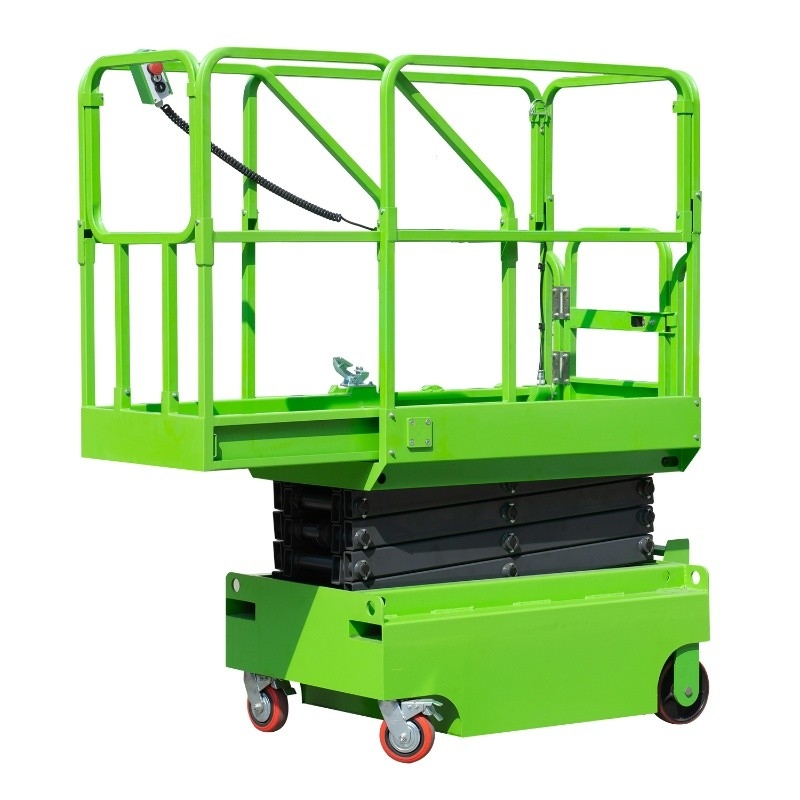

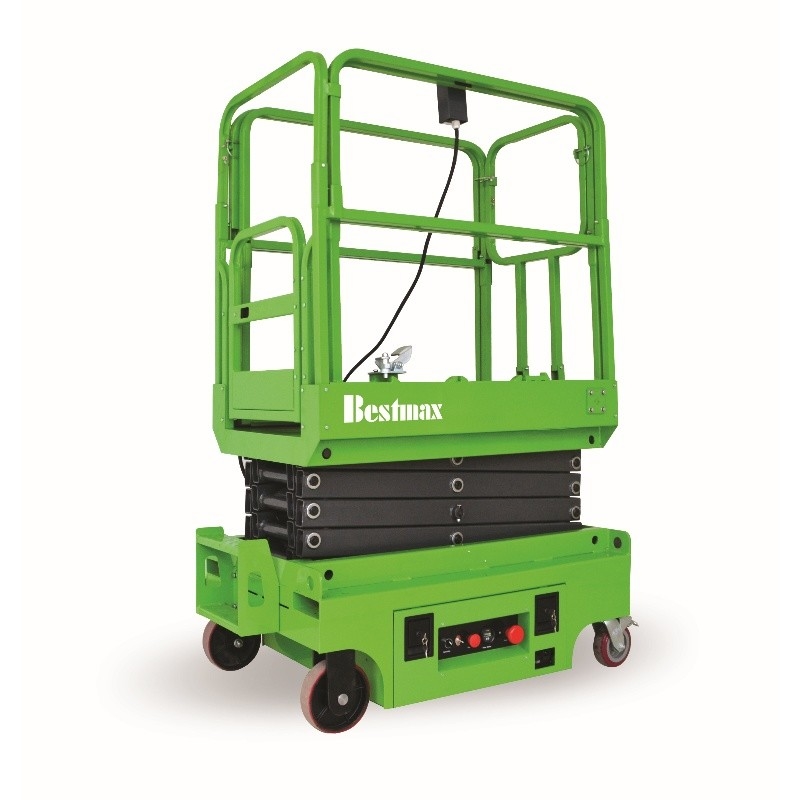

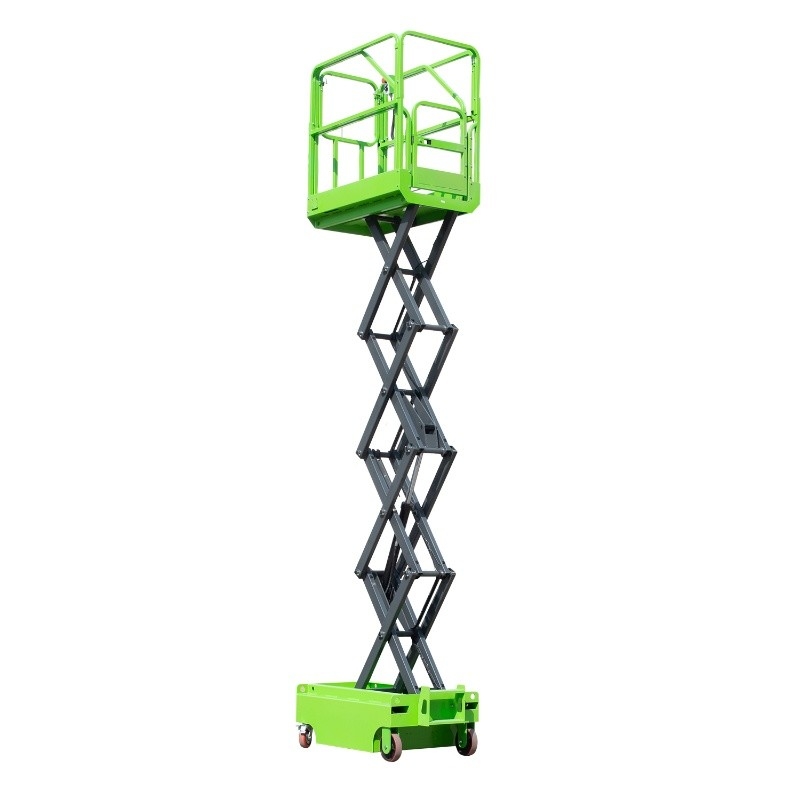

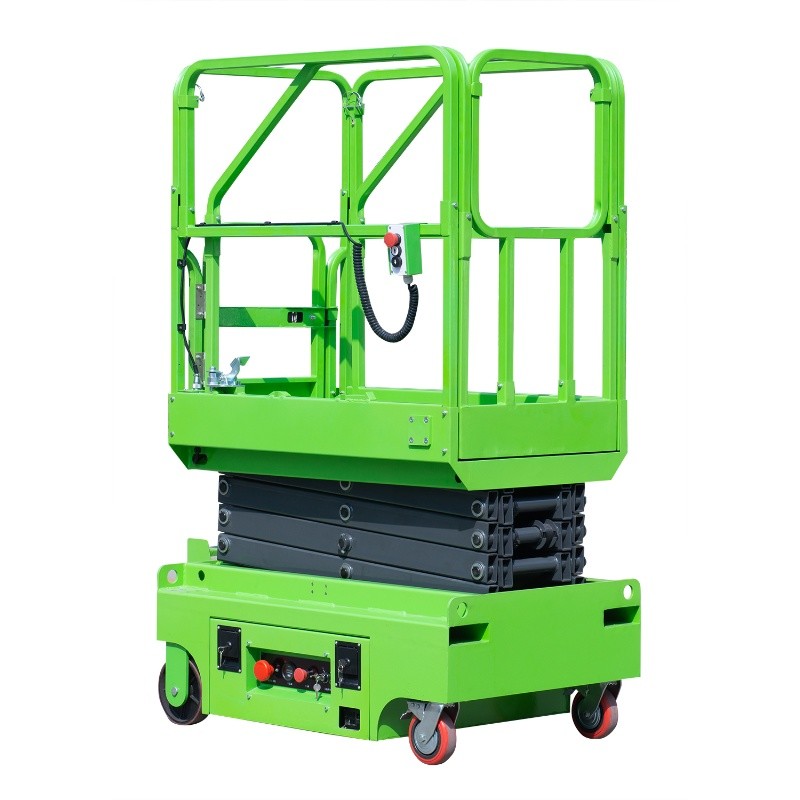

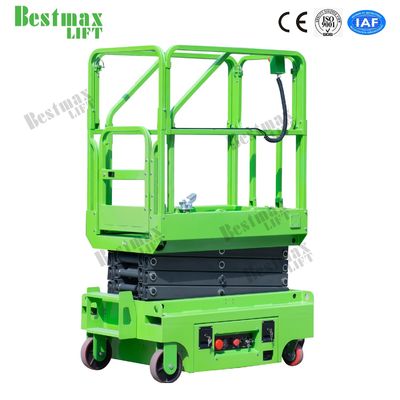

3m Platform Height Mini Scissor Lift Manual Pushing Aerial Work Platform With CE

3m Platform Height Mini Scissor Lift Manual Pushing Aerial Work Platform With CE

    • 3m Platform Height Mini Scissor Lift Manual Pushing Aerial Work Platform With CE
    • 3m Platform Height Mini Scissor Lift Manual Pushing Aerial Work Platform With CE
  • 3m Platform Height Mini Scissor Lift Manual Pushing Aerial Work Platform With CE

    Product Details:

    Place of Origin: CN
    Brand Name: Bestmax Lift
    Certification: ISO; CE; IPAF
    Model Number: MK300

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: USD 1900-3900 unit
    Packaging Details: Packed with Pallet, Wrapped with Film
    Delivery Time: Within 15 days after confirmed the order
    Payment Terms: L/C T/T and more
    Supply Ability: 3000 units per month
    Contact Now
    Detailed Product Description
    Material: Manganese Steel Load Capacity: 240 Kg
    Max Platform Height: 3 M Max Working Height: 5m
    Platform Size: 1.15*0.6 M Motor Power: 0.8 Kw



    3m Platform Height Mini Scissor Lift Manual Pushing Aerial Work Platform with CE



    Product Description
    Mini Scissor Lift has compact design structure(without outrigger, so the preparation time will be less, and enhance the working efficiency) less weight(can push easily by manpower)
    The operators can operate the machine up&down on platform and ground. (It lifts by battery power)

    Scissor lift platform is easily operated by the control box both on the platform and ground. The supporting legs can guarantee the stability of the lift. More safety for workers working on the platform with the guardrail. Besides the AC power, you also can add motorized device for assist walking.



    Specification
    Model MK300 MK390
    Load 240 kg 240 kg
    Platform Height 3 m 3.9 m
    Working Height 5 m 5.9 m
    Platform Size 1.15* 0.6 m (No Extension)
    1.15* 0.7 m (With Extension)
    1.15* 0.6 m (No Extension)
    1.15* 0.7 m (With Extension)
    Optional Configuration:
    Extension Platform
    Extension Length: 0.55 m
    Extension Load: 100 kg
    Extension Length: 0.55 m
    Extension Load: 100 kg
    Lift Motor 12v/0.8 kw 12v/0.8 kw



    3m Platform Height Mini Scissor Lift Manual Pushing Aerial Work Platform With CE



    Main Feature
    1.Pointing control of lifting up and down.
    2.Manganese steel lifting arm in high strength with rectangle shape
    3.Anti skid floor in platform
    4 The control panels are available on the platforms and ground.
    5. Fine grinding cylinder in good sealing performance
    6.Neatly folding guardrails make it easy to maneuver through doorways, into elevators and throughout other height-restricted areas.

    Safety Precautions
    1.The operation voltage on the platform is 24V
    2.Emergency stop button on the paltform and ground
    3.Auxiliary platform lowering
    4.Hose burst valve safety
    5.Rain-proof design electirc cabinet
    6. Fence on the platform



    3m Platform Height Mini Scissor Lift Manual Pushing Aerial Work Platform With CE





    3m Platform Height Mini Scissor Lift Manual Pushing Aerial Work Platform With CE

    Application for Scissor Lift
    Scissor lift platform can be used in the factory, warehouse, public places , stations and so on.
    It provides you a good choice for aerial working.



    Factory

    Located at Suzhou City Jiangsu Province(we are the largest manufacturer in this line in Jiangsu)
    Founded in 2001
    A standardized modern factory of 11,000 square meters
    Professional organization in manufacturing, sales, services and refurvishment of hydraulic lifting machinery and aerial working platform
    Established distributor relationship with customers from over 30 countries and regions in Southeast Asia, Middle East, South America,Europe and Africa



    3m Platform Height Mini Scissor Lift Manual Pushing Aerial Work Platform With CE



    3m Platform Height Mini Scissor Lift Manual Pushing Aerial Work Platform With CE



    Our Service
    1. We can design the customized the machines based on your requirement.
    2. After knowing your detailed need, the right models will be recommened to you with good price.
    3. Shipment can be arranged from our port to your destination port.
    4. Opetion video can be sent to you if needed.
    5. Parts of machines can be sent to you by express within 7 days if needed.
