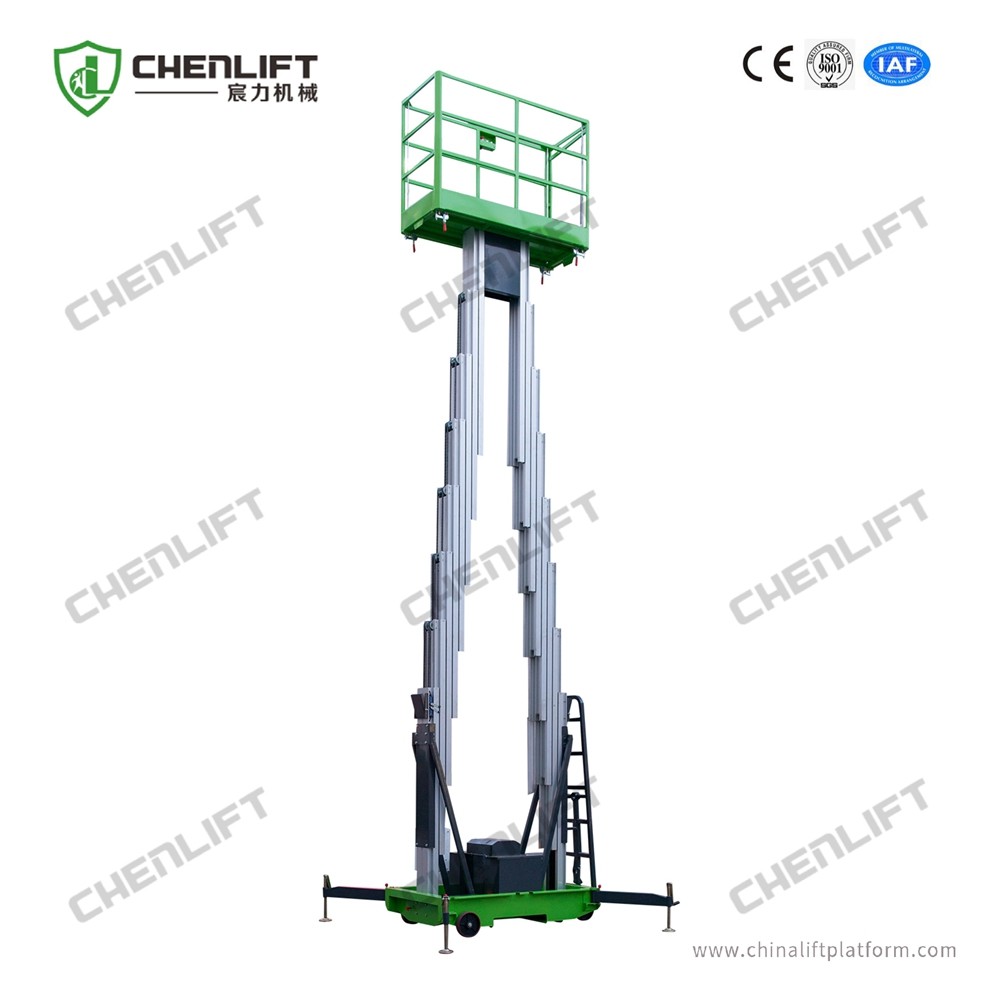

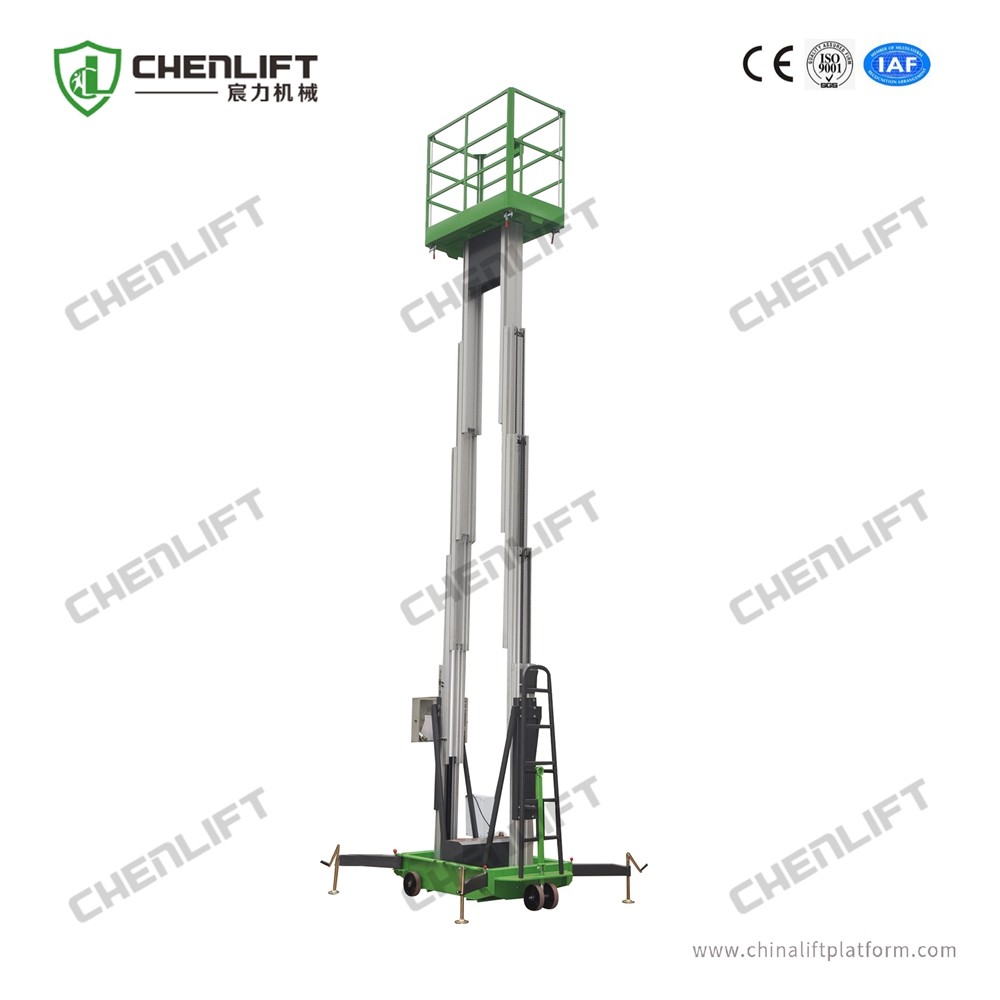

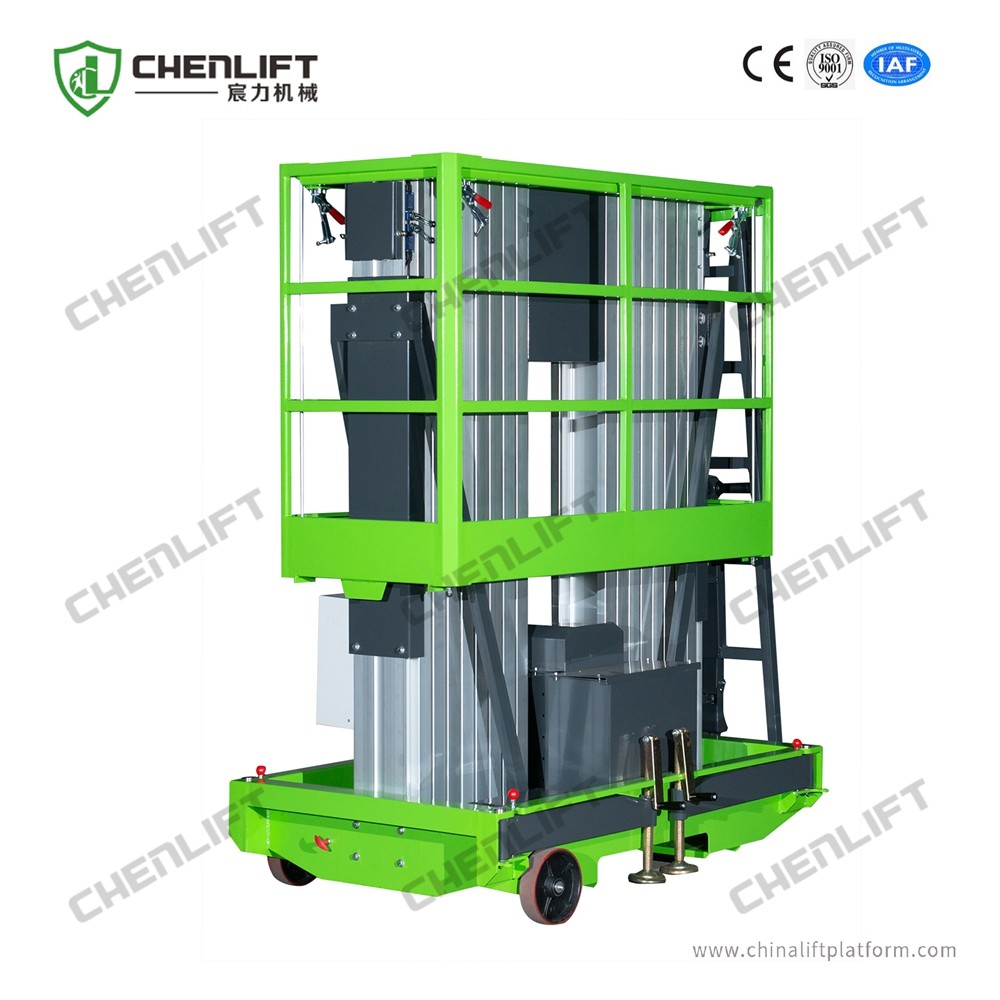

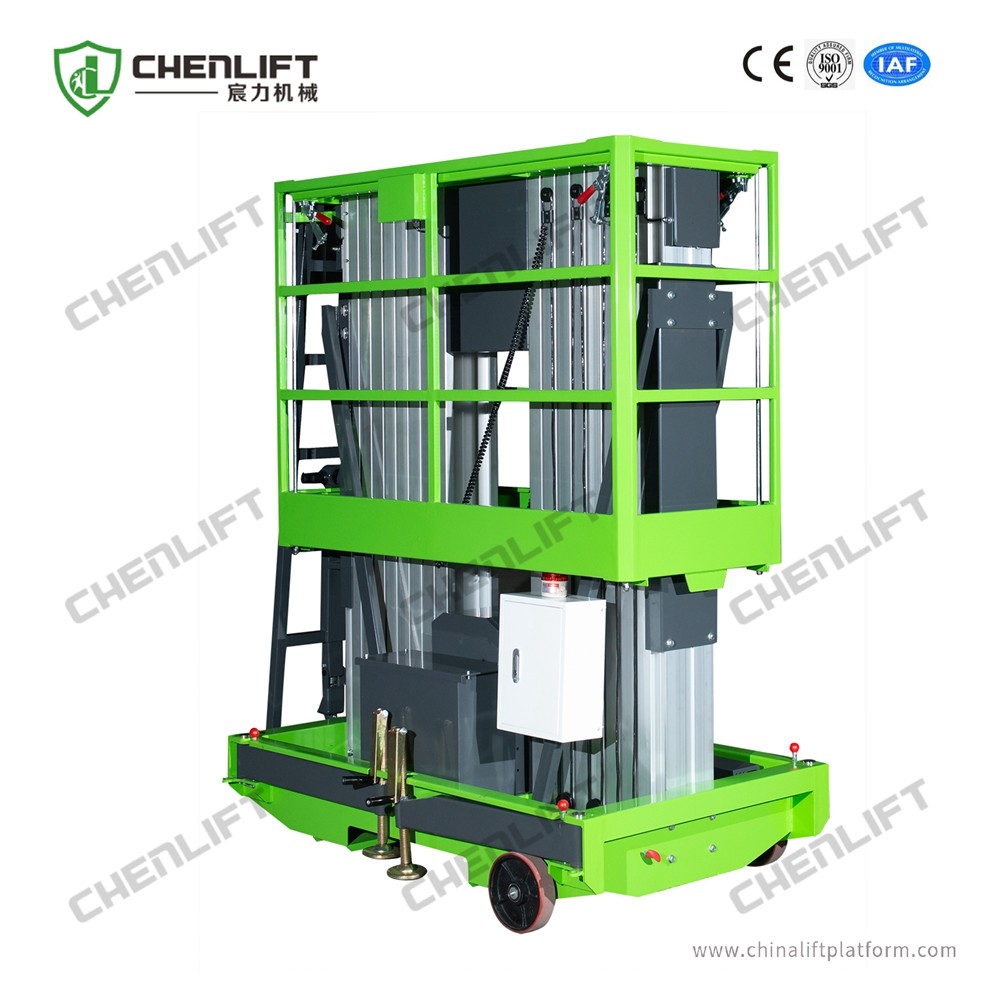

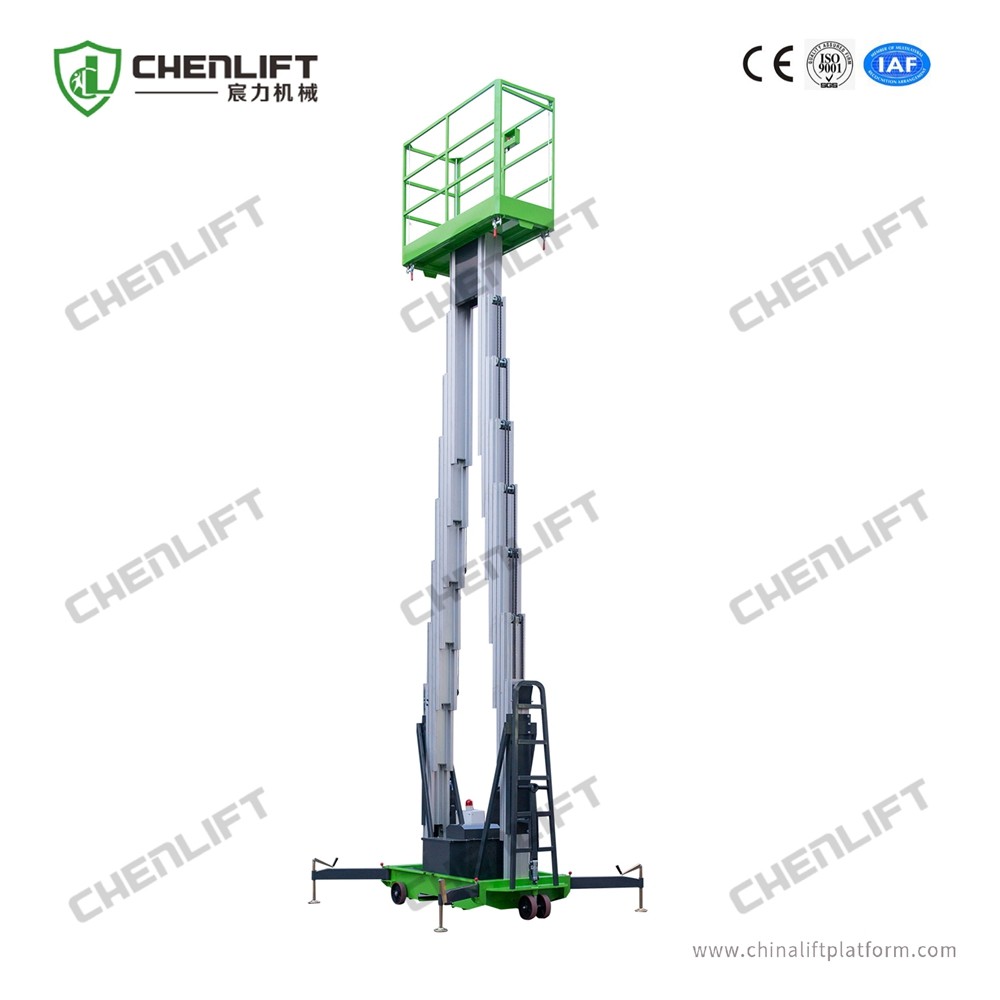

Double Mast 150kg Loading Aerial Work Platform With 14M Platform Height

Double Mast 150kg Loading Aerial Work Platform With 14M Platform Height

  • Double Mast 150kg Loading Aerial Work Platform With 14M Platform Height
  • Double Mast 150kg Loading Aerial Work Platform With 14M Platform Height
  • Double Mast 150kg Loading Aerial Work Platform With 14M Platform Height
  • Double Mast 150kg Loading Aerial Work Platform With 14M Platform Height
  • Double Mast 150kg Loading Aerial Work Platform With 14M Platform Height
  • Double Mast 150kg Loading Aerial Work Platform With 14M Platform Height
Double Mast 150kg Loading Aerial Work Platform With 14M Platform Height
Product Details:
Place of Origin: China
Brand Name: CHEN LIFT
Certification: CE
Model Number: GTWY14-200 (ME1400-2)
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: PVC Film Wrapped in Pallets or Wooden Case
Delivery Time: 30 days after order confirmed
Payment Terms: L/C, T/T
Supply Ability: 1000 units/ month
Contact Now
Detailed Product Description
Loading Capacity: 150kg Platform Height: 14m
Working Height: 16m Platform Size: 1.52*0.62m
Motor Power: 1.5kw Lifting Time: 112s
Overall Size: 1.90*1.16*2.15m Outrigger Footprint: 2.36*2.33m
Weight: 904kg Color: Customizable
High Light:

mobile aerial work platform

,

hydraulic aerial work platform

Double Mast 150kg Loading Aerial Work Platform With 14M Platform Height



Quick Detail:



Name Mobile Aerial Work Platform Brand Name CHEN LIFT
Loading Capacity 150Kg Platform Height 14m
Platform Size 1.52*0.62m Color Green or Optional
Motor Power 1.5Kw Power Supply AC/DC





Descriptions



This 14m Double Mast Aerial Work Platform is more reliable and it can load 150Kg.

This machine has the advantage of is light weight , universal wheels , two control panel---ground contrl and platform control .





Applications:



It is mainly used for the installation and maintenance of the narrow spaces such as star hotels, modern workshops, business hall, hotels, lobby, restaurant, railway stations, exhibition hall and shopping malls, it is a good helper for the equipment maintenance, paint decoration; Easily going through the regular doors and elevators, of low energy consumption, no pollution, no damage to the grounds. The lifting height ranges from 14m to 16m and lifting capacity is 150kg.





Main Features:



1. Most rigid aluminum alloy profile

2. Auxiliary platform lowering

3. Multi-guide pulley on mast

4. Durable base system

5. Chassis with level gauge

6. DC working power on the platform

7. Easily rolls through a narrow space

8. Emergency stop button

9. Over load protection

10 .Built-in pressure release valve

11. Dual activated up/down switch

12. Locking Key Switch

13. Optional extended platform

14. Entry ladder



Major Parameter of Single Mast Aluminum Aerial Work Platform

Model NO. Working Height (m) Loading Capacity (Kg) Platform
Size (m)
Lifting
Power (Kw)
Weight
(Kg)
Dimension (m)
GTWY6-100 8 130 0.60x0.55 0.75 260 1.38x0.80x1.65
GTWY8-100 10 130 0.60x0.55 0.75 300 1.38x0.80x1.98
GTWY9-100 11 130 0.60x0.55 0.75 326 1.44x0.85x1.98
GTWY10-100 12 130 0.60x0.55 0.75 400 1.44x0.85x1.98


Major Parameters of Double Mast Aluminum Aerial Work Platform

Model NO. Working Height(m) Loading Capacity(Kg) Platform Size(m) Lifting Power (Kw) Weight(Kg) Dimension(m)
GTWY6-200 8 200 1.18x0.62 1.1 380 1.38x0.85x2.00
GTWY8-200 10 200 1.18x0.62 1.1 480 1.38x0.95x2.00
GTWY9-200 11 200 1.38x0.62 1.1 548 1.58x0.95x2.00
GTWY10-200 12 200 1.38x0.62 1.1 610 1.68x0.95x2.00
GTWY12-200 14 200 1.48x0.62 1.1 650 1.68x0.95x2.00
GTWY14-200 16 150 1.48x0.62 1.1 650 1.68x0.95x2.00


Major Parameters of Triple Mast Aluminum Aerial Work Platform

Model NO. Working Height(m) Loading Capacity(Kg) Platform Size(m) Lifting Power (Kw) Weight(Kg) Dimension(m)
GTWY10-300 12 300 1.40x0.88 2.2 900 1.78x1.10x2.05
GTWY12-300 14 300 1.40x0.88 2.2 950 1.78x1.10x2.05
GTWY14-300 16 250 1.53x0.88 2.2 980 1.90x1.10x2.32


Major Parameters of Quadruple Mast Aluminum Aerial Work Platform

Model NO. Working Height(m) Loading Capacity(Kg) Platform Size(m) Lifting Power (Kw) Weight(Kg) Dimension(m)
GTWY10-400 12 300 1.40x0.80 2.2 950 1.78x1.25x2.05
GTWY12-400 14 300 1.40x0.80 2.2 980 1.78x1.25x 2.32
GTWY14-400 16 200 1.40x0.80 2.2 1000 1.90x1.25x2.32
GTWY16-400 18 200 1.40x0.80 2.2 1100 2.28x1.35x2.82


Major Parameters of Six Mast Aluminum Aerial Work Platform

Model NO. Working Height(m) Loading Capacity(Kg) Platform Size(m) Lifting Power (Kw) Weight(Kg) Dimension(m)
GTWY16-420 18 150 1.45x0.90 2.2/1.1 1200 2.28x1.35x2.18
GTWY18-420 20 150 1.45x0.90 2.2/1.1 1400 2.28x1.35x2.42
GTWY20-420 22 150 1.55x0.90 2.2/1.1 1780 2.50x1.40x2.62
GTWY22-420 24 150 1.55x0.90 2.2/1.1 2000 3.00x1.60x2.82

Optional Configuration:

  • Power Supply: Standard:AC version - 220V/110V, 50/60HZ
  •                         Optional:DC version - 2x12V / 100AH battery
  •                         Optional:AC & DC versions
  • Hydraulic Power Pack: Italy brand: Hydrapp/ Swiss brand: Bucher
  • Extension Platform
  • Flame proof electric cabinet

Double Mast 150kg Loading Aerial Work Platform With 14M Platform Height 0

Company Introduction
As a subsidiary company of Bestmax Heavy Industry Company Limited, Chenlift (Suzhou) Machinery Co Ltd. Is a suzhou-based world-wide supplier of lifting equipment with over 20 years of experience in the lifting industry, we have the knowledge to assist you in acquiring your next lifting equipment.



Competitive Advantage:

  • High Quality
  • Reasonable Price
  • Good after Service
  • 1 Year Warranty
  • More Than 10 Years Experience

Communication with Customers



A: What is the difference from mobile scissor lift and mobile aluminum aerial work platform?

B: The main difference is from the structure and the material

The scissor lift is in scissor structure with steel material

The aerial work platform is in mast structure with aluminum material



A: How is that for quality control in your factory?

B: The quality control is strictly in accordance with ISO9001 quality management system. When the products are finished, the inspection is 100% executed strictly

1. Strict quality control system on the whole process of production

2. Imported key arts to ensure the high quality of our products

3. Advanced equipment and tools for examination and quality control

4. 100% strict examining products before shipment

5. All the quality complaints and improvement requirements are always studied seriously, if reasonable, put into practice immediately.



A: What is the delivery time for your goods?

B: it is 30days after order confirmation



A: What spare parts that you can offer?

B: Find the list below which we are offering with the machine when shipment for free:

Item Model Quantity
O-shape rubber ring 40×3.1 4
O-shape rubber ring 11×1.9 2
O-shape rubber ring 40×30×6 1
Spanner   1
screwdriver 4# 1



A: How long is your quality guarantee period?

B: We have one year warranty.
